Yamaha F200CET - Network Wiring Diagrams

6-12
Coolant press. sensor (OP)
FUEL TANK
Single-hub with resistor
Trim sensor
NMEA
0183
Fuel injected F30 – F/FL200
Fuse (10A)
(+)
(GND)
GPS
SPEED/FUELTACH
Speed sensor
ECM
Multi-hub
Resistor

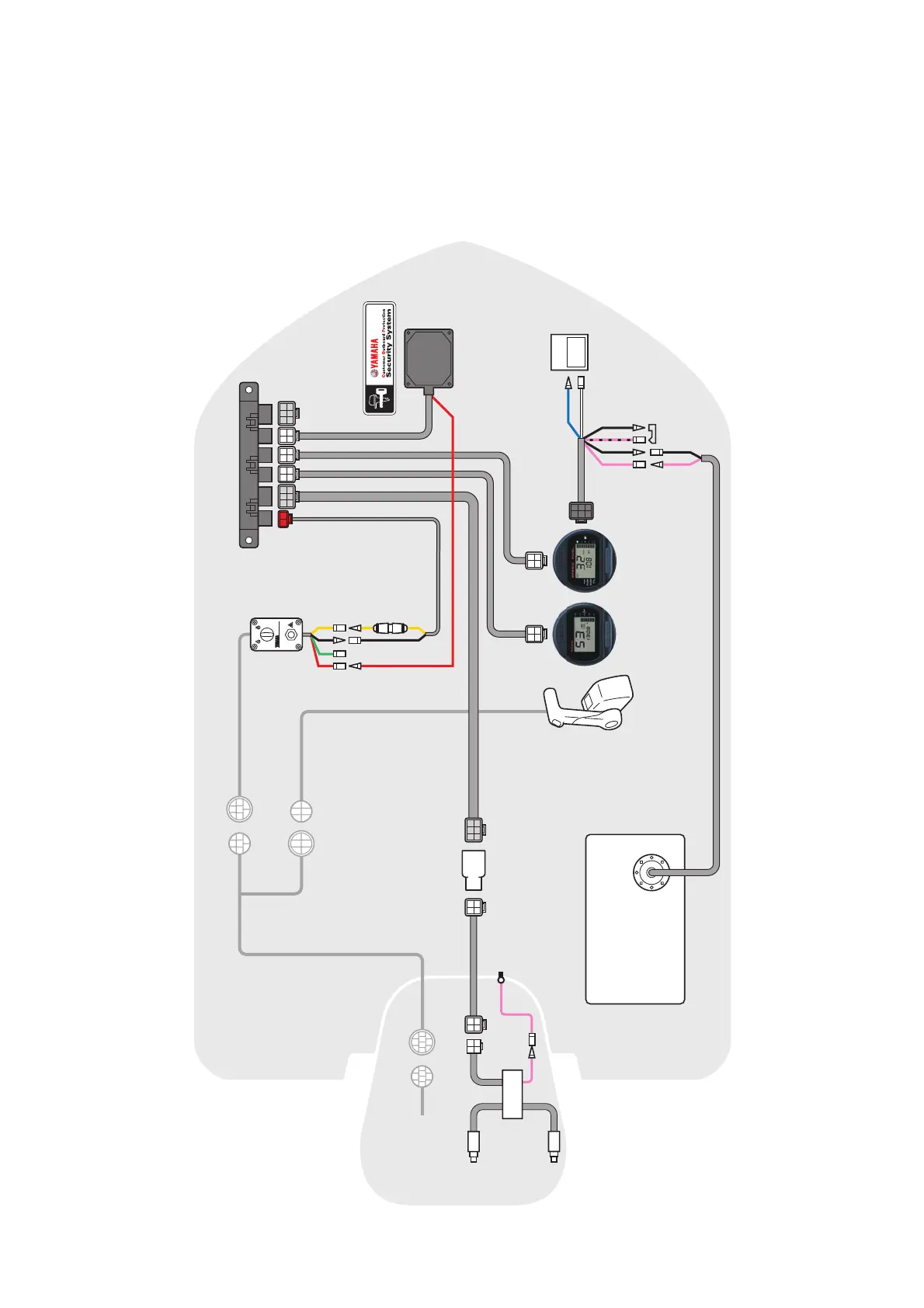

NETWORK WIRING DIAGRAMS
FUEL INJECTED F30-F250 [Mechanical RC] & HPDI ENGINES
SINGLE ENGINE APPLICATION
