SPEEDOMETER

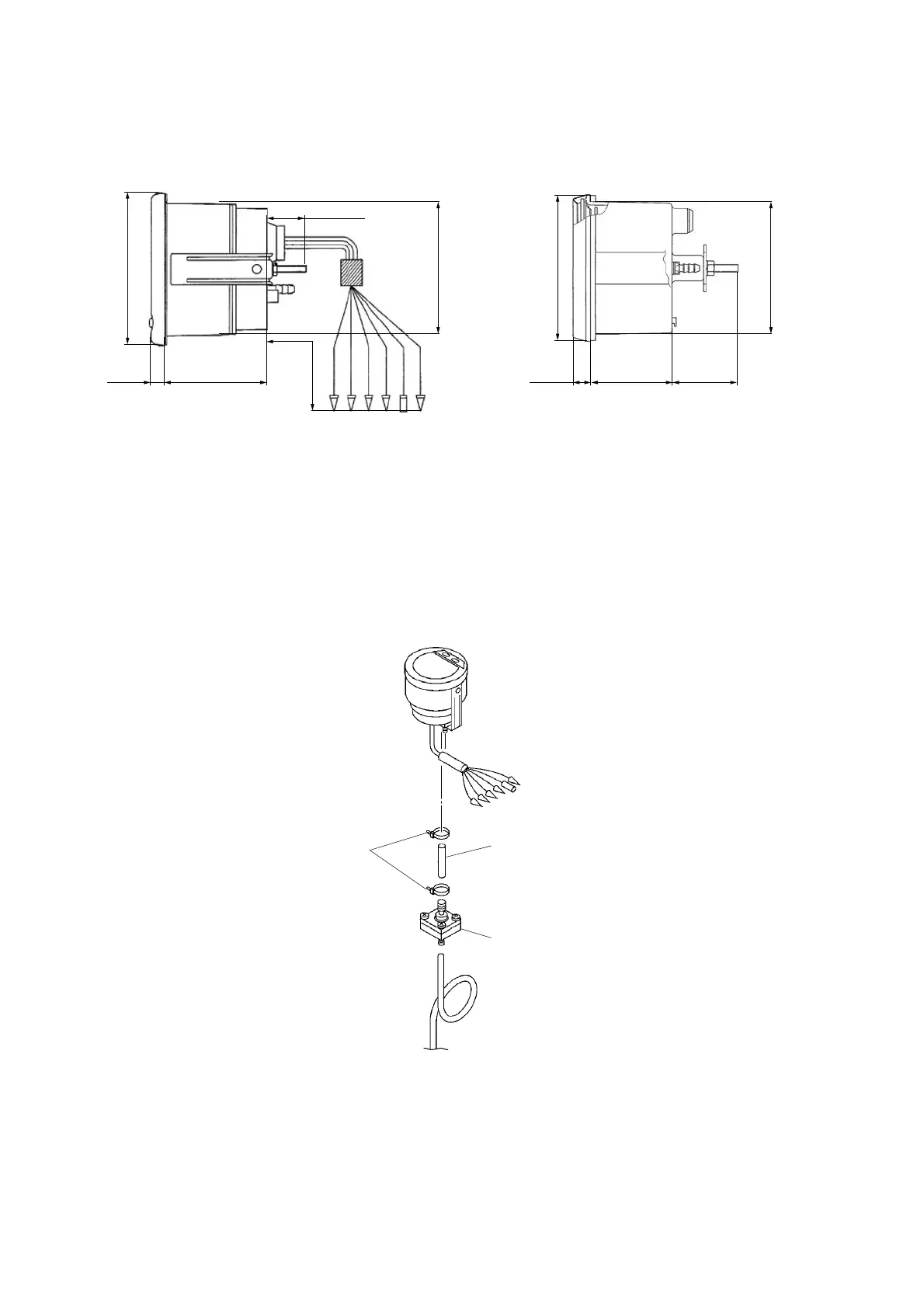

SPEEDOMETER DIMENSIONS

* A 6 m (19 ft) water tube (P/N: 688-83557-00) is included in all speedometer units (except digital speedome-

ter unit P/N: 6Y5-83570-S6).

WATER PRESSURE DAMPER (OP)

Installing the water pressure damper between the gauge and water tube is recommended under fol-

lowing condition.

• To reduce a risk if water has leaked at connector end causing the gauge damage.

• The pointer of analog gauge is wiggled if water pressure pulsates.

93 (3.66)

11.2

(0.44)

(2.05)

41.9

(1.65)

84.5 (3.33)

97 (3.82)

8.5

(0.33)

65.5

(2.59)

210

(8.27)

25 (0.98)

RYBL WB

84.5 (3.33)

Digital Analog

mm (in.)

Clamp

90465-11M10

Water Pressure Damper

6Y5-83728-00

ter Tube

6Y5-83557-31
