8
Basic components
EMU25795

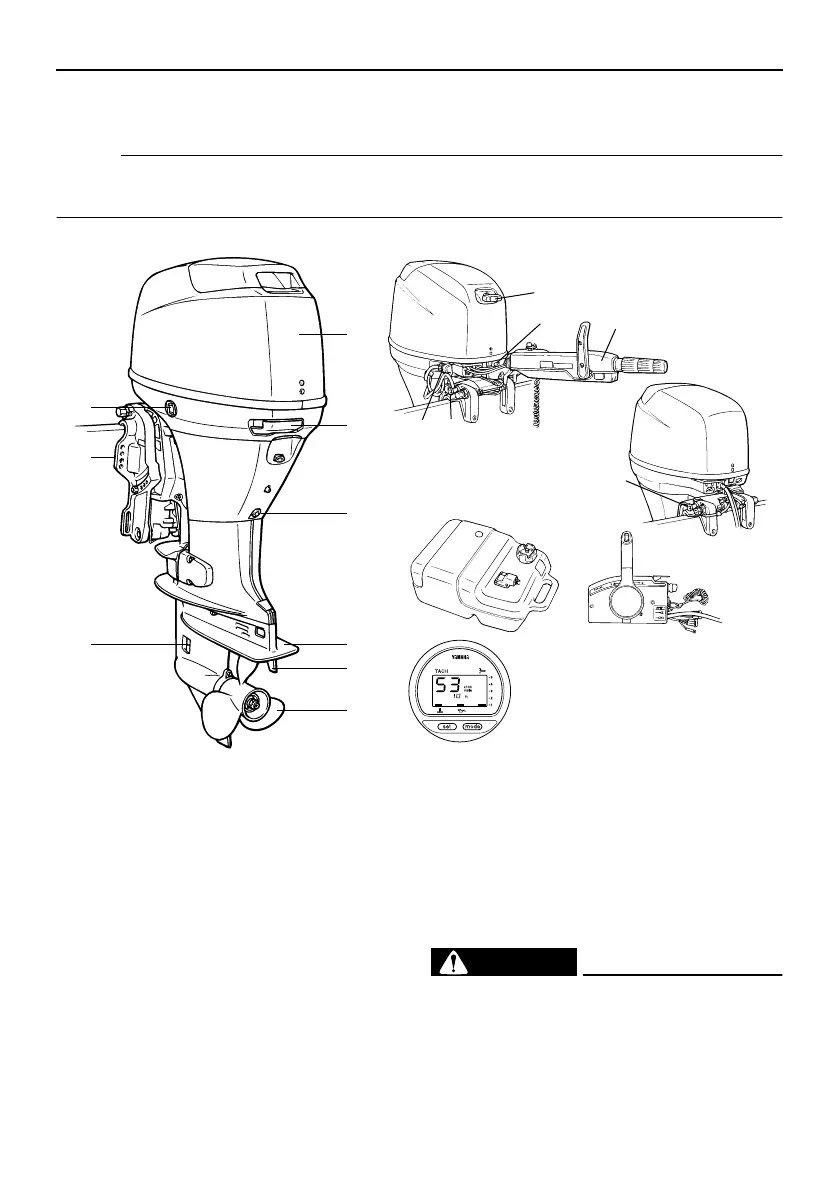

Main components
NOTE:
* May not be exactly as shown; also may not be included as standard equipment on all mod-
els.
F30A, F40B
EMU25802
Fuel tank
If your model was equipped with a portable
fuel tank, its function is as follows.
WARNING
EWM00020
The fuel tank supplied with this engine is
its dedicated fuel reservoir and must not
be used as a fuel storage container. Com-
mercial users should conform to relevant
13
1
2
3
4
5
9
8
7
6
15
17
16
10
11
12
13
14
ZMU04034
1. Top cowling
2. Top cowling lock lever
3. Drain screw
4. Anti-cavitation plate
5. Trim tab (anode)
6. Propeller
7. Cooling water inlet
8. Clamp bracket
9. Power trim and tilt switch*
10. Manual starter handle*
11. Warning indicator(s)
12. Tiller handle*
13. Tilt support knob
14. Flushing device
15. Fuel tank
16. Remote control box (side mount type)*
17. Digital tachometer*
To Next Page
