Maintenance
49
EMU28940

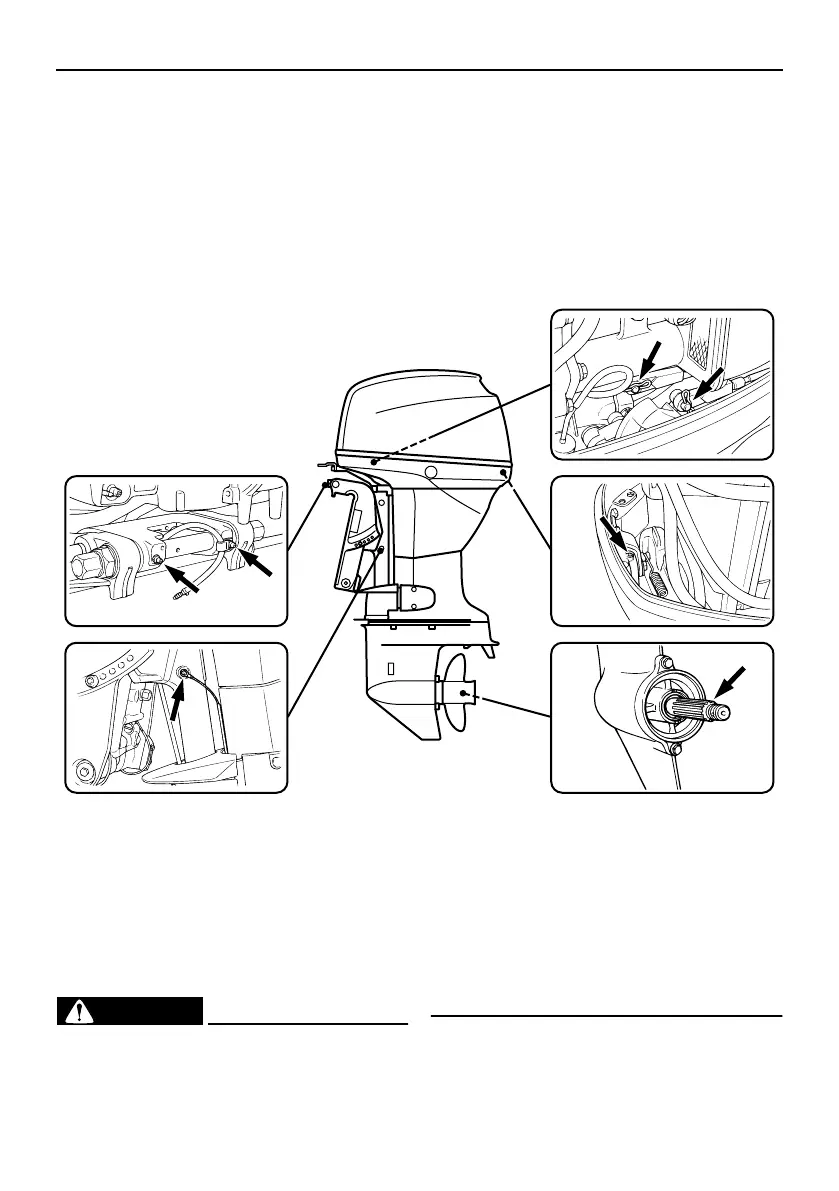

Greasing
Yamaha grease A (water resistant grease)
Yamaha grease D (corrosion resistant grease; for propeller shaft)
F30A, F40B
EMU28951
Cleaning and adjusting spark plug
W
ARNING
EWM00560
When removing or installing a spark plug,
be careful not to damage the insulator. A
damaged insulator could allow external
sparks, which could lead to explosion or
fire.
The spark plug is an important engine com-
ponent and is easy to inspect. The condition
ZMU04081
53
55
Table of Contents
Table of Contents
4
General Information
6
Identification Numbers Record
6
Outboard Motor Serial Number
6
Key Number
6
EC Label
6
Emission Control Information
7
SAV Models
7
Safety Information
7
Important Labels
8
Warning Labels
8
Caution Labels
9
Fueling Instructions
9
Gasoline
10
Engine Oil
10
Battery Requirement
10
Battery Specifications
10
Without a Rectifier or Rectifier Regulator
10
Propeller Selection
11
Start-In-Gear Protection
11
Basic Components
13
Main Components
13
Fuel Tank
13
Fuel Joint
14
Fuel Gauge
14
Fuel Tank Cap
14
Air Vent Screw
14
Remote Control
14
Remote Control Lever
14
Neutral Interlock Trigger
15
Neutral Throttle Lever
15
Tiller Handle
15
Gear Shift Lever
15
Throttle Grip
16
Throttle Indicator
16
Throttle Friction Adjuster
16
Engine Stop Lanyard Switch
17
Engine Stop Button
17
Manual Starter Handle
18
Main Switch
18
Power Trim and Tilt Switch on Remote Control or Tiller Handle
18
Power Trim and Tilt Switch on Bottom Engine Cowling
18
Trim Tab with Anode
19
Tilt Lock Mechanism
19
Tilt Support Knob
20
Top Cowling Lock Lever(S) (Turn Type)
20
Flushing Device
20
Warning Indicator
20
Digital Tachometer
21
Low Oil Pressure Warning Indicator
21
Overheat Warning Indicator (Digital Type)
21
Trim Meter (Digital Type)
22
Hour Meter (Digital Type)
22
Warning System
22
Overheat Warning
22
Low Oil Pressure Warning
23
Operation
25
Installation
25
Mounting the Outboard Motor
25
Breaking in Engine
26
Procedure for 4-Stroke Models
26
Preoperation Checks
26
Fuel
26
Controls
27
Engine
27
Checking the Engine Oil Level
27
Filling Fuel
27
Operating Engine
28
Feeding Fuel (Portable Tank)
28
Starting Engine
29
Warming up Engine
31
Manual Start and Electric Start Models
31
Shifting
32
Forward (Tiller Handle and Remote Control Models)
32
Reverse (Automatic Reverse Lock and Power Trim and Tilt Models)
33
Reverse (Manual Tilt and Hydro Tilt Models)
33
Stopping Engine
35
Procedure
35
Trimming Outboard Motor
35
Adjusting Trim Angle
36
Adjusting Trim Angle for Hydro Tilt
37
Models
37
Adjusting Boat Trim
37
Tilting up and down
38
Procedure for Tilting up (Hydro Tilt Models)
38
Procedure for Tilting up
39
Procedure for Tilting down (Manual and Hydro Tilt Models)
40
Procedure for Tilting down
41
Cruising in Shallow Water
42
Hydro Tilt Models
42
Power Trim and Tilt Models / Power Tilt Models
43
Cruising in Other Conditions
43
Maintenance
45
Specifications
45
Transporting and Storing Outboard Motor
46
Storing Outboard Motor
47
Procedure
47
Lubrication (Except Oil Injection Models)
48
Battery Care
49
Flushing Power Unit
49
Cleaning the Outboard Motor
50
Checking Painted Surface of Motor
50
Periodic Maintenance
51
Replacement Parts
51
Maintenance Chart
52
Maintenance Chart (Additional)
53
Greasing
54
Cleaning and Adjusting Spark Plug
54
Checking Fuel System
55
Checking Fuel Filter
56
Inspecting Idling Speed
56
Changing Engine Oil
57
Checking Wiring and Connectors
58
Exhaust Leakage
58
Water Leakage
59
Engine Oil Leakage
59
Checking Power Trim and Tilt System
59
Checking Propeller
59
Removing the Propeller
60
Installing the Propeller
60
Changing Gear Oil
61
Cleaning Fuel Tank
62
Inspecting and Replacing Anode(S)
62
Checking Battery (for Electric Start Models)
63
Connecting the Battery
64
Disconnecting the Battery
64
Checking Top Cowling
64
Coating the Boat Bottom
65
Trouble Recovery
66
Troubleshooting
66
Temporary Action in Emergency
69
Impact Damage
69
Replacing Fuse
69
Power Trim and Tilt will Not Operate
70
Starter will Not Operate
70
Emergency Starting Engine
71
Treatment of Submerged Motor
72
Procedure
72
