Operation
35
2. Disconnect the fuel line from the out-
board motor or close the fuel cock.

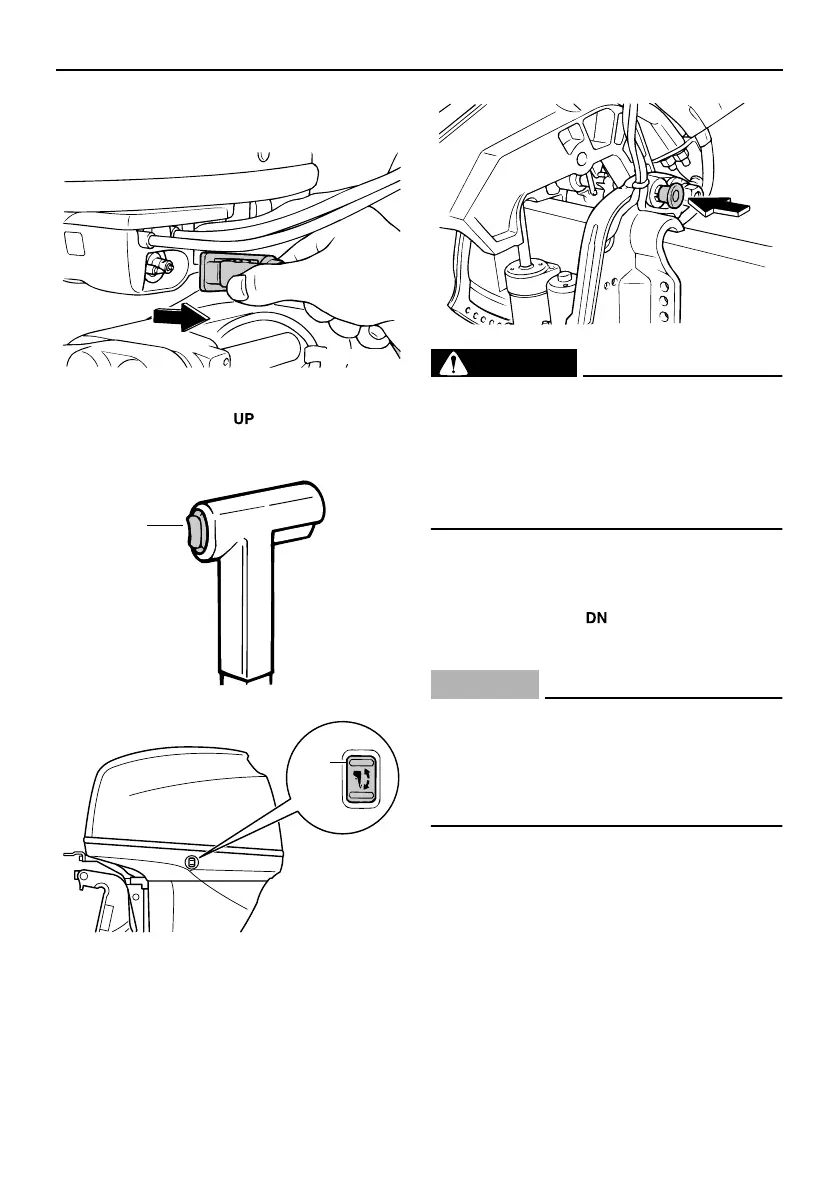

3. Press the power trim and tilt switch /
power tilt switch “” (up) until the out-
board motor has tilted up completely.
4. Push the tilt support knob into the clamp
bracket or pull the tilt support lever to-
ward you to support the engine.
WARNING
EWM00260
After tilting the outboard motor, be sure
to support it with the tilt support knob or
tilt support lever. Otherwise the outboard
motor could fall back down suddenly if oil
in the power trim and tilt unit loses pres-
sure.
5. Models equipped with trim rods: Once
the outboard motor is supported with the
tilt support lever, press the power trim
and tilt switch “” (down) to retract the
trim rods.
CAUTION:
ECM00250
Be sure to retract the trim rods complete-
ly during mooring. This protects the rods
from marine growth and corrosion which
could damage the power trim and tilt
mechanism.
EMU28041
Procedure for tilting down (manual
and hydro tilt models)
1. Release the tilt lock lever.
ZMU04066
UP
ZMU01935
UP
DN
UP
ZMU04067
ZMU04068
