Basic components
13
EMU26070

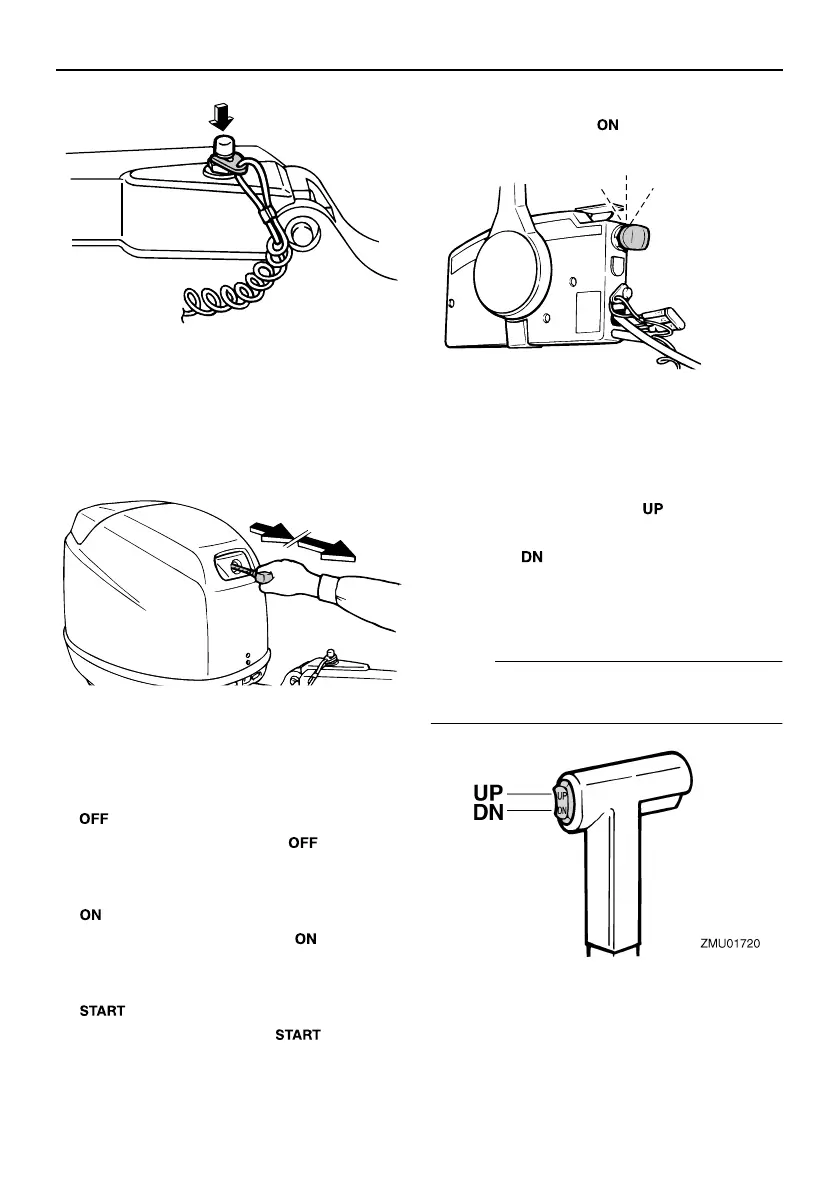

Manual starter handle
To start the engine, first gently pull the han-
dle out until resistance is felt. From that posi-
tion, then pull the handle straight out quickly
to crank the engine.
EMU26090
Main switch
The main switch controls the ignition system;
its operation is described below.
●
“”
(off)
With the main switch in the “” (off) posi-
tion, the electrical circuits are off, and the key
can be removed.
●
“”
(on)
With the main switch in the “” (on) posi-
tion, the electrical circuits are on, and the key
cannot be removed.
●
“”
(start)
With the main switch in the “” (start) po-
sition, the starter motor turns to start the en-
gine. When the key is released, it returns
automatically to the “” (on) position.
EMU26141
Power trim and tilt switch on remote
control or tiller handle
The power trim and tilt system adjusts the
outboard motor angle in relation to the tran-
som. Pressing the switch “” (up) trims the
outboard motor up, then tilts it up. Pressing
the switch “” (down) tilts the outboard mo-
tor down and trims it down. When the switch
is released, the outboard motor will stop in its
current position.
NOTE:
For instructions on using the power trim and
tilt switch, see pages 30 and 33.
EMU26151
Power trim and tilt switch on bottom
engine cowling
The power trim and tilt switch is located on
the side of the bottom engine cowling. Press-
ZMU03354
ZMU04037
ON
STARTOFF
ZMU03590
