Basic components
15

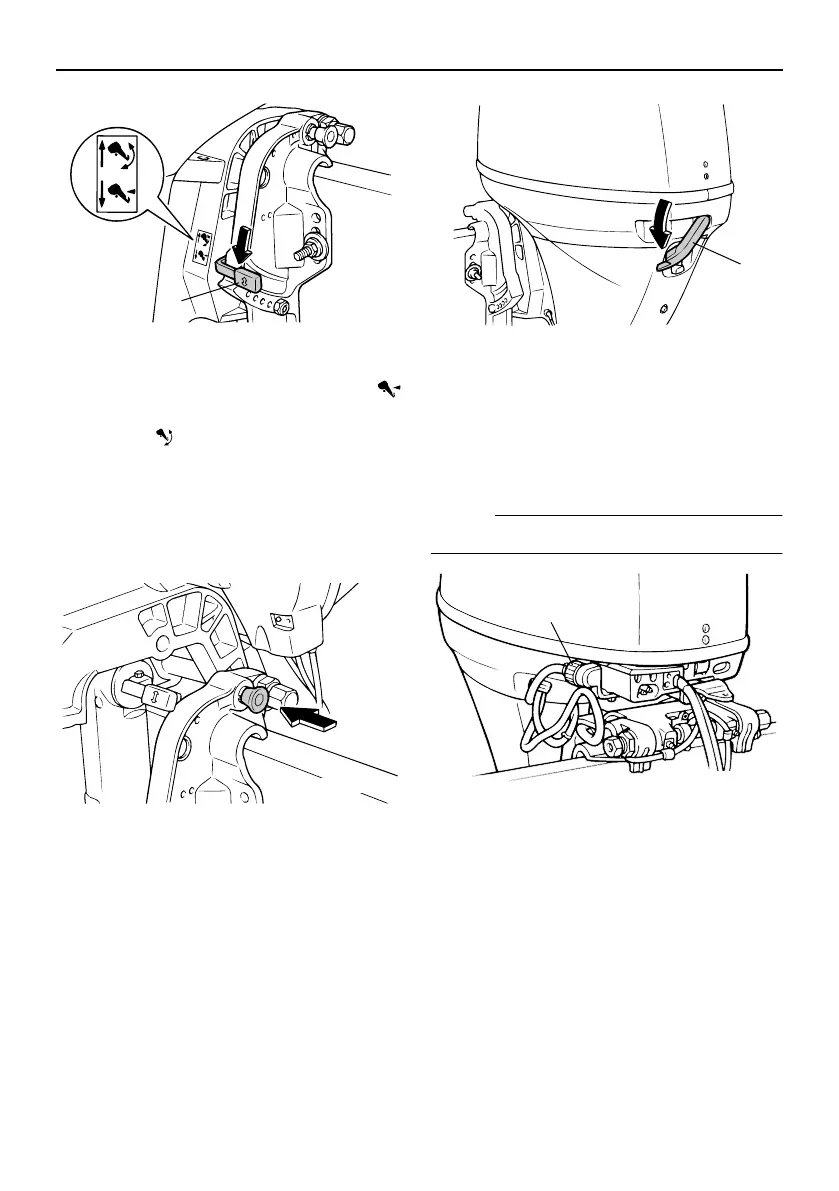

To lock it, set the tilt lock lever in the “”
(lock) position. To release, push the tilt lock
lever in the “” (release) position.
EMU26320
Tilt support knob
To keep the outboard motor in the tilted up
position, push the tilt support knob under the
swivel bracket.
EMU26372
Top cowling lock lever(s) (turn type)
To remove the engine top cowling, turn the
lock lever(s) and lift off the cowling. When in-
stalling the cowling, check to be sure it fits
properly in the rubber seal. Then lock the
cowling again by returning the lever(s) to the
lock position.
EMU26460
Flushing device
This device is used to clean the cooling wa-
ter passages of the motor using a garden
hose and tap water.
NOTE:
For details on usage, see page 44.
EMU26300
Warning indicator
If the engine develops a condition which is
cause for warning, the indicator lights up. For
details on how to read the warning indicator,
see page 17.
1. Tilt lock lever
1
ZMU04039
ZMU04040
1. Top cowling lock lever(s)
1. Flushing device
1
ZMU04041
1
ZMU04042
