Yamaha F70 User Manual

25
Components
EMU2579Y

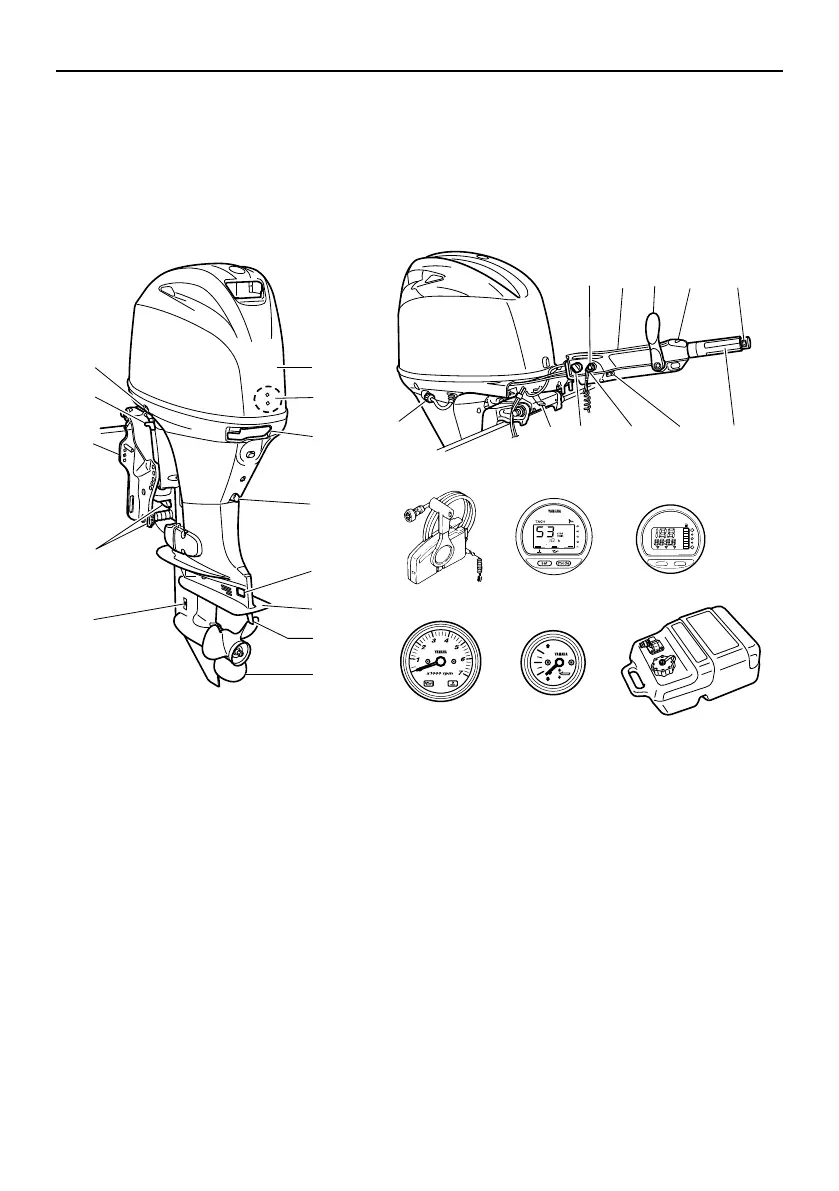

Components diagram
TIP:
* May not be exactly as shown; also may not be included as standard equipment on all mod-
els (order from dealer).
F50B, F50HB, T50B, F60B, F60HB, T60B
TRIP TIME BATT
Km/h
knot
mph
km
mile
SPEED
YAMAHA
set
mode
9
12
11
6
7
5
10
8
13
14 15
1
3
4
2
16 17 18
19202123 22
24
25 26 27
28 29 30
ZMU07948
1. Top cowling
2. Water separator
3. Cowling lock lever
4. Drain screw
5. Anode*
6. Anti-cavitation plate
7. Trim tab (anode)
8. Propeller*
9. Cooling water inlet
10. Anode(s)
11. Clamp bracket
12. Tilt support lever
13. Power trim and tilt switch*
14. Engine stop button/Engine shut-off switch*
15. Tiller handle*
16. Gear shift lever*
17. Variable trolling RPM switch*
18. Power trim and tilt switch*
19. Throttle grip*
20. Alert indicator*
21. Clip*
22. Main switch*
23. Steering friction adjuster*
24. Flushing device
25. Remote control box (side mount type)*
26. Digital tachometer*
27. Digital speedometer*
28. Tachometer*
29. Trim meter*
30. Fuel tank*
6C1-9-3B-1E0.book 25 ページ ２０１２年１１月１９日 月曜日 午前１０時３５分

Yamaha F70 Specifications

Engine Specifications

engine type	16-Valve, SOHC In-Line Four Cylinder
displacement	996 cc
bore x stroke	65 x 75 mm
compression ratio	9.4:1

Power

full throttle rpm range	5300 ~ 6300
horsepower rating	70 hp at 5800 rpm
alternator output	17 Amp

Fuel and Lubrication

recommended fuel	Regular Unleaded (Minimum Pump Octane 87)
ethanol blend limit	10% Maximum
engine oil capacity	2.1 L with filter

Weight and Dimensions

weight	118 kg
degree of trim	-4° through +16°
degree of tilt	65°
