Components
31
EMU25962

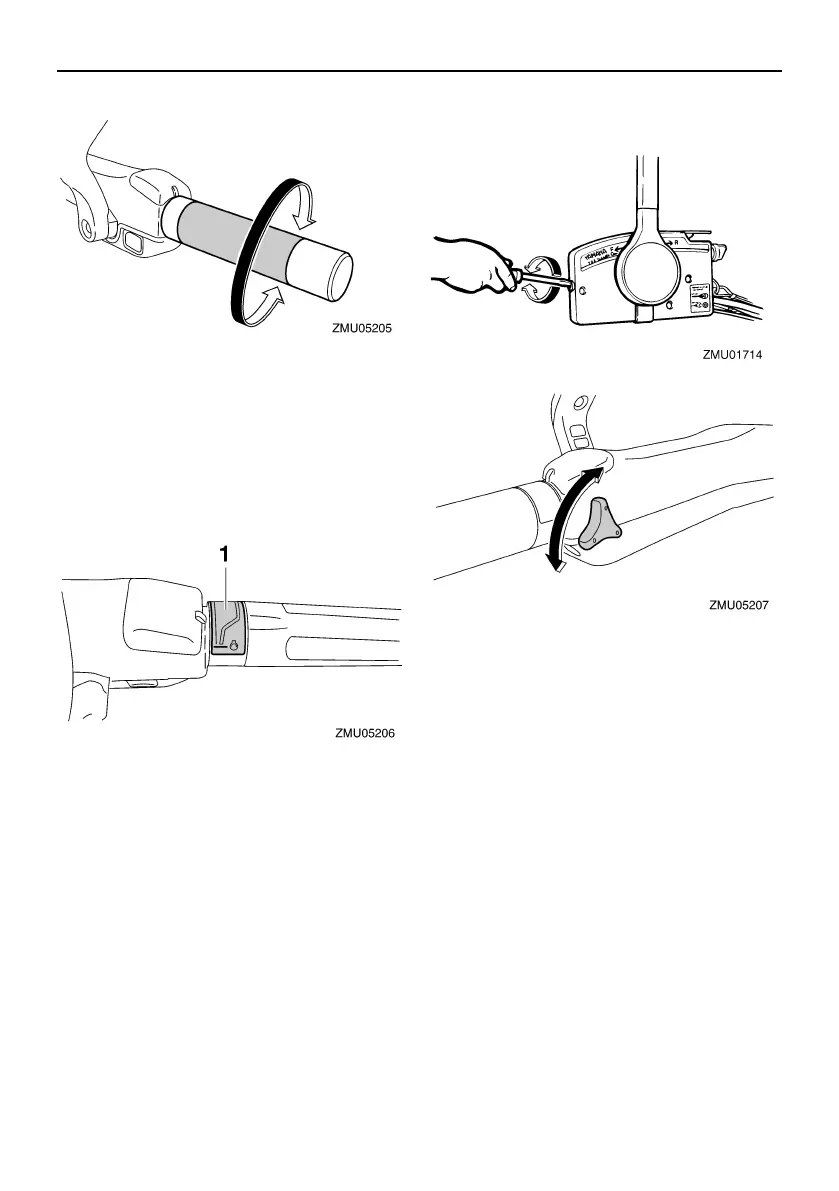

Throttle indicator
The fuel consumption curve on the throttle
indicator shows the relative amount of fuel
consumed for each throttle position. Choose
the setting that offers the best performance
and fuel economy for the desired operation.
EMU25976
Throttle friction adjuster
A friction device provides adjustable resis-
tance to movement of the throttle grip or the
remote control lever, and can be set accord-
ing to operator preference.
To increase resistance, turn the adjuster
clockwise. To decrease resistance, turn the
adjuster counterclockwise. WARNING! Do
not overtighten the friction adjuster. If
there is too much resistance, it could be
difficult to move the remote control lever
or throttle grip, which could result in an
accident.
[EWM00032]
When constant speed is desired, tighten the
adjuster to maintain the desired throttle set-
ting.
EMU25995
Engine shut-off cord (lanyard) and
clip
The clip must be attached to the engine shut-
off switch for the engine to run. The cord
should be attached to a secure place on the
operator’s clothing, or arm or leg. Should the
operator fall overboard or leave the helm, the
cord will pull out the clip, stopping ignition to
the engine. This will prevent the boat from
running away under power. WARNING! At-
tach the engine shut-off cord to a secure
place on your clothing, or your arm or leg
while operating. Do not attach the cord to
clothing that could tear loose. Do not
route the cord where it could become en-
1. Throttle indicator
6C1-9-3B-1E0.book 31 ページ ２０１２年１１月１９日 月曜日 午前１０時３５分
