Yamaha F70 User Manual

38
Instruments and indicators
EMU36015
Indicators
EMU36024
Low oil pressure-alert indicator
If oil pressure drops too low, this indicator will
light up. For further information, see page 50.
NOTICE
ECM00022
 Do not continue to run the engine if the
low oil pressure-alert indicator is on
and the engine oil level is lower. Seri-
ous engine damage will occur.
 The low oil pressure-alert indicator
does not indicate the engine oil level.
Use the oil dipstick to check the re-
maining oil quantity. For further infor-
mation, see page 56.
EMU36033
Overheat-alert indicator
If the engine temperature rises too high, this
indicator will light up. For further information
on reading the indicator, see page 50.
NOTICE
ECM00052
Do not continue to run the engine if the
overheat-alert indicator is on. Serious en-
gine damage will occur.
EMU26493
Digital tachometer
The tachometer shows the engine speed
and has the following functions.
All segments of the display will light momen-
tarily after the main switch is turned on and
will return to normal thereafter.
TIP:
The water separator and engine trouble-alert
indicators only operate when the engine is
equipped with the appropriate functions.

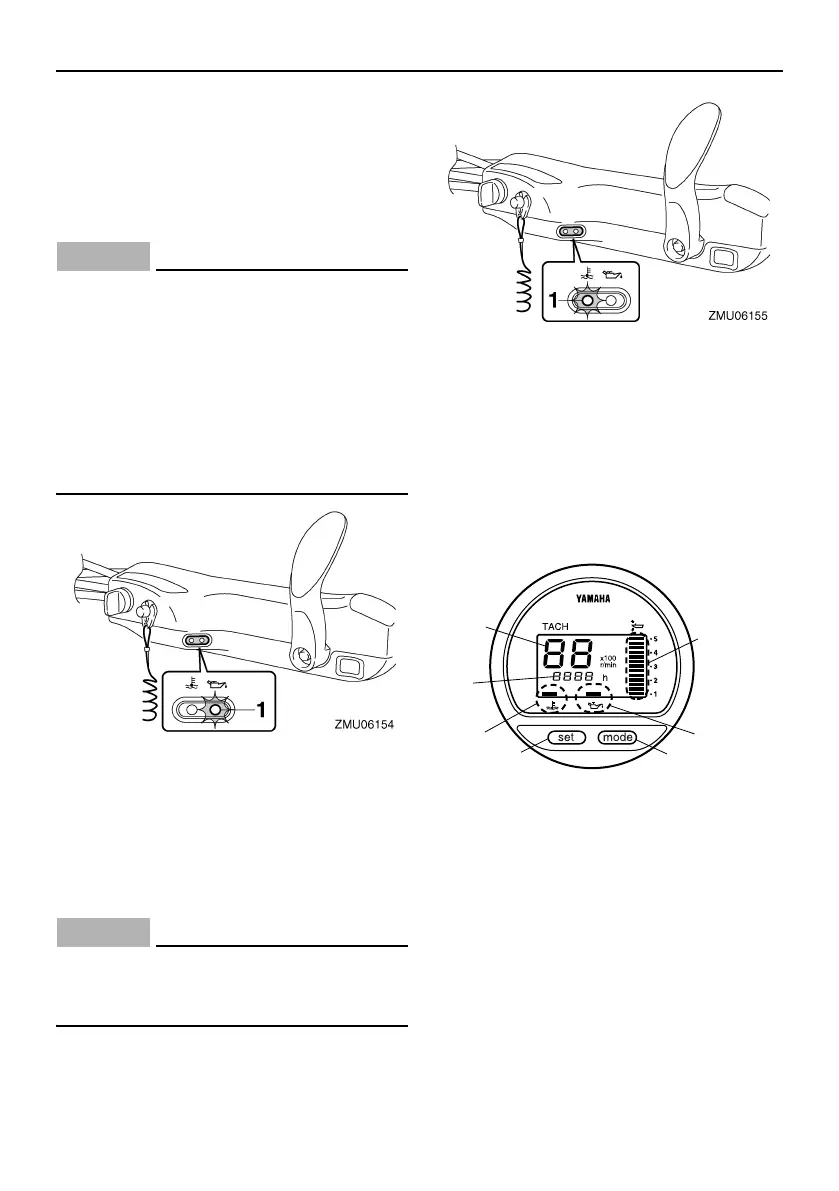

1. Low oil pressure-alert indicator
1. Overheat-alert indicator
1. Tachometer
2. Trim meter
3. Hour meter
4. Low oil pressure-alert indicator
5. Overheat-alert indicator
6. Set button
7. Mode button
1
5
2
4
3
6
7
ZMU03601
6C1-9-3B-1E0.book 38 ページ ２０１２年１１月１９日 月曜日 午前１０時３５分

Yamaha F70 Specifications

Engine Specifications

engine type	16-Valve, SOHC In-Line Four Cylinder
displacement	996 cc
bore x stroke	65 x 75 mm
compression ratio	9.4:1

Power

full throttle rpm range	5300 ~ 6300
horsepower rating	70 hp at 5800 rpm
alternator output	17 Amp

Fuel and Lubrication

recommended fuel	Regular Unleaded (Minimum Pump Octane 87)
ethanol blend limit	10% Maximum
engine oil capacity	2.1 L with filter

Weight and Dimensions

weight	118 kg
degree of trim	-4° through +16°
degree of tilt	65°
