Instruments and indicators
44
the unit can also show the cooling water
pressure display. However, even if the cool-
ing water pressure sensor is not installed,
the cooling water pressure display can be
shown by connecting an optional sensor to
the unit. For the optional sensor, consult your
Yamaha dealer. The tachometer unit is avail-
able in round and square types. Check your
tachometer unit type.
EMU36190
Start-up checks
Place the remote control lever / gear shift le-
ver in neutral and turn the main switch to
“ ” (on). After all the displays come on and
the total hour display comes on, the gauge
will change to normal operation. If the buzzer
sounds and the water separator-alert indica-
tor blinks, consult your Yamaha dealer im-

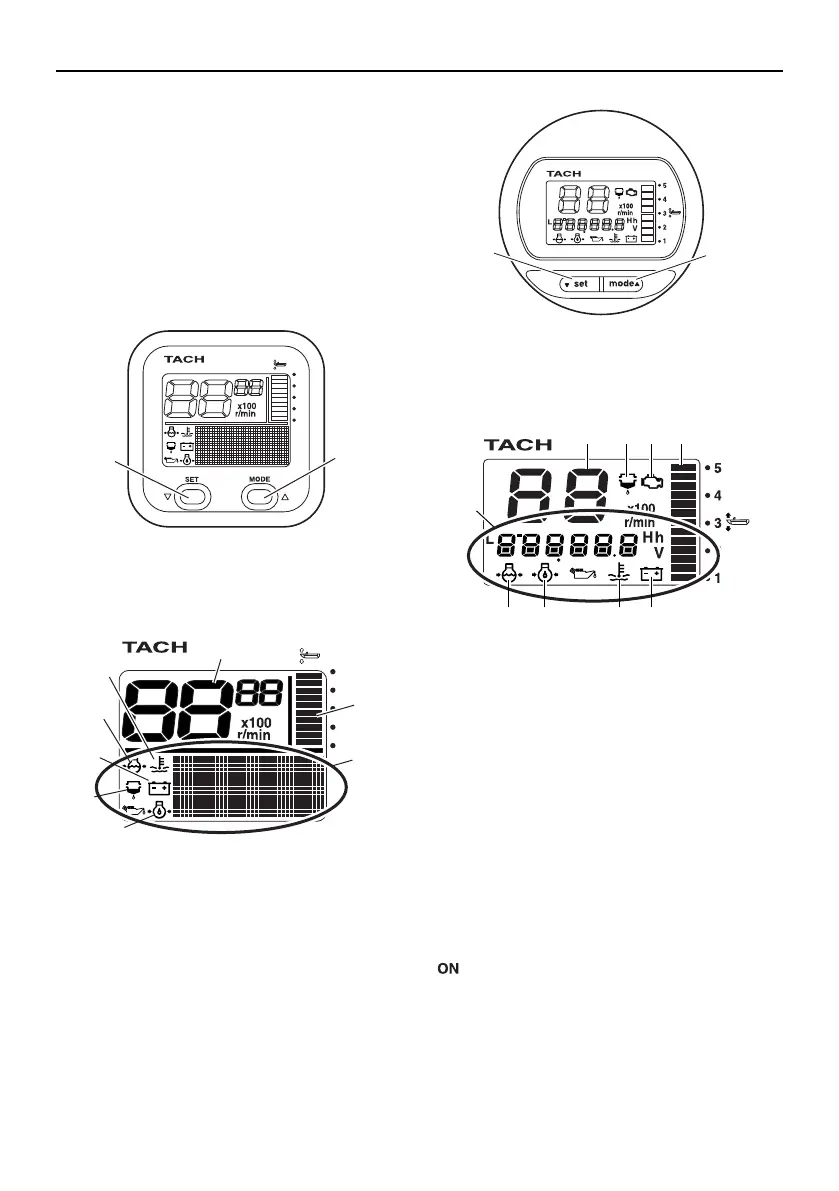

1. Set button
2. Mode button
1. Tachometer
2. Trim meter
3. Multifunction display
4. Cooling water pressure
5. Cooling water/engine temperature
6. Water detection-alert indicator
7. Battery voltage
8. Oil pressure (4-stroke models)
2
1
ZMU05415
2
3
1
4
5
6
7
8
ZMU05416
1. Set button
2. Mode button
1. Tachometer
2. Trim meter
3. Multifunction display
4. Water detection-alert indicator
5. Engine trouble alert/maintenance indicator
6. Cooling water pressure
7. Oil pressure (4-stroke models)
8. Cooling water/engine temperature
9. Battery voltage
2
1
ZMU05417
1452
3
6879
ZMU05418
6C1-9-3B-1E0.book 44 ページ ２０１２年１１月１９日 月曜日 午前１０時３５分

Yamaha F70 Specifications

Engine Specifications

engine type	16-Valve, SOHC In-Line Four Cylinder
displacement	996 cc
bore x stroke	65 x 75 mm
compression ratio	9.4:1

Power

full throttle rpm range	5300 ~ 6300
horsepower rating	70 hp at 5800 rpm
alternator output	17 Amp

Fuel and Lubrication

recommended fuel	Regular Unleaded (Minimum Pump Octane 87)
ethanol blend limit	10% Maximum
engine oil capacity	2.1 L with filter

Weight and Dimensions

weight	118 kg
degree of trim	-4° through +16°
degree of tilt	65°
