Instruments and indicators
42
EMU36080
Voltmeter
The voltmeter displays the charge of the bat-
tery in volts(V).
EMU26721
Fuel level-alert indicator
If the fuel level decreases to one segment,
the fuel level alert segment will blink.
Do not continue to operate the engine with
full throttle if an alert device has activated.
Get back to the port within trolling engine
speed. NOTICE: Running out of fuel can
damage the engine.
[ECM01770]
EMU26732
Low battery voltage-alert indicator
If battery voltage drops, the display will auto-
matically turn on and blink.
Get back to the port soon if an alert device
has activated. For charging the battery, con-
sult your Yamaha dealer.
EMU26471
Analog tachometer
This gauge shows the engine speed and has
the following functions.
EMU26506
Low oil pressure-alert indicator
If oil pressure drops too low, this indicator will
flash. For further information, see page 50.
NOTICE
ECM00022
 Do not continue to run the engine if the
low oil pressure-alert indicator is on
and the engine oil level is lower. Seri-
ous engine damage will occur.
 The low oil pressure-alert indicator
does not indicate the engine oil level.

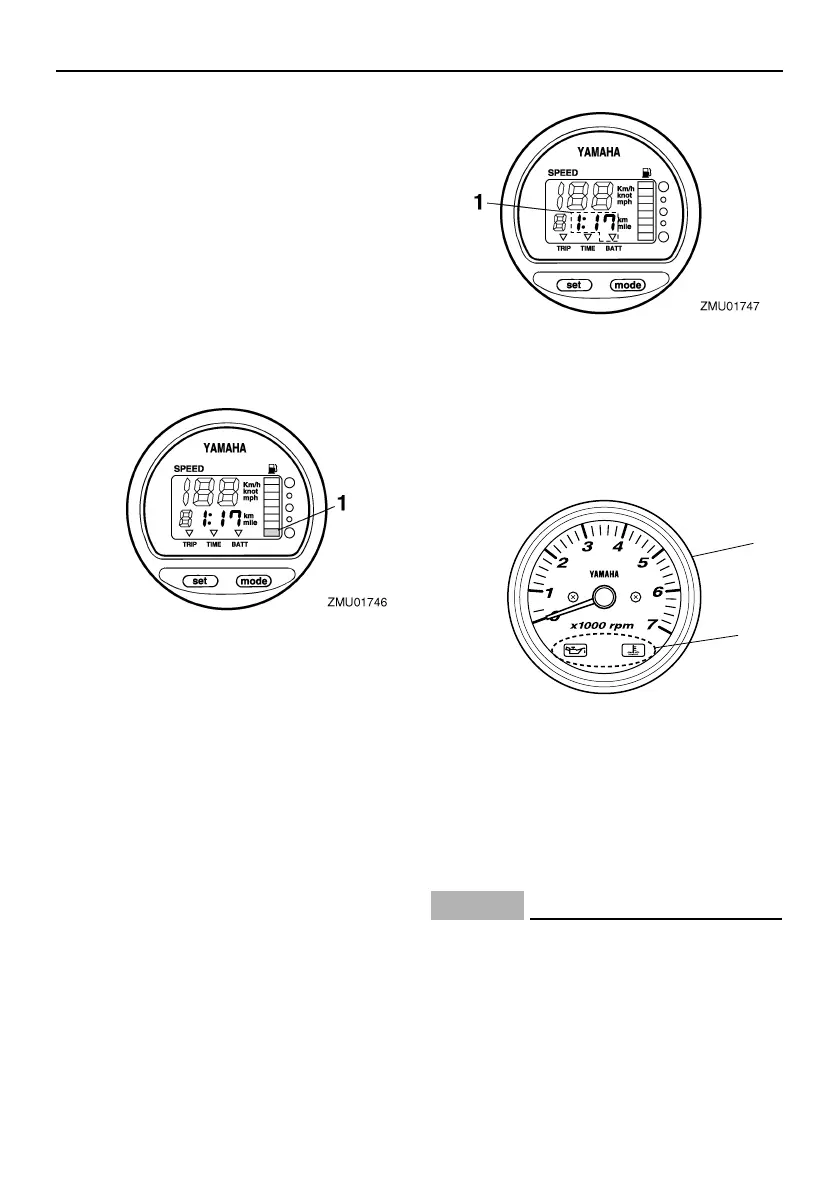

1. Fuel level-alert segment
1. Low battery indicator
1. Tachometer
2. Alert indicator(s)
ZMU04578
1
2
6C1-9-3B-1E0.book 42 ページ ２０１２年１１月１９日 月曜日 午前１０時３５分

Yamaha F70 Specifications

Engine Specifications

engine type	16-Valve, SOHC In-Line Four Cylinder
displacement	996 cc
bore x stroke	65 x 75 mm
compression ratio	9.4:1

Power

full throttle rpm range	5300 ~ 6300
horsepower rating	70 hp at 5800 rpm
alternator output	17 Amp

Fuel and Lubrication

recommended fuel	Regular Unleaded (Minimum Pump Octane 87)
ethanol blend limit	10% Maximum
engine oil capacity	2.1 L with filter

Weight and Dimensions

weight	118 kg
degree of trim	-4° through +16°
degree of tilt	65°
