Instruments and indicators
43
Use the oil dipstick to check the re-
maining oil quantity. For further infor-
mation, see page 56.
EMU26574
Overheat-alert indicator
If the engine temperature rises too high, this
indicator will flash. For further information on
reading the indicator, see page 50.
ECM00052
Do not continue to run the engine if the
overheat-alert indicator is on. Serious en-
gine damage will occur.
EMU26611
Analog trim meter
This gauge shows the trim angle of your out-
board motor.
Memorize the trim angles that work best for
your boat under different conditions. Adjust
the trim angle to the desired setting with the
power trim and tilt switch.
EMU40792
Command Link Multifunction
Meters
There are 6 types of Command Link meters:
tachometer unit (square and round types),
speedometer unit (square type), speed &
fuel meter unit (square and round types), and
fuel management meter (square type). The
indicator system is slightly different between
the round and square types. Check the mod-
el and type of your unit carefully. This manu-
al describes mainly the alert indicators. For
more details on setting meters or changing
indicator systems, see the operation manual
for the meters.
EMU41164
Command Link Multifunction
Tachometer
The tachometer shows the engine speed
and has functions of trim meter, adjusting
trolling speed, cooling water/engine temper-
ature display, battery voltage display, total
hour/trip hour display, oil pressure display,
water detection alert, engine trouble alert,
and periodic maintenance notification. If the
cooling water pressure sensor is installed,

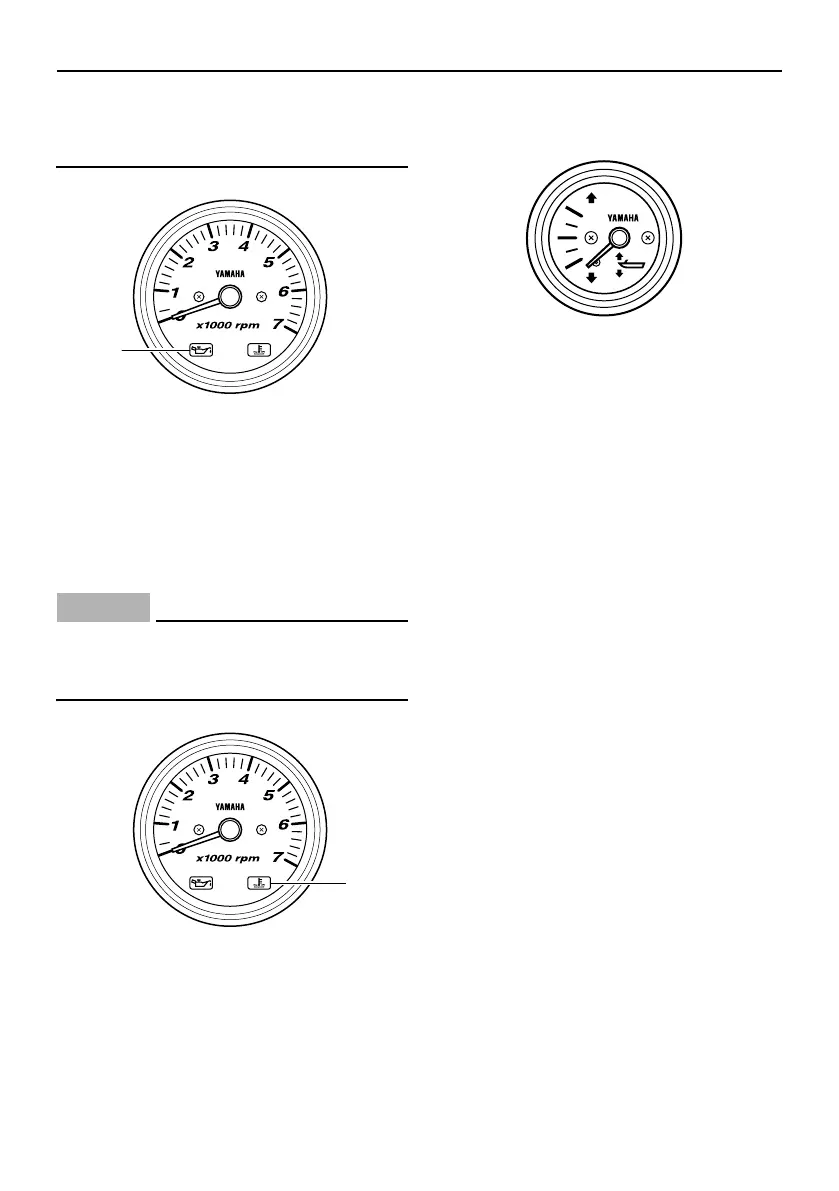

1. Low oil pressure-alert indicator
1. Overheat-alert indicator
6C1-9-3B-1E0.book 43 ページ ２０１２年１１月１９日 月曜日 午前１０時３５分
