Instrument and control functions
6-4
6
munication between the vehicle and
smart key takes place and when cer-
tain smart key system operations are
carried out.
TIP
When the start switch is pushed, the
indicator light will come on for about
one second and then go off. If the indi-
cator light does not come on or go off
as normal, have a Yamaha dealer
check the vehicle.
EAU76382
Stop and Start System indicator
light “ ”
This indicator light comes on when the
Stop and Start System activates. The
indicator light will flash when the en-
gine is automatically stopped by the
Stop and Start System.
TIP
Even if the Stop and Start Switch is set
to “ ”, this indicator light may not
come on. (See page 5-1.)
EAUN2110
Multi-function meter unit
WARNING
EWA12423
Be sure to stop the vehicle before
making any setting changes to the
multi-function meter unit. Changing
settings while riding can distract the
operator and increase the risk of an
accident.
The multi-function meter unit is
equipped with the following:
 a speedometer
 a tachometer
 a VVA indicator
 a clock
 a fuel meter
 a multi-function display
TIP
Be sure to turn the main switch on be-
fore using the “RESET/SELECT” but-
ton.

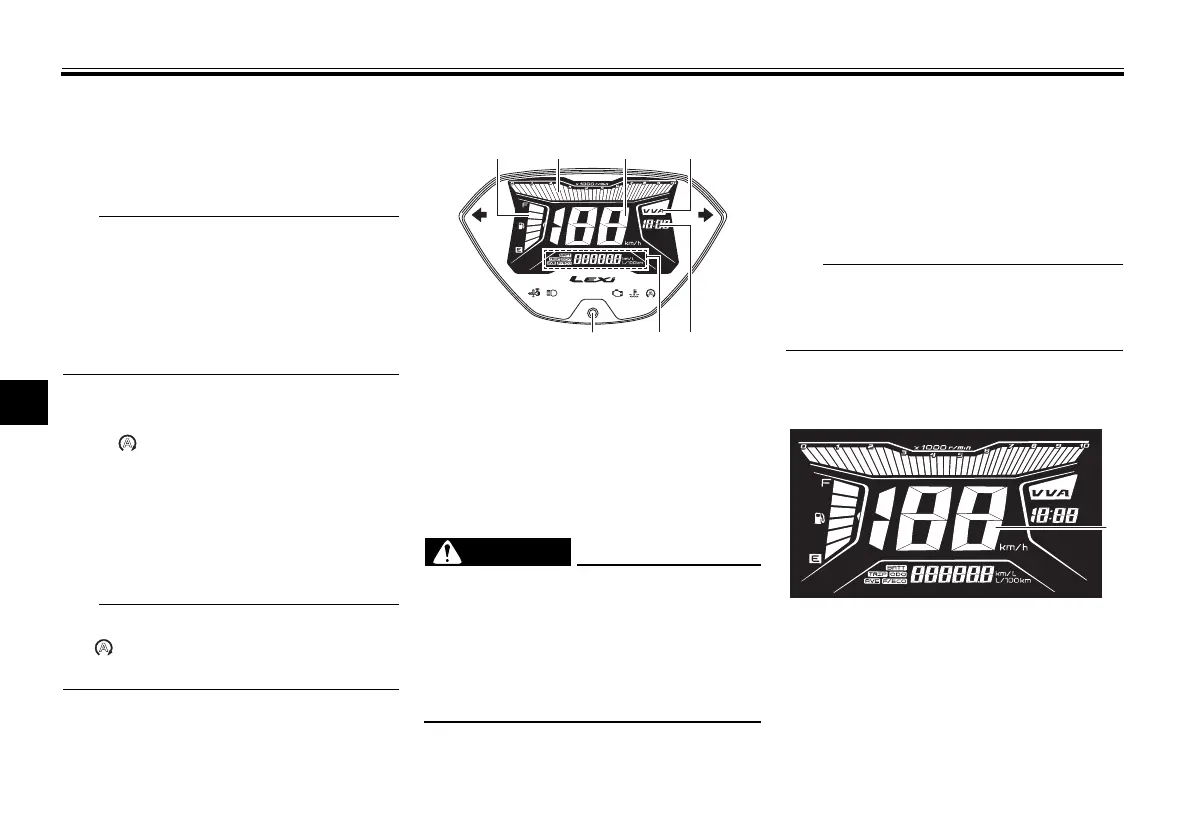

Speedometer
The speedometer shows the vehicle’s
traveling speed.
A
A
1. Fuel meter
2. Tachometer
3. Speedometer
4. VVA (variable valve actuation) indicator
5. Clock
6. Multi-function display
7. “RESET/SELECT” button
A
12 3 4
567
1. Speedometer
1
