Yamaha LEXI User Manual

Periodic maintenance and adjustment
9-31
9
5. Turn the main switch on, and then
turn on the electrical circuit in
question to check if the device op-
erates.
TIP
If the fuse immediately blows again,
have a Yamaha dealer check the elec-
trical system.
6. Install the battery cover by install-
ing the screws.
7. Close the seat.
EAU64070
Headlights
This model is equipped with LED-type
headlights.
If a headlight does not come on, have
a Yamaha dealer check its electrical
circuit.
NOTICE
ECA16581
Do not affix any type of tinted film or
stickers to the headlight lens.
EAUN1970
Replacing a front turn signal
light bulb or an auxiliary light
bulb
If a front turn signal light or an auxiliary
light bulb burns out, replace it as fol-
lows.
1. Place the motorcycle on the cen-
terstand.
2. Remove panel A. (See page 9-8.)
3. Remove the socket (together with
the bulb) by turning it counter-
clockwise.
4. Remove the burnt out bulb by
pulling it out.
5. Insert a new bulb into the socket.
Specified fuses:
Main fuse:
30.0 A
Terminal fuse 1:
5.0 A
Headlight fuse:
7.5 A
Signaling system fuse:
10.0 A
Ignition fuse:
7.5 A
Smart key system fuse:
5.0 A (GDS125-F)
Fuel injection system fuse:
7.5 A
Backup fuse:
7.5 A

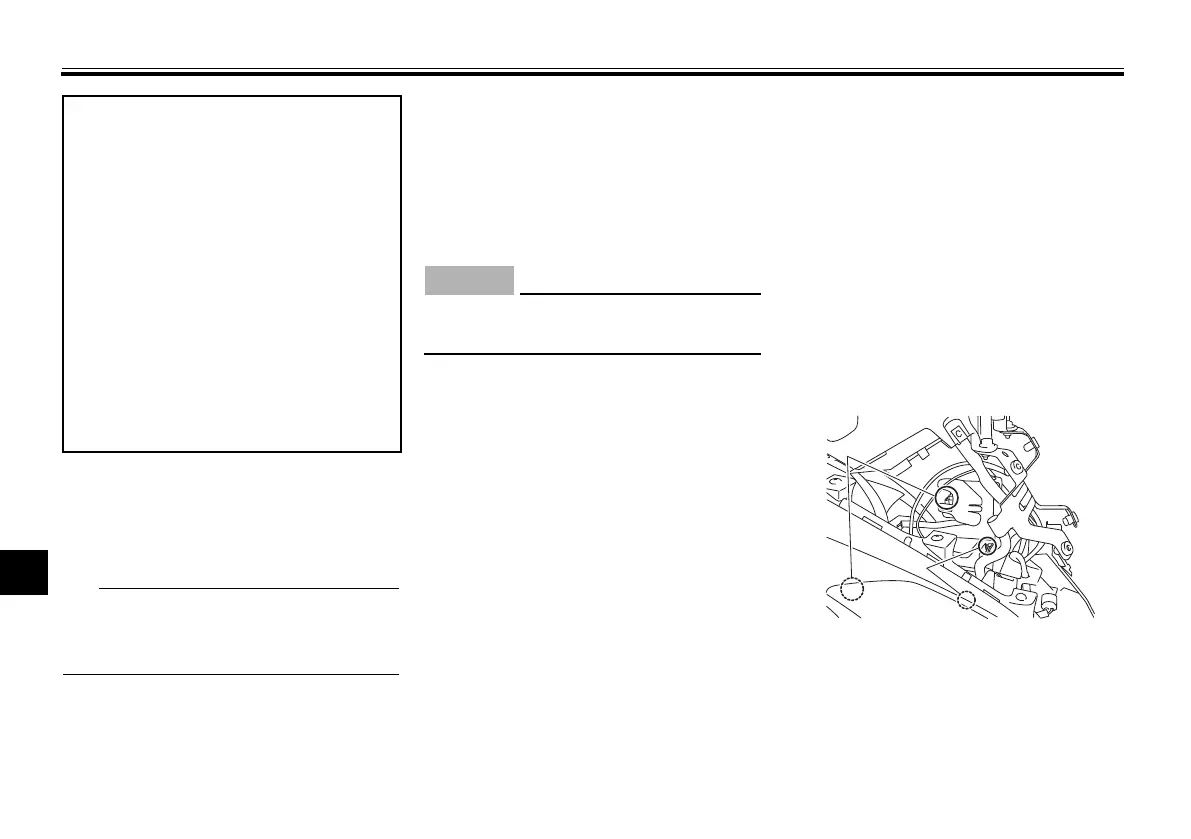

1. Turn signal light bulb socket
2. Auxiliary light bulb socket
1
2
UB4HEZE0.book Page 31 Wednesday, March 21, 2018 2:58 PM

Yamaha LEXI Specifications

General

Fuel System	Fuel Injection
Front Suspension	Telescopic Fork
Rear Suspension	Unit Swing
Fuel Tank Capacity	4.2 L
Lubrication System	Wet Sump
Ignition System	TCI
Frame Type	Underbone
Starter System	Electric
Transmission Type	Automatic V-belt
Front Brake	Single disc
Rear Brake	Drum
Clutch Type	Automatic centrifugal
Rear Tire	100/90-10 56J
