Yamaha LEXI User Manual

Periodic maintenance and adjustment
9-8
9
EAU18773

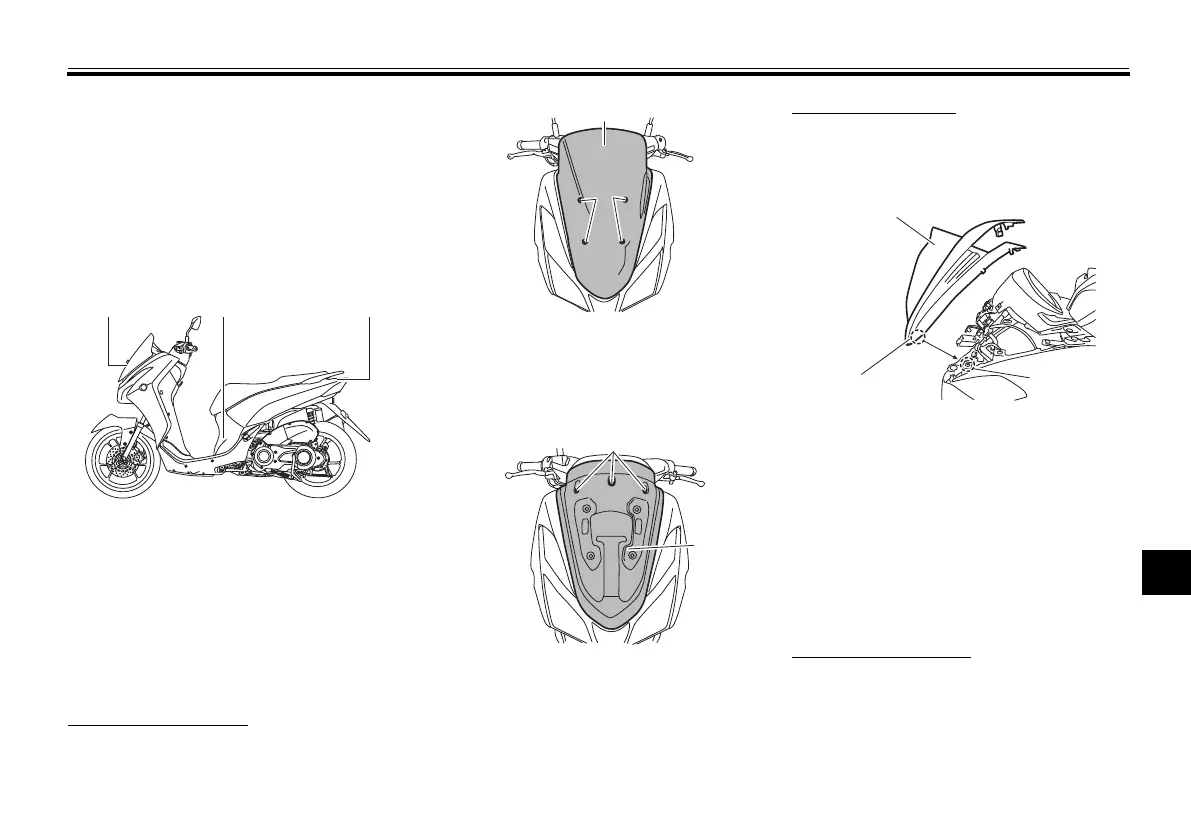

Removing and installing pan-
els
The panels shown need to be removed
to perform some of the maintenance
jobs described in this chapter. Refer to
this section each time a panel needs to
be removed and installed.
EAUN2180
Panel A
To remove the panel
1. Remove the windshield by remov-
ing the screws.
2. Remove the screws from panel A,
and then pull the panel off.
To install the panel
1. Place the panel in the original po-
sition, with fit the projection on the
panel into the hole.
2. Install the screws to the panel.
3. Install the windshield by installing
the screws.
Panel B
To remove the panel
1. Open the seat. (See page 6-14.)
2. Remove the screws, and then pull
the panel off as shown.
1. Panel A
2. Panel B
3. Panel C
12 3
1. Windshield
2. Screw
1. Panel A
2. Screw
1
2
1
2
1. Panel A
2. Projection
3. Hole
2
1
3
UB4HEZE0.book Page 8 Wednesday, March 21, 2018 2:58 PM

Yamaha LEXI Specifications

General

Fuel System	Fuel Injection
Front Suspension	Telescopic Fork
Rear Suspension	Unit Swing
Fuel Tank Capacity	4.2 L
Lubrication System	Wet Sump
Ignition System	TCI
Frame Type	Underbone
Starter System	Electric
Transmission Type	Automatic V-belt
Front Brake	Single disc
Rear Brake	Drum
Clutch Type	Automatic centrifugal
Rear Tire	100/90-10 56J
