Periodic maintenance and adjustment
9-22
9
braking performance, which may re-
sult in loss of control and an acci-
dent.
EAU22172

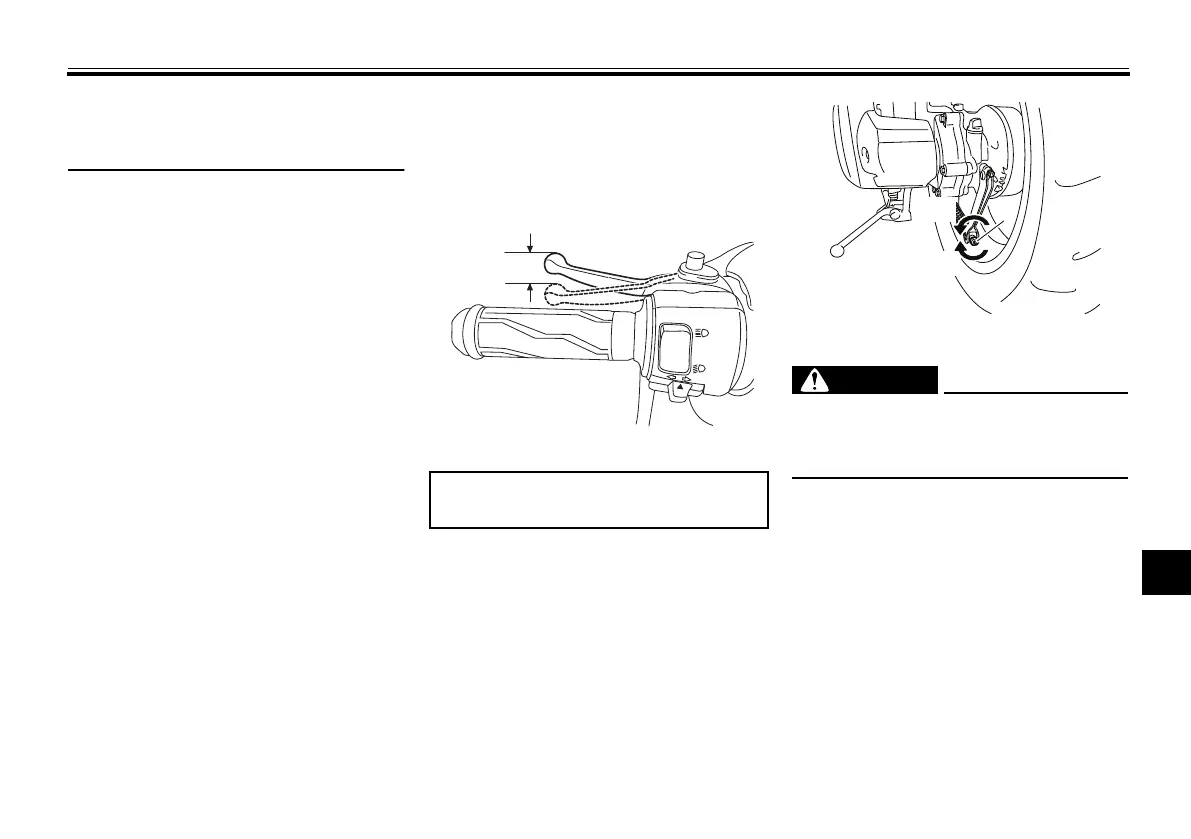

Adjusting the rear brake lever
free play
Measure the rear brake lever free play
as shown.
Periodically check the brake lever free
play and, if necessary, adjust it as fol-
lows.
To increase the brake lever free play,
turn the adjusting nut at the brake shoe
plate in direction (a). To decrease the
brake lever free play, turn the adjusting
nut in direction (b).
WARNING
EWA10651
If proper adjustment cannot be ob-
tained as described, have a Yamaha
dealer make this adjustment.
1. Rear brake lever free play
Rear brake lever free play:
10.0–20.0 mm (0.39–0.79 in)
OFF
1
1. Rear brake lever free play adjusting nut
1
(a)
(b)
UB4HEZE0.book Page 22 Wednesday, March 21, 2018 2:58 PM

Yamaha LEXI Specifications

General

Fuel System	Fuel Injection
Front Suspension	Telescopic Fork
Rear Suspension	Unit Swing
Fuel Tank Capacity	4.2 L
Lubrication System	Wet Sump
Ignition System	TCI
Frame Type	Underbone
Starter System	Electric
Transmission Type	Automatic V-belt
Front Brake	Single disc
Rear Brake	Drum
Clutch Type	Automatic centrifugal
Rear Tire	100/90-10 56J
