On-screen user interface
Owner’s Manual
19

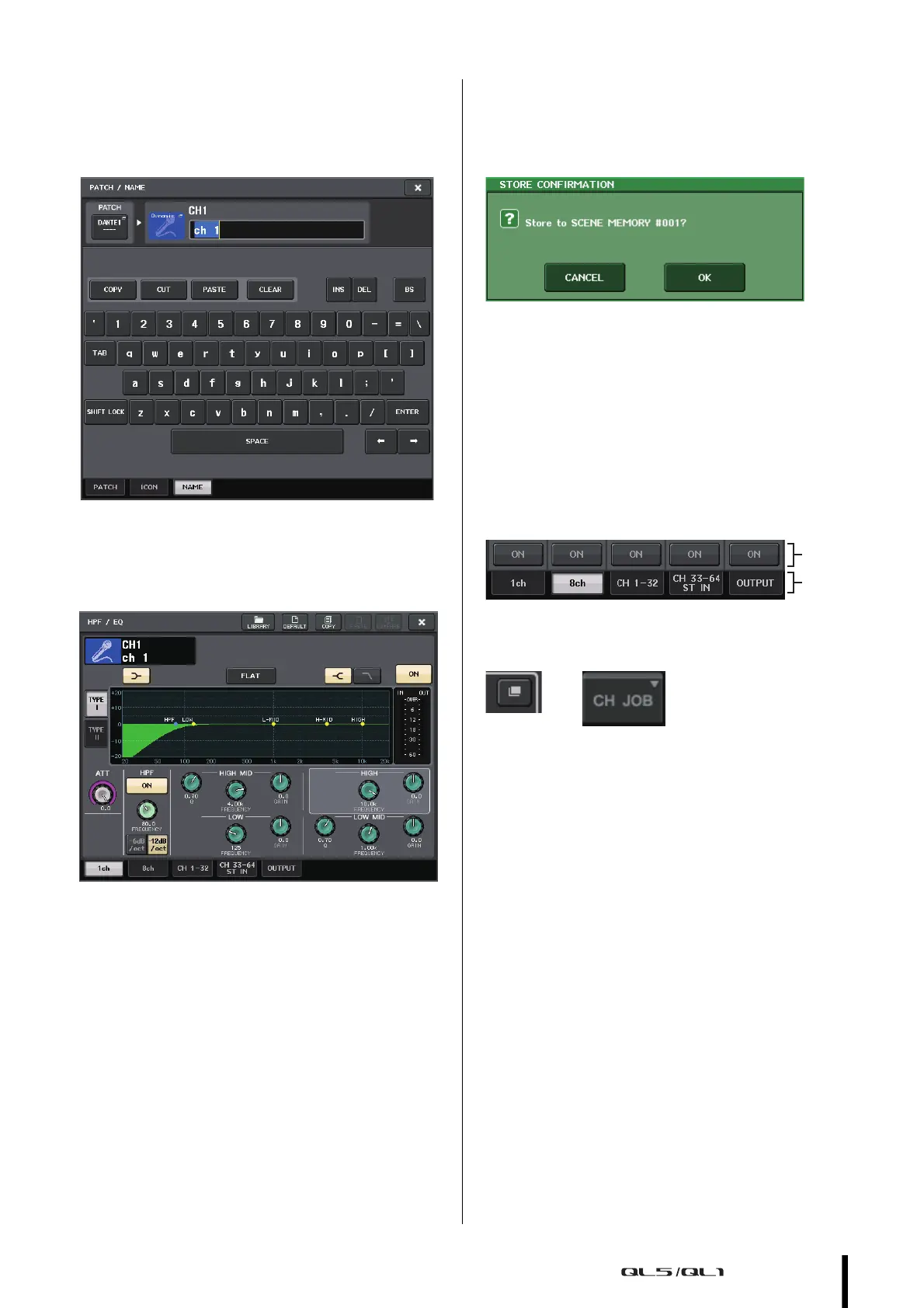

Keyboard window
Displayed when you need to assign a name or comment
to a scene or library, or when you need to assign a
channel name. Press characters in the window to enter
the desired characters.
HPF/EQ window
When you press a button or field for a specific parameter
in a screen, a window showing detailed parameters or
lists will appear.
If there are tabs in the window, you can press a tab to
switch pages.
Some windows show several buttons called
“tool
buttons
” at the top of the window. You can use these tool
buttons to recall or copy/paste library data.
Press the
“X” (close) button to close the window and
return to the previous screen.
Dialog boxes
Dialog boxes similar to the following enable you to
confirm operations you just performed. Press the OK
button to execute the operation. The operation will be
canceled if you press the CANCEL button.
Tabs
Tabs enable you to switch between multiple pages. Each
tab indicates its page name.
Buttons
Buttons are used to execute specific functions, to switch
parameters on or off, or to select one of multiple choices.
Buttons that perform on/off operations appear in solid
colors while they are turned on, and are dark (ghosted)
when turned off.
When you press a button that has the following symbol,
a separate window will open, allowing you to make
detailed settings.
Faders/Knobs
Faders and knobs on screen move in tandem when you
operate the top panel faders and knobs. The current
value appears immediately below the fader or knob.
For display knobs that can be operated by the panel
[TOUCH AND TURN] knob, pressing the display knob
just once causes a highlight outline to appear around the
knob. This frame indicates that the knob has been
selected for operation.
