Yamaha QL5 Owner's Manual

Quick Guide
Owner’s Manual

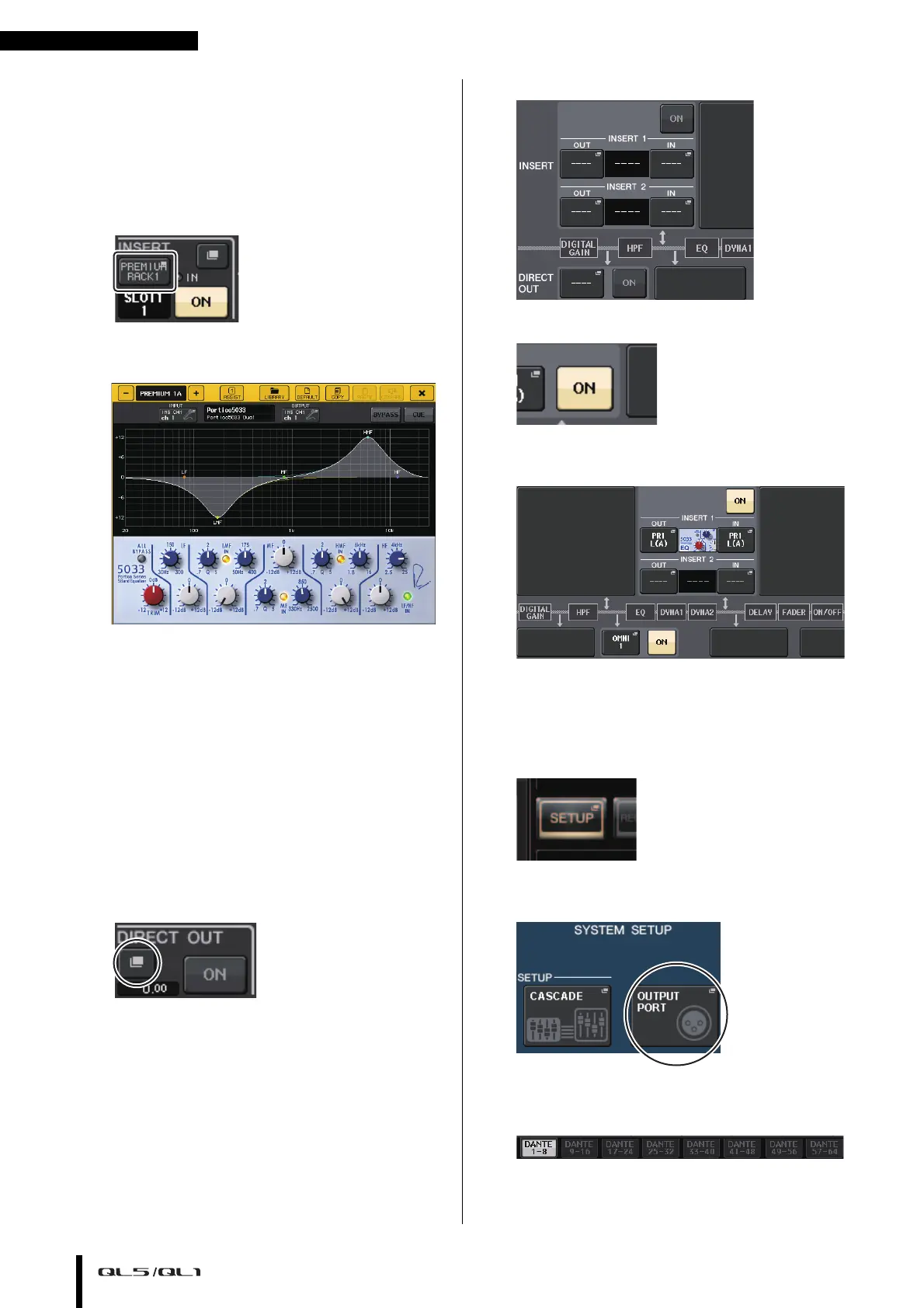

40
8. In the Channel Strip section, select the bank that
includes the channel for the premium rack you
want to use.
9. Press the [SEL] key of the channel for the
premium rack you want to use.
10. Press the RACK EDIT button in the INSERT field
in the SELECTED CHANNEL VIEW screen.
11. Adjust the parameters in the PREMIUM RACK
window.
Changing the patch settings
Setting up INSERT or DIRECT OUT
1. Select the bank that contains the channel for
which you want to set up INSERT or DIRECT OUT
in the Channel Strip section.
2. Press the [SEL] key of the channel for which you
want to change the patching.
3. Press the popup button in the DIRECT OUT field
in the SELECTED CHANNEL VIEW screen.
4. Assign OUT and IN for INSERT or DIRECT OUT.
5. Press the ON button to enable it.
6. Modify the INSERT or DIRECT OUT point by
pressing it, if necessary.
Changing the signal output to each
output port
1. Press the SETUP button in the touch screen.
2. Press the OUTPUT PORT button in SYSTEM
SETUP.
3. Select the OUTPUT PORT tab you want to
change.

Yamaha QL5 Specifications

General

DJ mixer	-
Product color	Black
Video capability	No
Channels quantity	72 channels
Supported sample rates	44.1, 48 kHz
Digital sound processing	- bit
Phantom power	48 V
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	200 W
Total Harmonic Distortion (THD)	0.05 %

Weight and Dimensions

Depth	563 mm
Width	828 mm
Height	272 mm
Weight	21800 g
