Yamaha RX-V661 User Manual

14 En

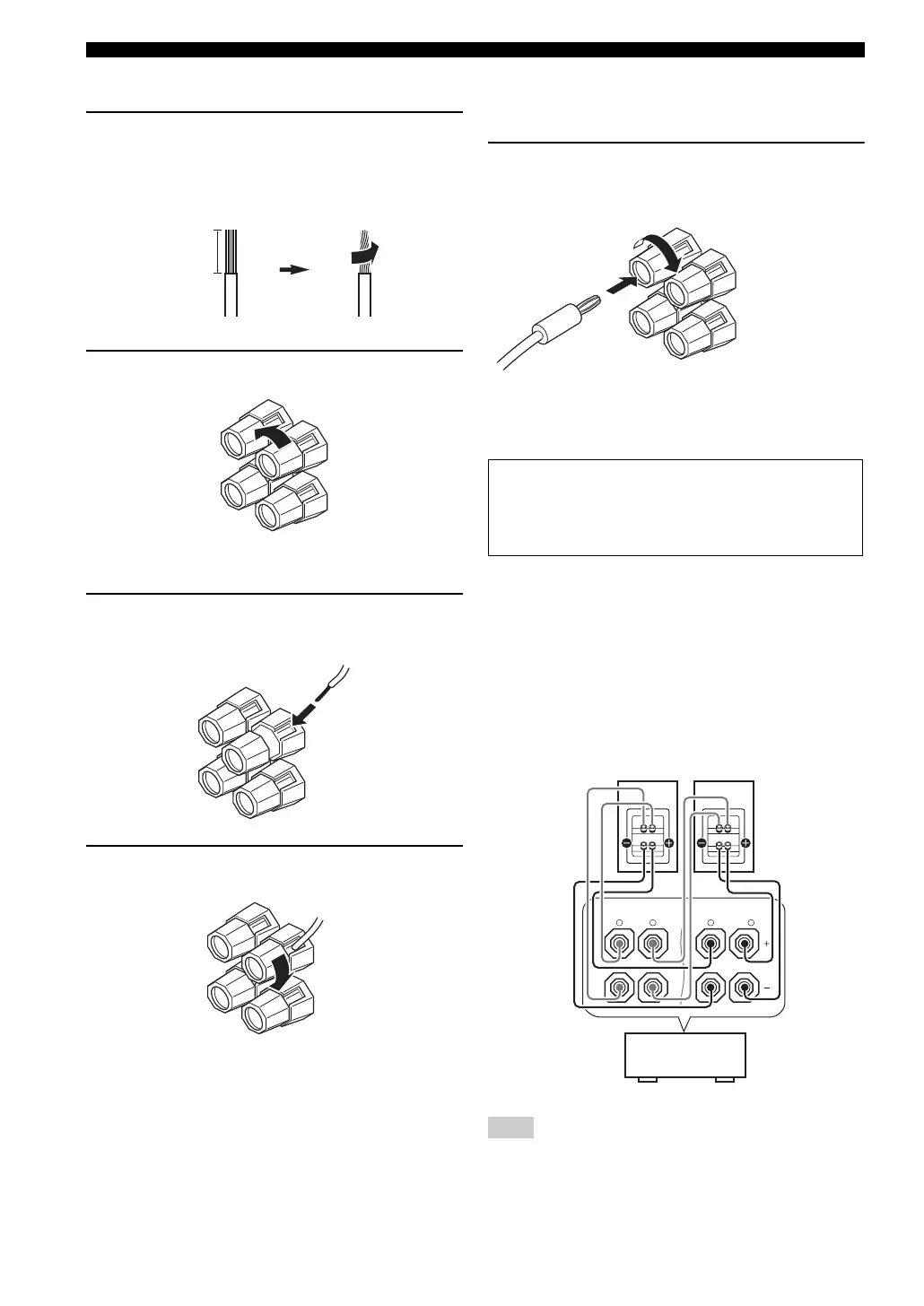

Connections
■ Connecting the speaker cable
1 Remove approximately 10 mm (0.4 in) of
insulation from the end of each speaker
cable and then twist the exposed wires of the
cable together to prevent short circuits.
2 Loosen the knob.
3 Insert one bare wire into the hole on the side
of each terminal.
4 Tighten the knob to secure the wire.
■ Connecting the banana plug
(except Europe, Asia and Korea models)
Tighten the knob and then insert the banana
plug connector into the end of the
corresponding terminal.
■ Using bi-amplification connections
This unit allows you to make bi-amplification connections
to one speaker system. Check if your speakers support bi-
amplification.
To make the bi-amplification connections, use the FRONT
and SURROUND BACK terminals as shown below. To
activate the bi-amplification connections, set “BI-AMP”
to “ON” in “ADVANCED SETUP” (see page 95).
When you make the conventional connection, make sure that the
shorting bars are put into the terminals appropriately. Refer to the
instruction manuals of the speakers for details.
10 mm (0.4 in)
Red: positive (+)
Black: negative (–)
Caution
Remove the shorting bars or bridges to separate the
LPF (low pass filter) and HPF (high pass filter)
crossovers.
Note
Red: positive (+)
Black: negative (–)
FRONT A SURROUND BACK/
BI-AMP
SINGLE
L
R
L
R
This unit
Left
Right
Front speakers

Yamaha RX-V661 Specifications

General

Channels	7.1
HDMI Inputs	2
HDMI Outputs	1
Component Video Inputs	3
Component Video Outputs	1
Analog Audio Inputs	6
FM/AM Tuner	Yes
Dolby Digital	Yes
DTS	Yes
Response Bandwidth	10 Hz - 100 kHz
Signal-To-Noise Ratio	100 dB
Input Impedance	47 kOhm
Input Sensitivity	200 mV
Audio D/A Converter	192kHz/24-bit
Surround System Class	7.1 channel
Digital Sound Processor (DSP)	Yes
DSP Preset Qty	17
HDMI Switching	Yes
Output Impedance / Channel	8 Ohm
Frequency Response	10 Hz - 100 kHz
Tuner Bands	AM/FM
Preset Station Qty	40
Surround Sound	Yes
HDMI Version	1.2a
Digital Audio Inputs	4 Optical, 2 Coaxial
Additional Features	XM Ready
Video Inputs	Component
Video Outputs	Component
Audio Outputs	Headphones
Output Power / Channel	90 W
Width	17.1 in
Depth	16.75 inches
