21 En
Connections
PREPARATION
English

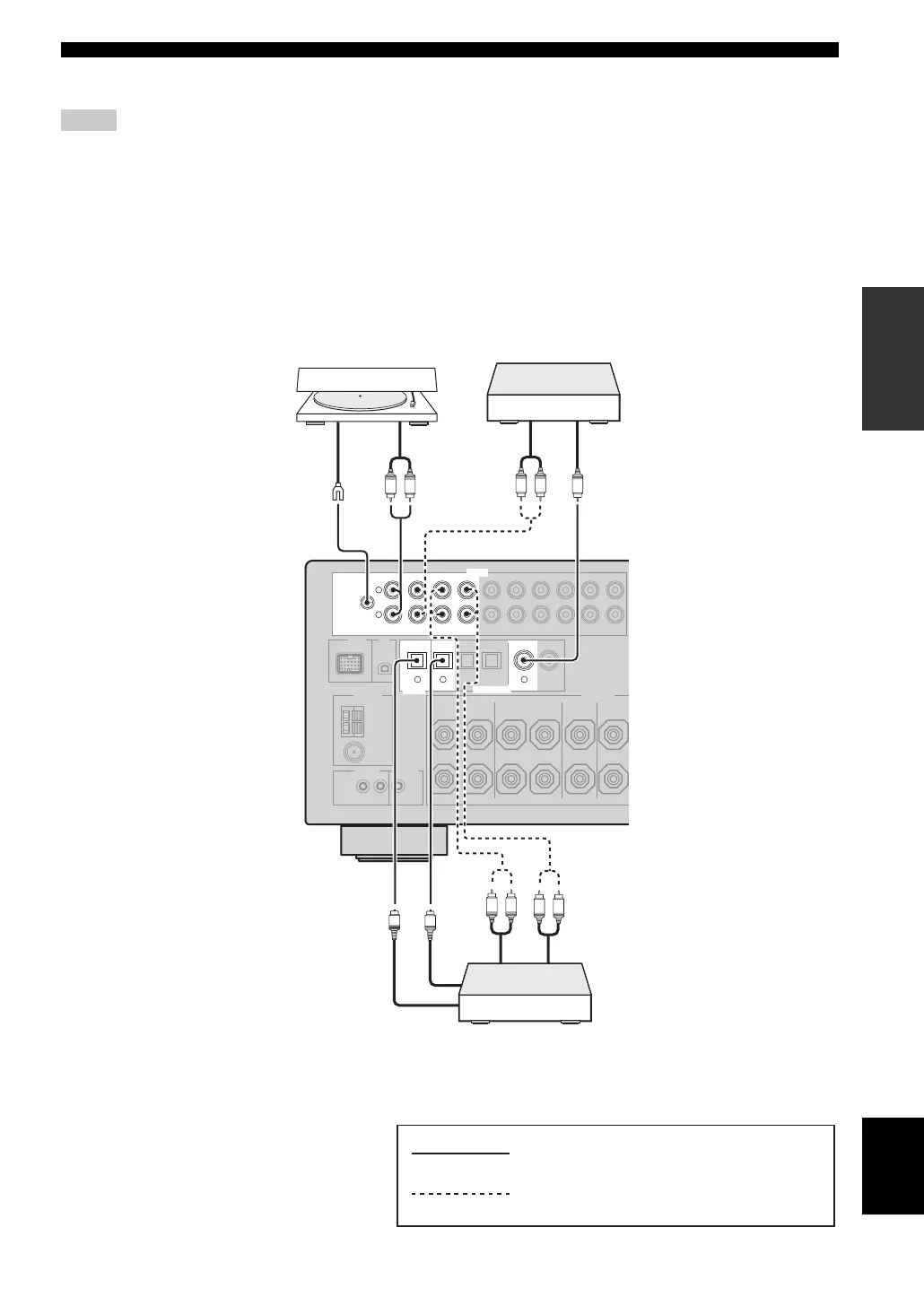

■ Connecting audio components
• To make a digital connection to a component other than the default component assigned to each the DIGITAL INPUT jack or the
DIGITAL OUTPUT jack, select the corresponding setting for “OPTICAL OUT”, “OPTICAL IN”, or “COAXIAL IN” in “I/O
ASSIGNMENT” (see page 78).
• Connect your turntable to the GND terminal of this unit to reduce noise in the signal. However, you may hear less noise without the
connection to the GND terminal for some turntables.
• The PHONO jacks are only compatible with a turntable with an MM or a high-output MC cartridge. To connect a turntable with a low-
output MC cartridge to the PHONO jacks, use an in-line boosting transformer or an MC-head amplifier.
• When you connect both the DIGITAL INPUT (OPTICAL) jack and the DIGITAL INPUT (COAXIAL) jack to an audio component,
the priority is given to the DIGITAL INPUT (COAXIAL) jack.
Notes
PHONO CD (PLAY)
IN
OUT
(REC)
CD
MD/CD-RMD/CD-R
MD/
CD-R
GND
AUDIO
DIGITAL INPUT
DIGITAL
OUTPUT
COAXIAL
L
R
1 25
RL
C
O
R L
O
RL
R L
Turntable
CD recorder, MD
recorder or tape deck
Audio in
Optical in
Audio out
Audio out
Ground
indicates recommended connections
indicates alternative connections
CD player
Audio out
Optical out
Coaxial out
To Next Page
