Yamaha RX-V661 User Manual

CONNECTIONS
11 En
PREPARATION
English

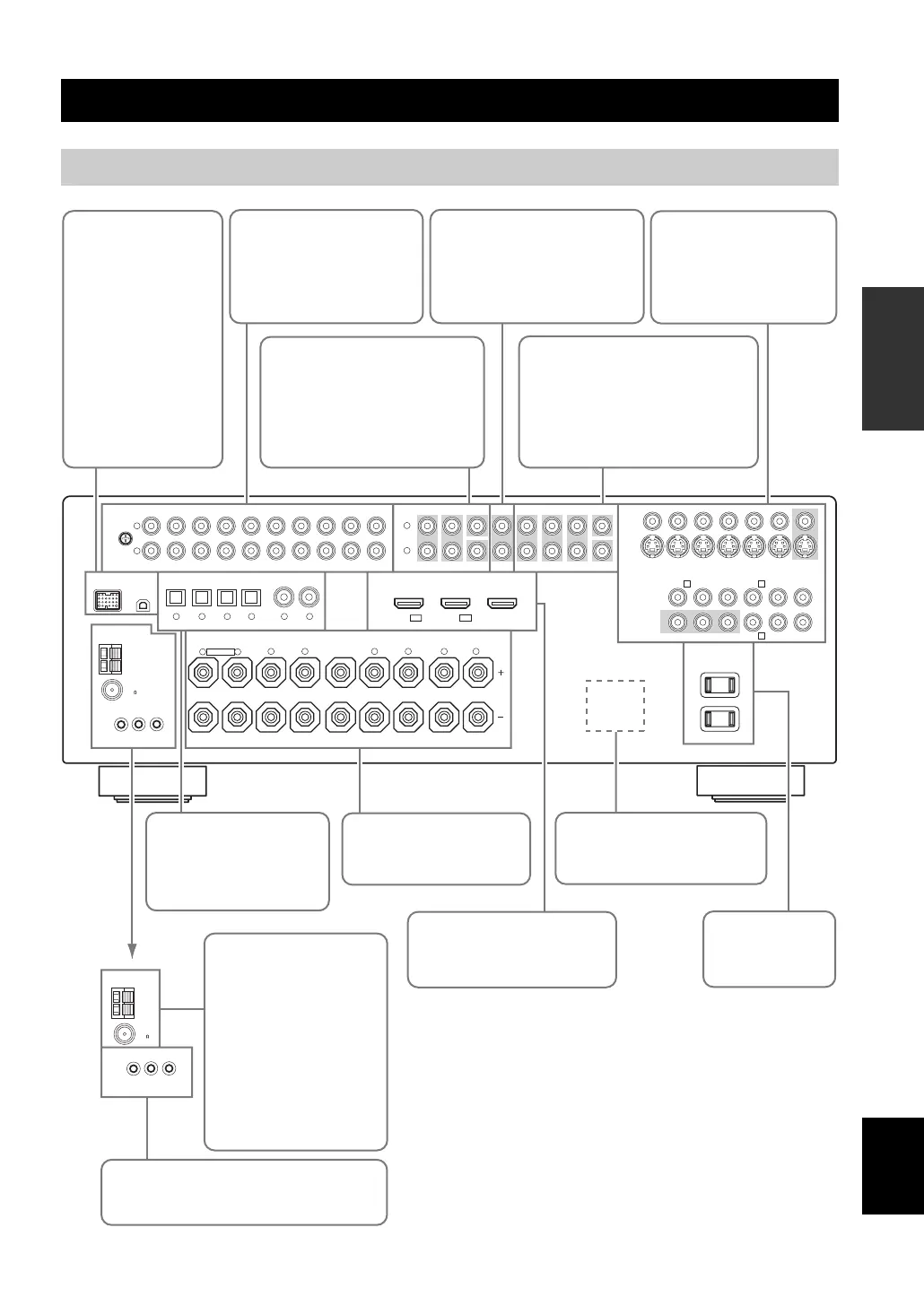

Connections
Rear panel
A B
C
PHONO CD (PLAY)
IN
OUT
(REC)
DVD
DVD DTV /CBL
CD DVD
MD/CD-RMD/CD-R
DTV/CBL
DTV/CBL
DVR
DVD
MONITOR OUT
DVR
DVD
IN OUT IN OUT
DTV/CBL DVR VCR
MONITOR
OUT
MD/
CD-R
OUTIN
VCR
SB(8CH)
FRONT(6CH)
SINGLE
CENTER CENTER
S VIDEO
VIDEO
OUT
SURROUND
SUB
WOOFER
SUB
WOOFER
FRONT SURROUND SUR. BACK
MULTI CH
INPUT
ZONE 2
PRE OUT
VIDEO
OUTIN
GND
FRONT B/ZONE2/
FRONT A
CENTER
SURROUND
PRESENCE
EXTRA SP
TRIGGER
COMPONENT VIDEO
AC OUTLETS
SPEAKERS
HDMI
AUDIO
ANTENNA
AM
GND
FM
UNBAL
DIGITAL INPUT
DIGITAL
OUTPUT
XMDOCK
OUT
REMOTE
+12V
15mA MAX.
IN OUT
SURROUND BACK/BI-AMP
SINGLE
OPTICAL COAXIAL
DTV/CBL OUTIN2
75
L
R
L
R
LR
1 2 3 4 5 6
L
R
L L
R R
YP B P R
YP B P R
DVD IN1
TRIGGER
ANTENNA
AM
GND
FM
UNBAL
REMOTE
+12V
15mA MAX.
IN OUT
75
XM jack
(U.S.A. and Canada
models only)
Connect the XM Mini-
Tuner Dock (sold
separately).
☞ P. 53
DOCK terminal
Connect a Yamaha iPod
universal dock
(sold separately).
☞ P. 23
AUDIO jacks
Connect the analog audio cable
plugs.
☞ P. 18-21
MULTI CH INPUT jacks
Connect the input source
component equipped with the
multi-channel output jacks.
☞ P. 22
ZONE 2 OUT jacks
Connect the amplifier in Zone 2.
☞ P. 89
PRE OUT jacks
Connect external amplifiers and an
active subwoofer.
☞ P. 22
VOLTAGE SELECTOR
(Asia and General models
only)
☞ P. 4
HDMI connectors
Connect the HDMI components.
☞ P. 16
TRIGGER OUT
Outputs the control signals to external
components.
REMOTE IN/OUT jacks
Connect the remote control
input and output jacks of the
Yamaha components.
☞ P. 23
Speaker terminals
Connect the speakers.
☞ P. 13
Video jacks
Connect the video cable
plugs.
☞ P. 18-20
AC OUTLET(S)
☞ P. 24
ANTENNA terminals
Connect the FM and AM
antenna.
☞ P. 24
DIGITAL INPUT/OUTPUT
jacks
Connect the digital audio
cable plugs.
☞ P. 19-21

Yamaha RX-V661 Specifications

General

Channels	7.1
HDMI Inputs	2
HDMI Outputs	1
Component Video Inputs	3
Component Video Outputs	1
Analog Audio Inputs	6
FM/AM Tuner	Yes
Dolby Digital	Yes
DTS	Yes
Response Bandwidth	10 Hz - 100 kHz
Signal-To-Noise Ratio	100 dB
Input Impedance	47 kOhm
Input Sensitivity	200 mV
Audio D/A Converter	192kHz/24-bit
Surround System Class	7.1 channel
Digital Sound Processor (DSP)	Yes
DSP Preset Qty	17
HDMI Switching	Yes
Output Impedance / Channel	8 Ohm
Frequency Response	10 Hz - 100 kHz
Tuner Bands	AM/FM
Preset Station Qty	40
Surround Sound	Yes
HDMI Version	1.2a
Digital Audio Inputs	4 Optical, 2 Coaxial
Additional Features	XM Ready
Video Inputs	Component
Video Outputs	Component
Audio Outputs	Headphones
Output Power / Channel	90 W
Width	17.1 in
Depth	16.75 inches
