Connections
Connect your TV (or projector) to the HDMI OUT jack,
the COMPONENT VIDEO MONITOR OUT jacks, the S
VIDEO MONITOR OUT jack or the VIDEO MONITOR
OUT jack of this unit.
y
You can choose to play back HDMI audio signals on this unit or
on another HDMI component connected to the HDMI OUT jack
of this unit. Use the “SUPPORT AUDIO” parameter in “SOUND
MENU” to select the component to play back HDMI audio
signals (see page 77).
• Some video monitors connected to this unit via a DVI
connection fail to recognize the HDMI audio/video signals
being input if they are in the standby mode. In this case, the
HDMI indicator flashes irregularly.
• When you connect your TV monitor or projector via HDMI
connection, the OSD does not appear. In such cases, connect the
TV monitor or projector via component, S-video or video
connection.
• Connect the input source components to the HDMI IN 1 or
HDMI IN 2 jack to display the video images on the video
monitor connected to the HDMI OUT jack.

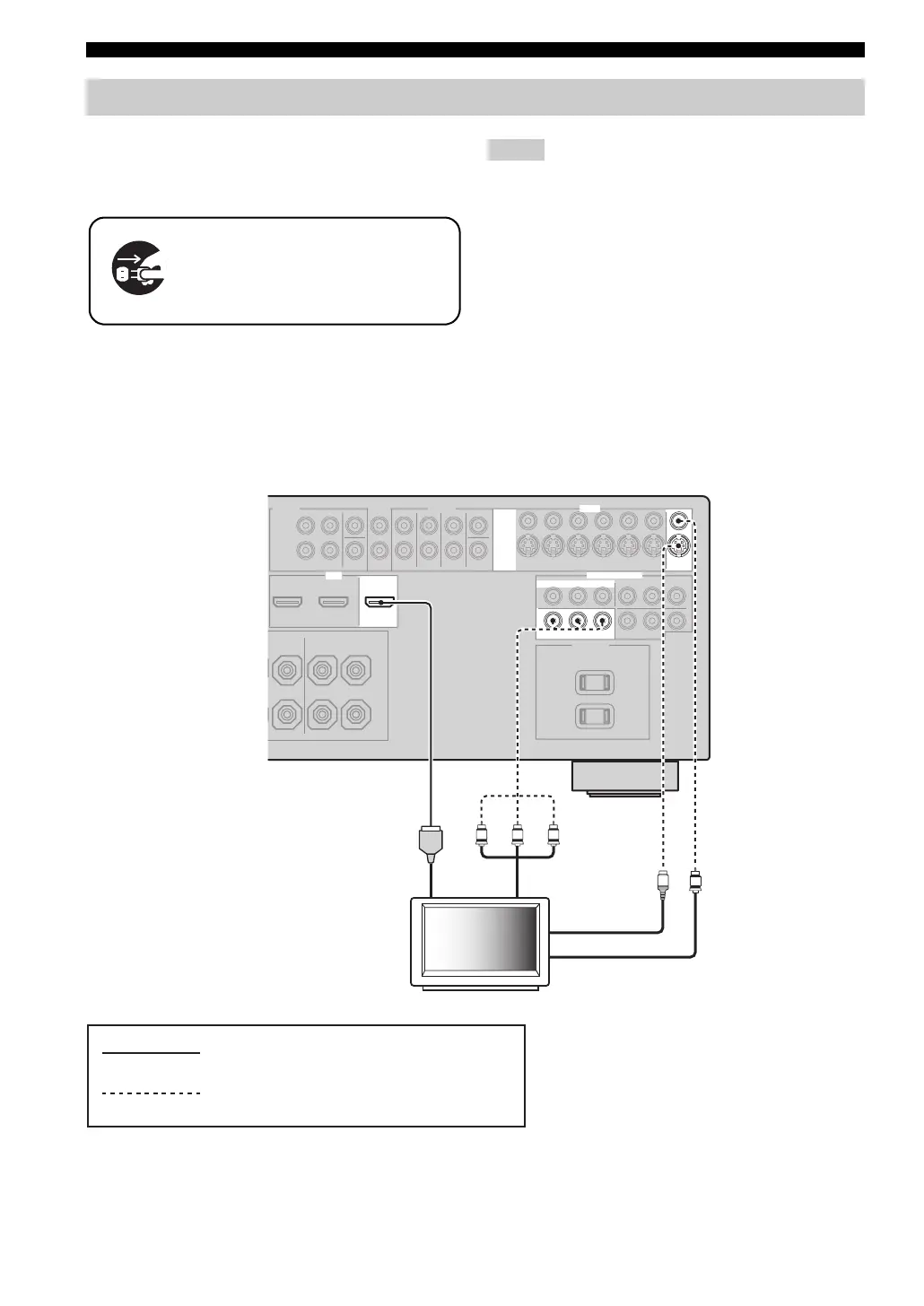

Connecting a TV monitor or projector
Make sure that this unit and other
components are unplugged from the
AC wall outlets.
Notes
MONITOR OUT
MONITOR
OUT
S VIDEO
VIDEO
VIDEO
COMPONENT VIDEO
HDMI
OUT
YP B P R
PR PB
V
S
Y
TV (or projector)
Video in
Component video in
S-video in
HDMI in
indicates recommended connections
indicates alternative connections
