OIL PUMP AND BALANCER GEAR
5-54
EAS1SL5266
OIL PUMP AND BALANCER GEAR

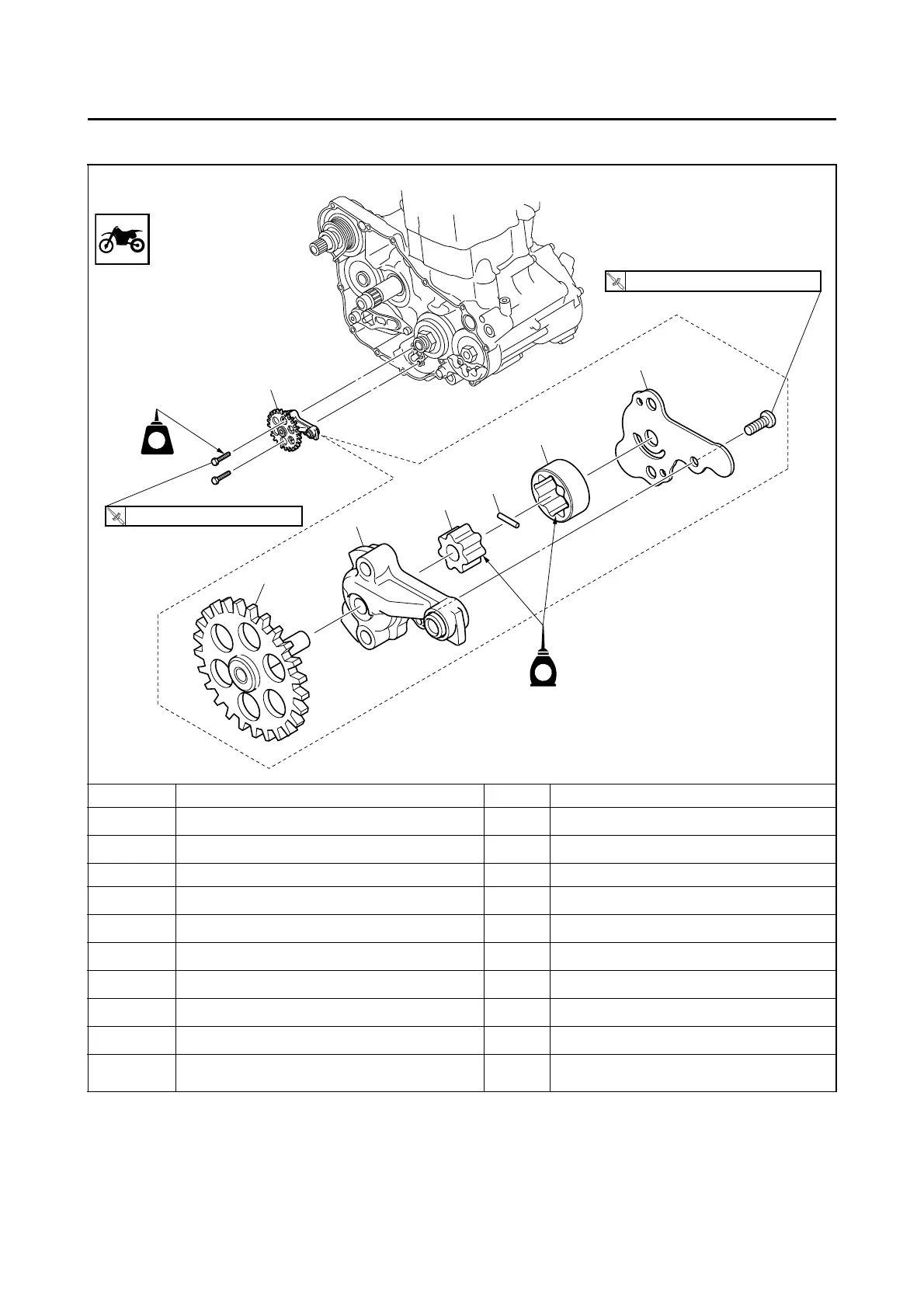

Removing the oil pump
Order Part name Q’ty Remarks
Primary driven gear Refer to “CLUTCH” on page 5-37.
Right crankcase cover Refer to “CLUTCH” on page 5-37.
1 Oil pump assembly 1
2 Oil pump cover 1
3 Outer rotor 1
4 Dowel pin 1
5 Inner rotor 1
6 Oil pump drive shaft 1
7 Rotor housing 1
For installation, reverse the removal proce-
dure.
2.0 Nm (0.20 m
•
kgf, 1.4 ft
•
Ibf)
T
.R
.
5 Nm (0.5 m
•
kgf, 3.6 ft
•
Ibf)
T
.R
.
LT
E
3
2
1
4
5
7
6
