THROTTLE BODY
7-5
EAS1SL5315

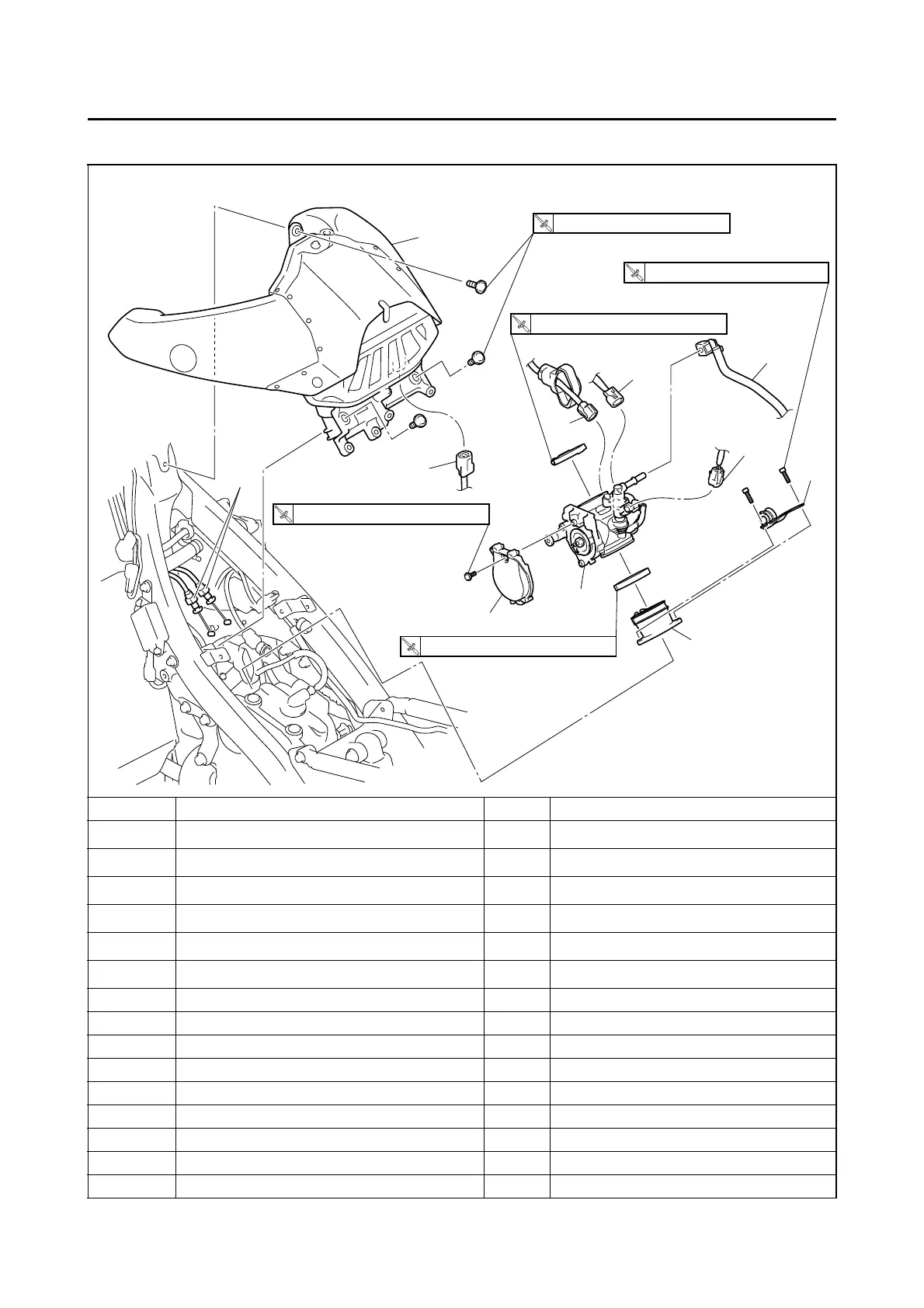

THROTTLE BODY
Removing the throttle body
Order Part name Q’ty Remarks
Seat Refer to “GENERAL CHASSIS” on page 4-1.
Side cover (left/right) Refer to “GENERAL CHASSIS” on page 4-1.
Air scoop (left/right) Refer to “GENERAL CHASSIS” on page 4-1.
Fuel tank Refer to “FUEL TANK” on page 7-1.
ECU Refer to “ENGINE REMOVAL” on page 5-1.
Ignition coil Refer to “ENGINE REMOVAL” on page 5-1.
1 Intake air temperature sensor coupler 1 Disconnect.
2 Air filter case 1
3 Fuel injector coupler 1 Disconnect.
4 Intake air pressure sensor coupler 1 Disconnect.
5 Throttle position sensor coupler 1 Disconnect.
6 Throttle cable cover 1
7 Throttle cable 2
8 Fuel hose 1
9 Exhaust pipe bracket 1
2
1
6
10
11
9
8
3
7
5
4
3.5 Nm (0.35 m
•
kgf, 2.5 ft
•
Ibf)
T
.R
.
3.5 Nm (0.35 m
•
kgf, 2.5 ft
•
Ibf)
T
.R
.
7 Nm (0.7 m
•
kgf, 5.1 ft
•
Ibf)
T
.
R
.
3.0 Nm (0.30 m
•
kgf, 2.2 ft
•
Ibf)
T
.R.
10 Nm (1.0 m
•
kgf, 7.2 ft
•
Ibf)
T
.R
.
To Next Page
