3. COMPONENT NAMES AND FUNCTIONS

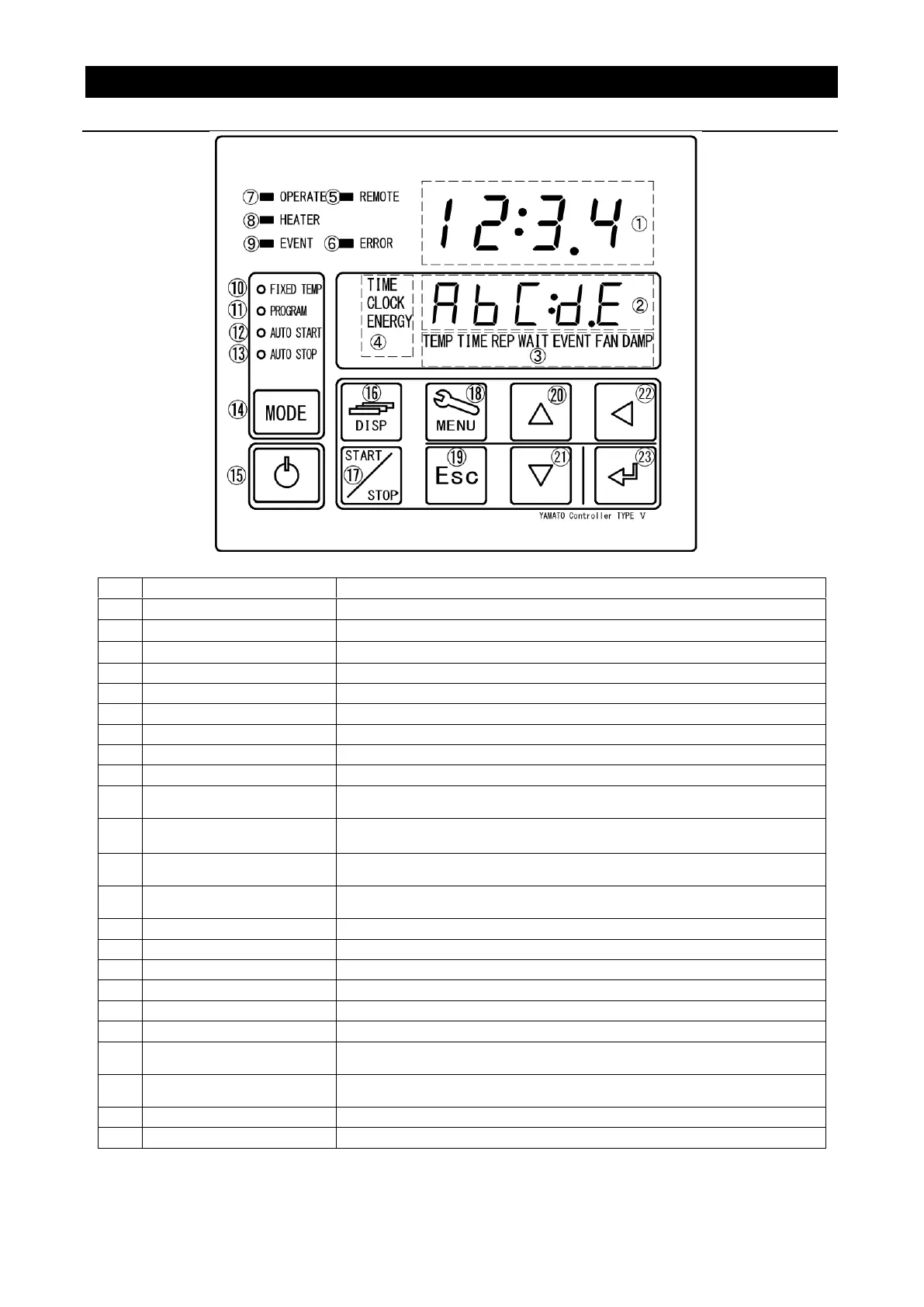

Control Panel
Readout for chamber temperature, error code, etc.
Readout for temperature setting, clock, timer, etc
Illuminates (one or more) to show which function is currently running or active
Illuminates (one at a time) to show which mode is currently running.
Illuminates while remote comm (optional item) transmission is in progress.
Illuminates when an error has occured.
Illuminates while in operation. Flashes in operation standby mode.
Illuminates when heaters are on and drawing power.
Illuminates when event output (optional item) is transmitted.
FIXED TEMP Indicator
Lamp
Illuminates while constant temperature operation is in progress.
Illuminates while programmed operation is in progress. Flashes while entering
program settings.
AUTO START Indicator
Lamp
Illuminates while auto start operation is in progress.
Illuminates while auto stop operation is in progress.
Press to switch between operation modes, ⑩~⑬ on control panel.
Press and hold to switch between unit idle and unit standby.
Press to switch between monitoring options in lower display.
Press to start or stop an operation.
Press to switch between setting options.
Press to return to previous menu without finalizing settings
Press to increase setting value incrementally. Press and hold to increase
perpetually.
Press to decrease setting value incrementally. Press and hold to decrease
perpetually
Press to move cursor left.
Press to finalize setting items
