Yealink SIP-T19P User Manual

User Guide for the SIP-T19P IP Phone
28

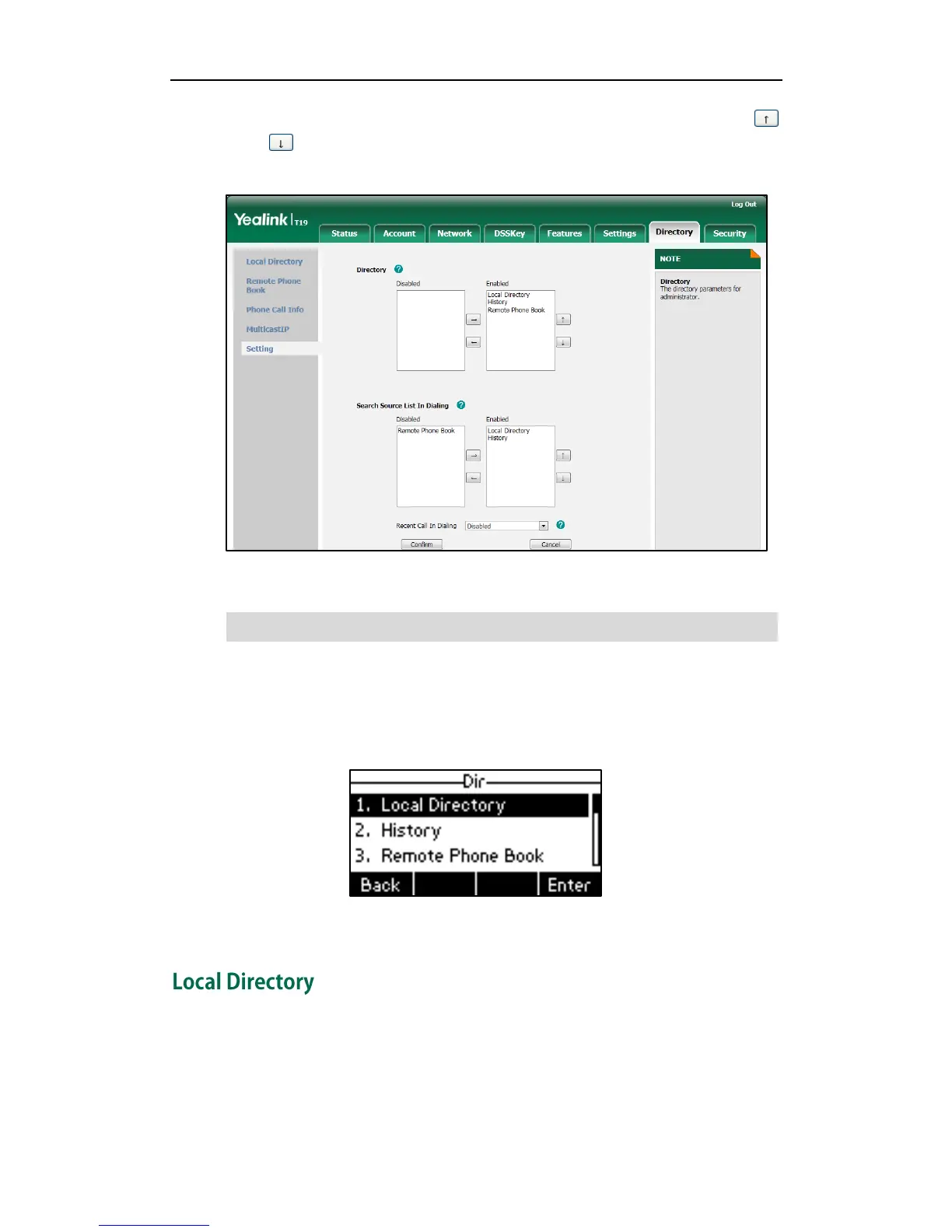

5. To adjust the display order of enabled lists, select the desired list and then click
or .
The LCD screen displays the list(s) in the adjusted order.
6. Click Confirm to accept the change.
Note
To check the directory via phone user interface:
1. Press the Dir soft key when the phone is idle.
The LCD screen displays the list(s) in the directory.
If there is only one list in the directory, press the Dir soft key to enter this list directly.
The built-in phone directory can store contact names and numbers. You can store up to
1000 contacts and 6 groups (including the default groups All Contacts, Company, Family
and Friend) in your phone's local directory; add new contacts and groups; edit, delete
or search for a contact; or simply dial a contact number from the local directory.
Directory is configurable via web user interface only.

Yealink SIP-T19P Specifications

General

Speakerphone	Yes
Voice codecs	CNG, G.711, G.723, G.726, G.729ab, VAD
Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Front camera	No
Display resolution	132 x 64 pixels
Lines quantity	- lines
Phonebook capacity	1000 entries
Number of VoIP accounts	1
Security algorithms	802.1x RADIUS, AES, HTTPS
Networking standards	IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3af, IEEE 802.3u
Supported network protocols	IPv6
Ethernet LAN (RJ-45) ports	2
Number of handles included	- pc(s)
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %

Weight and Dimensions

Depth	188 mm
Width	185 mm
Height	143 mm
