Yealink SIP-T41S User Manual

Basic Call Features
151
Picking Up a Call Directly
Procedure:
1. Pick up the handset, press the line key or the Speakerphone key.

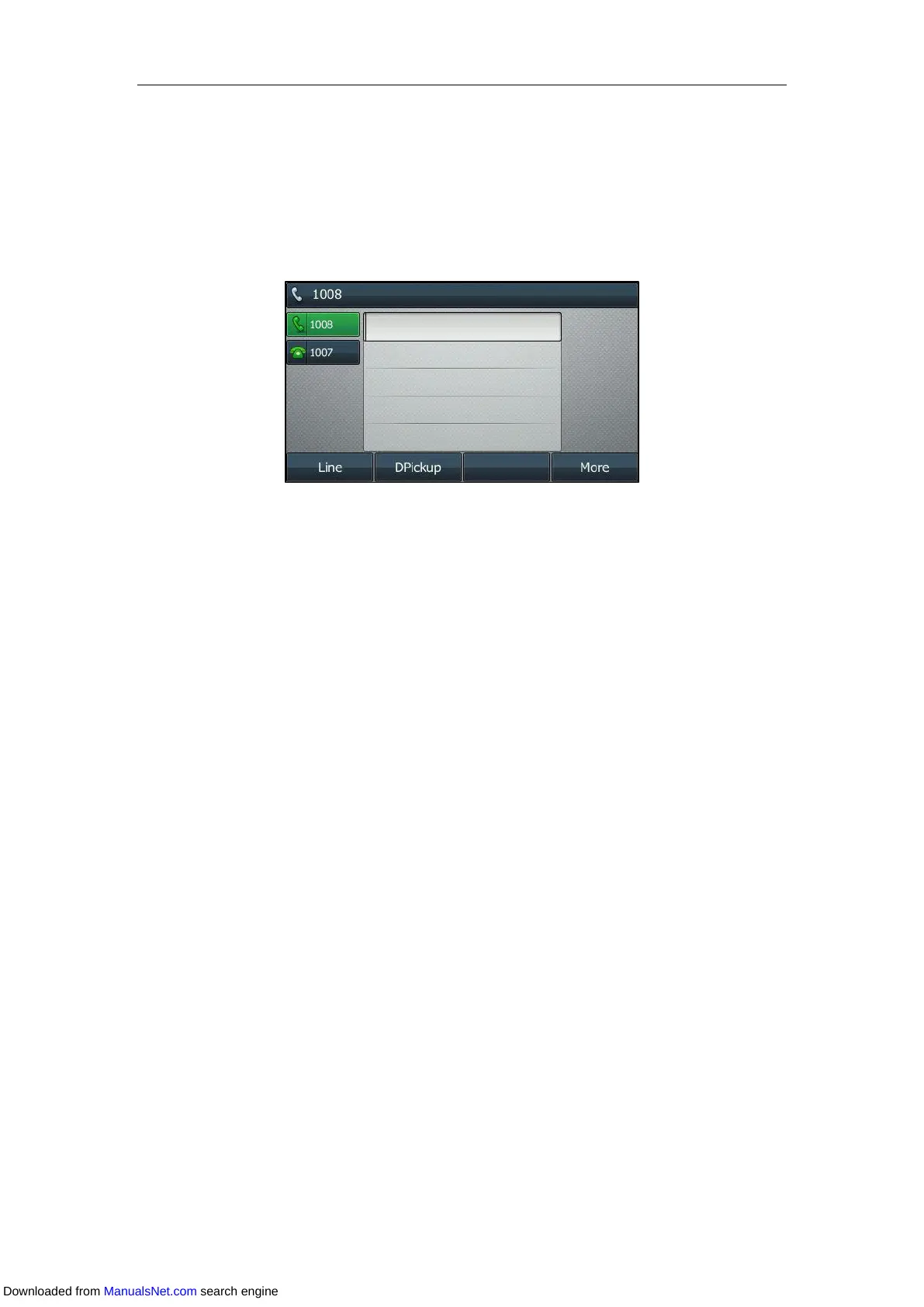

The DPickup appears on the LCD screen (You may need to press the More soft key to see
the DPickup soft key).
2. Press DPickup on your phone when the target phone receives an incoming call.
3. Enter the phone number which is receiving an incoming call.
4. Press DPickup again.
The call is answered on your phone.
You can also use a Directed Pickup key (refer to Configuring a Directed Pickup Key) or BLF/BLF
List key (refer to Configuring a BLF Key/Configuring BLF List Settings) to pick up a call directly.
Group Call Pickup
Configuring the Group Call Pickup
Procedure:
1. Click Features->Pick up & Park.
2. Select Enabled from the Group Call Pickup field.
Downloaded from ManualsNet.com search engine

Yealink SIP-T41S Specifications

General

Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Keypad illumination	Yes
Wi-Fi	No
Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Supported network protocols	SIP v1, SIP v2, LLDP/CDP/DHCP, OpenVPN, IEEE802.1X, IPv6, FTP/TFTP/HTTP/HTTPS
Volume control	Digital
Number of programmable keys	6
Lines quantity	6 lines
Phonebook capacity	1000 entries
Dual-Tone Multi-Frequency (DTMF) modes	In-band, Out-of band, SIP info
Input frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	1.2 A
AC adapter output voltage	5 V
Display diagonal	2.7 \
Display resolution	192 x 64 pixels
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Voice codecs	CNG, G.711Mu, G.711a, G.723.1, G.726, G.729ab, VAD, iLBC
Certification	CE
Cables included	LAN (RJ-45)
Number of handles included	1 pc(s)
Harmonized System (HS) code	85171800

Weight and Dimensions

Depth	189 mm
Width	212 mm
Height	175 mm
Package depth	223 mm
Package width	246 mm
Package height	120 mm
