1-208
IM 04L51B01-01EN
Note
• Do not carry out the following operations while the GX/GP is reconfiguring. Doing so may cause
damage.
Turn the power off and on.
Insert or remove modules.

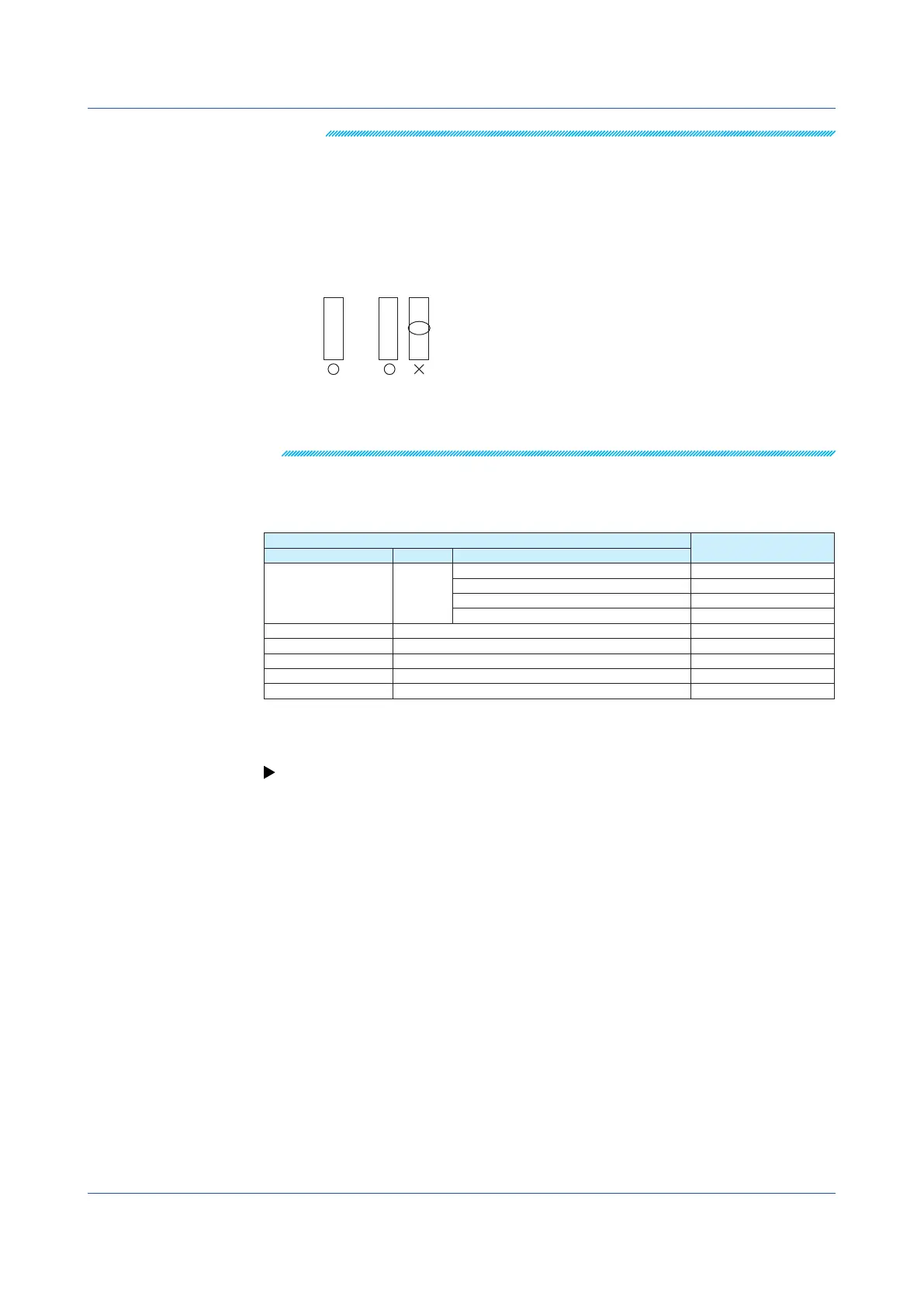

• If the total number of I/O channels of the installed modules exceeds 100 on the GX10/GP10/
GX20-1/GP20-1 or 500 on the GX20-2/GP20-2, no additional modules can be reconfigured.
For example, if the maximum number of I/O channels are assigned and the last channel is
assigned to an intermediate channel of a module, that module (channel) and subsequent
modules (channels) will not be reconfigured or recognized.
1
10
100
81
90
91
Module 1
Module n
:
:
:
• • •
:
Maximum number of I/O channels
• A single DI/DO module (GX90WD) can be installed in the GX/GP main unit and also in the
expandable I/O.
• Up to a total of 10 DO modules (GX90YD) and DI/DO modules (GX90WD) can be installed in a
system.
ConditionsontheCombinationofFirmwareVersionsandModules
The module versions that can be detected depending on the firmware version are as follows.
If an installed module cannot be detected, update the firmware.
Module FirmwareVersion
Name Model Type
Analog Input GX90XA -U2 (DCV/TC/RTD/DI) R1.01.X or later
-T1 (DCV/TC/DI) R1.03.X or later
-C1 (Current (mA)) R2.01.X or later
-L1 (Low withstand voltage DCV/TC/DI) R2.01.X or later
Digital Input GX90XD R1.01.X or later
Digital Input/Output GX90WD R2.01.X or later
Digital Output GX90YD R1.01.X or later
Pulse Input GX90XP R3.01.X or later
Expansion Module GX90EX R2.01.X or later
1.25.3 Adjusting the Touch Screen
See page 5-7 in section 5.1.4, “Adjusting and Checking the Touch Screen”.
1.25InitializingandCalibratingtheSystem(Initialization,reconfiguration,touchscreencalibration)
