York R-410A Technical Guide

505428-YTG-V-0417
96 Johnson Controls Unitary Products

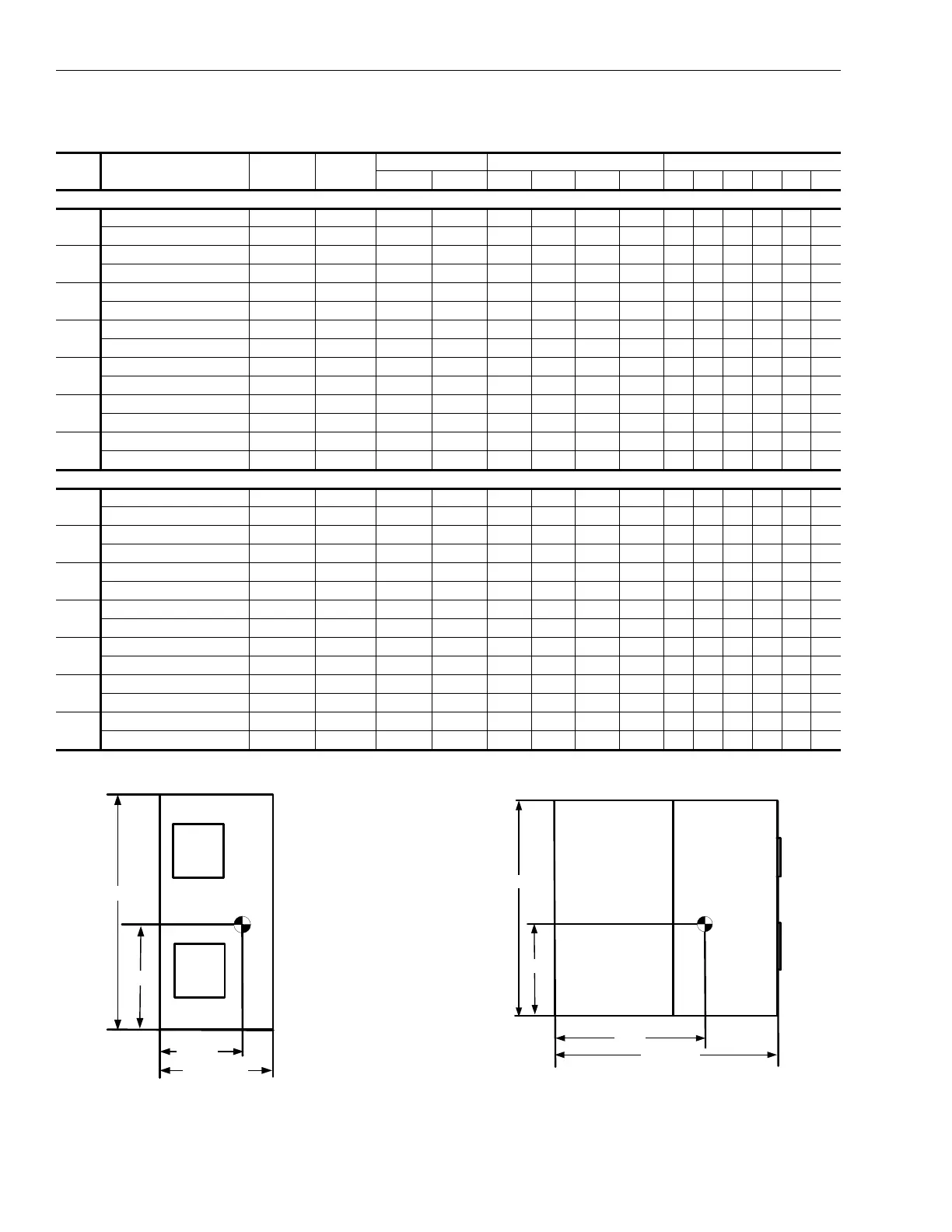

Corner Weights & Center of Gravity NL/NM 090 Thru 240 Units
Model
Drive
Option
Shipping
Wt (lb)
Operating
Wt (lb)
Center of Gravity 4 point Load Location (lb) 6 point Load Location (lb)
CG XCG YABCDABCDEF
Vertical Airflow
NL090
Std. Mtr. and Drv. 542 516 16.2 26.5 113 132 146 125 73 81 90 100 90 81
High Static Mtr. and Drv. 549 523 16.2 26.5 114 133 148 127 74 82 91 102 91 83
NL120
Std. Mtr. and Drv. 586 563 15.4 26.6 130 138 152 143 86 89 93 102 98 95
High Static Mtr. and Drv. 597 574 15.4 26.6 132 140 155 146 87 91 94 104 100 97
NM120
Std. Mtr. and Drv. 588 565 15.4 26.8 131 139 152 143 87 90 94 102 98 94
High Static Mtr. and Drv. 599 576 15.4 26.8 133 141 155 146 88 92 95 104 100 96
NL180
Std. Mtr. and Drv. 794 762 17.9 34.3 161 191 223 188 104 116 131 153 136 122
High Static Mtr. and Drv. 820 788 17.9 34.3 166 197 231 195 108 120 135 158 141 126
NM180
Std. Mtr. and Drv. 794 762 17.9 34.3 161 191 223 188 104 116 131 153 136 122
High Static Mtr. and Drv. 820 788 17.9 34.3 166 197 231 195 108 120 135 158 141 126
NL240
Std. Mtr. and Drv. 932 897 15.7 42.4 184 202 267 244 121 128 136 180 170 160
High Static Mtr. and Drv. 963 928 15.6 42.3 191 207 276 254 125 132 140 187 176 167
NM240
Std. Mtr. and Drv. 932 897 15.7 42.4 184 202 267 244 121 128 136 180 170 160
High Static Mtr. and Drv. 963 928 15.6 42.3 191 207 276 254 125 132 140 187 176 167
Horizontal Airflow
NL090
Std. Mtr. and Drv. 542 516 30.6 26.5 120 125 138 133 79 82 84 93 91 88
High Static Mtr. and Drv. 549 523 30.8 26.5 121 127 141 134 80 83 86 95 92 89
NL120
Std. Mtr. and Drv. 586 563 30.5 26.6 132 136 150 145 87 89 91 101 98 96
High Static Mtr. and Drv. 597 574 30.8 26.6 133 140 155 147 88 91 94 104 100 97
NM120
Std. Mtr. and Drv. 588 565 30.5 26.8 133 137 150 145 88 90 92 100 98 96
High Static Mtr. and Drv. 599 576 30.7 26.8 134 141 154 147 89 92 95 104 100 97
NL180
Std. Mtr. and Drv. 794 762 33.7 34.3 172 179 210 201 114 117 121 141 137 133
High Static Mtr. and Drv. 820 788 34.3 34.3 174 189 221 204 115 121 127 149 142 135
NM180
Std. Mtr. and Drv. 794 762 33.7 34.3 172 179 210 201 114 117 121 141 137 133
High Static Mtr. and Drv. 820 788 34.3 34.3 174 189 221 204 115 121 127 149 142 135
NL240
Std. Mtr. and Drv. 932 897 30.5 42.4 190 196 259 251 126 129 131 174 170 167
High Static Mtr. and Drv. 963 928 30.9 42.3 193 205 273 257 127 133 138 184 176 169
NM240
Std. Mtr. and Drv. 932 897 30.5 42.4 190 196 259 251 126 129 131 174 170 167
High Static Mtr. and Drv. 963 928 30.9 42.3 193 205 273 257 127 133 138 184 176 169
CG
LENGTH
WIDTH
A
D
FRONT
REAR
LEFT
RIGHT
DIM X
DIM Y
B
C
A
B
C
D
E
F
VERTICAL POSITION
CG
DIM X
DIM Y
LENGTH
WIDTH
A
D
FRONT
REAR
LEFT
RIGHT
B
C
A
B
C
D
E
F
HORIZONTAL POSITION
