JOHNSON CONTROLS

116

FORM 150.72-ICOM6

ISSUE DATE: 08/03/2022

SECTION 6 – COMMISSIONING

Leave all other settings not listed in the following table in their default values.

TABLE 13 - DRIVE PROGRAMMING PARAMETERS

PARAMETER CODE DESCRIPTION SETTING

9902 Function Select 0

9905 Motor Rated Voltage

See motor nameplate

(208 V, 230 V, 460 V)

9906 Motor Rated Current See motor nameplate

9907 Motor Frequency

See motor nameplate

(50 Hz, 60 Hz)

1103 Command Source Mode 0

1300 Analog Input 1 Signal Format U 0-10

1301 Analog Input 1 O󰀨set 23.5

1302 Analog Input 1 Scaling 1850

2007 Min Frequency Limit 0

2008 Max Frequency Limit

See motor nameplate

(50 Hz, 60 Hz)

2102 Stop Mode 0

2202 Accel Time 30.0

2203 Decel Time 30.0

2601 Energy Optimizer 0

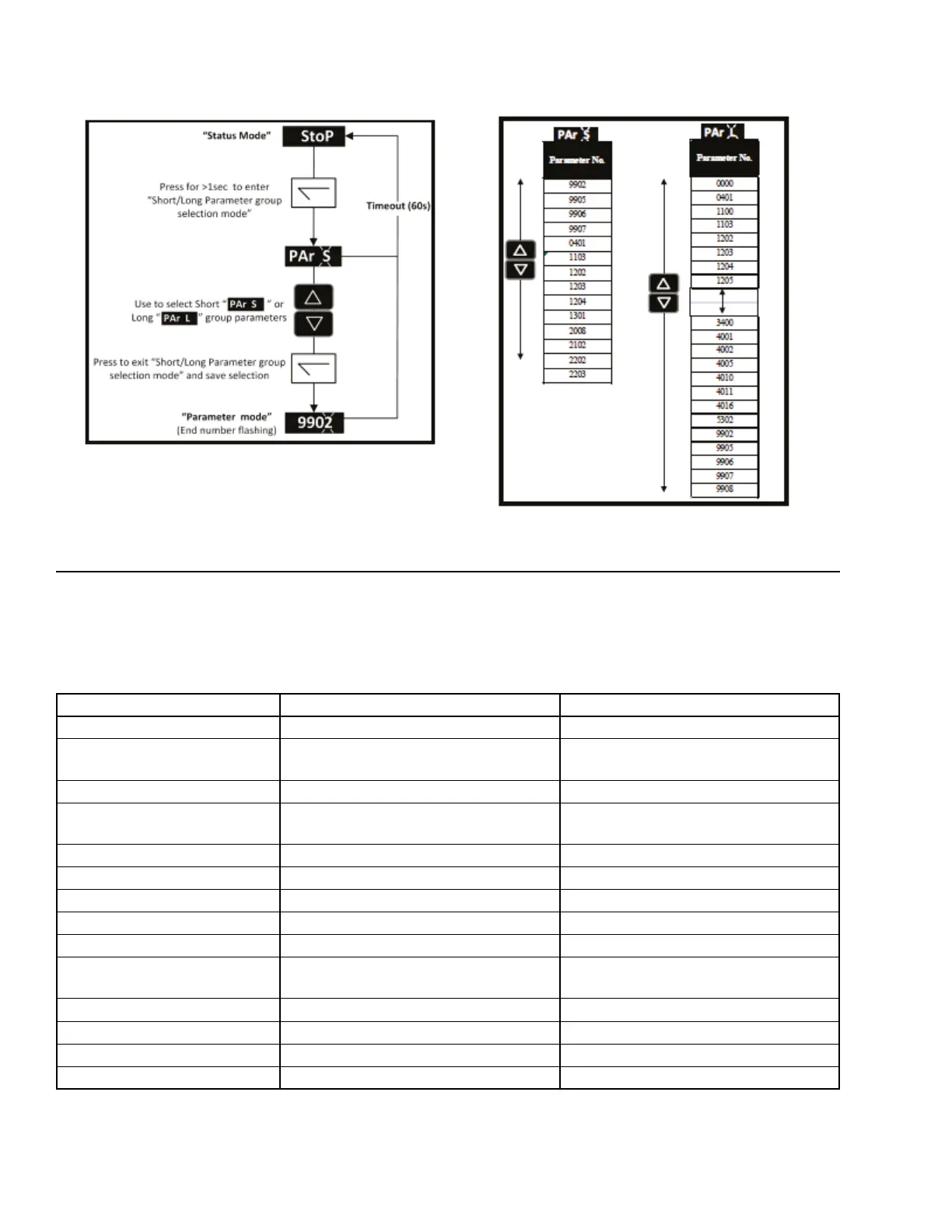

GROUP NAVIGATION PARAMETER STRUCTURE

LD29434

FIGURE 37 - DRIVE DISPLAY
