SECTION 6 – COMMISSIONING

DETERMINING PROPER OIL LEVELS

The following charts list the proper oil levels in tandem

and trio compressor manifold sets.

TANDEM

COMPRESSOR

STATUS

OIL LEVEL

1 on 1/8 to full SG

2 on Bottom of SG

1 o󰀨 Bottom of SG

2 on 1/8 to full SG

1 on 1/8 to full SG

2 o󰀨 Bottom of SG

TRIO

COMPRESSOR

STATUS

OIL LEVEL

1 on 1/8 to full SG

2 on Bottom of SG

3 on 1/8 to full SG

1 on 1/8 to full SG

2 o󰀨 Bottom of SG

3 on 1/8 to full SG

1 o󰀨 Bottom of SG

2 on Bottom of SG

3 on 1/8 to full SG

1 on 1/8 to full SG

2 on Bottom of SG

3 o󰀨 Bottom of SG

1 on 1/8 to full SG

2 o󰀨 Bottom of SG

3 o󰀨 Bottom of SG

1 o󰀨 Bottom of SG

2 o󰀨 Bottom of SG

3 on 1/8 to full SG

1 o󰀨 Bottom of SG

2 on 1/8 to full SG

3 o󰀨 Bottom of SG

1 2

LD29440

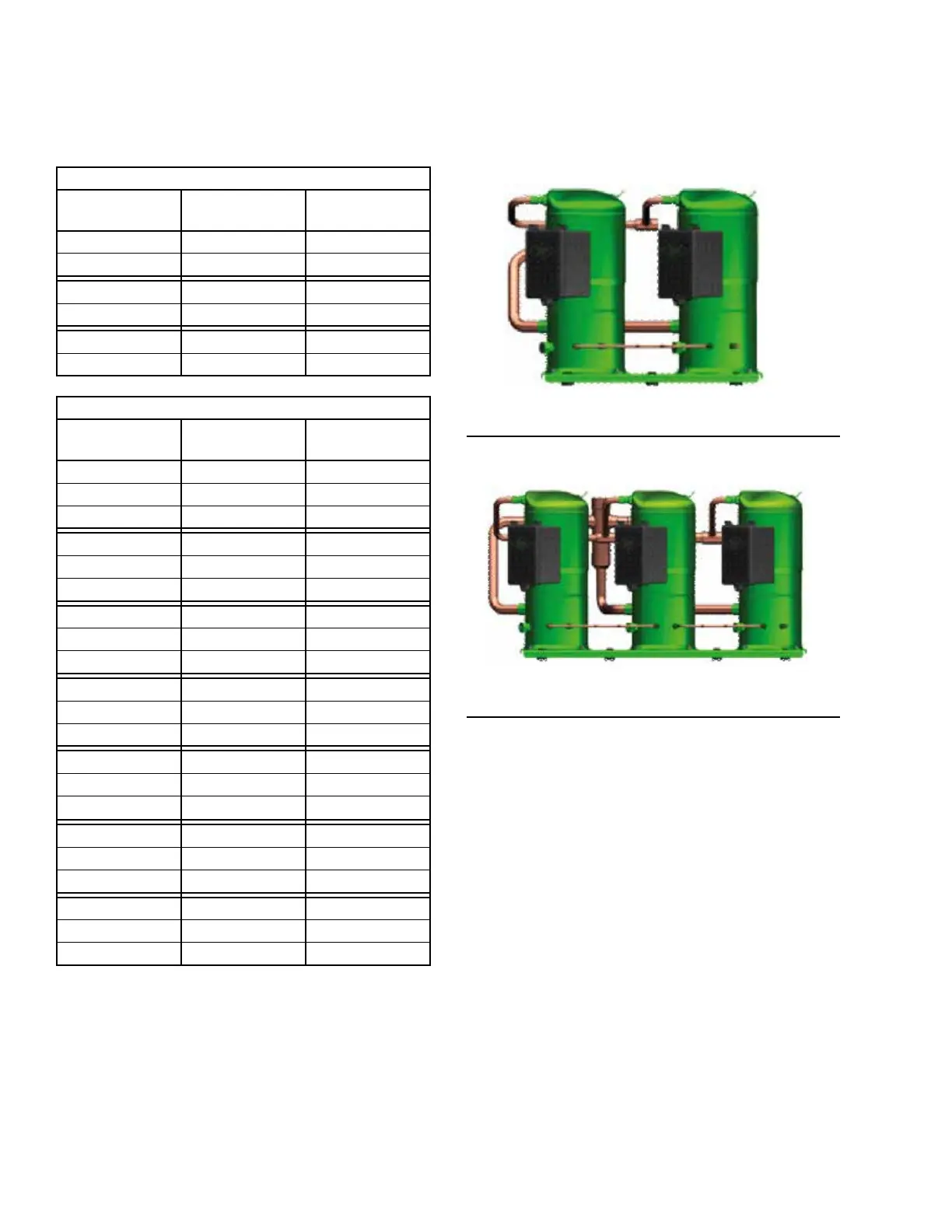

FIGURE 39 - TANDEM SET

123

LD29441

FIGURE 40 - TRIO SET
