SECTION 3 - OPTIVIEW™ CONTROL CENTER FUNCTIONS AND NAVIGATION
OVERVIEW
This screen displays the slot numbers of the commonly
monitored parameters. The slot numbers for the re-
mainder of the available parameters are listed on the
Master Slot Numbers List that follows.
From these lists, select up to six parameters to be trend-
ed. Return to the Trend Setup Screen and enter the pa-
rameters Slot Numbers into Data Points 1 through 6.
DISPLAY ONLY
Slot Numbers
These are the slot numbers of the most commonly used
parameters.
PROGRAMMABLE
Page Down
Access Level Required: OPERATOR
Scroll down in the displayed data.
Page Up
Access Level Required: OPERATOR
Scroll up in the displayed data.
Print
Access Level Required: OPERATOR
Generates a list of the slot numbers of the available
parameters.
NAVIGATION
Home
Causes an instant return to the Home Screen.
Trend Setup
Causes a return to the Trend Setup Screen.

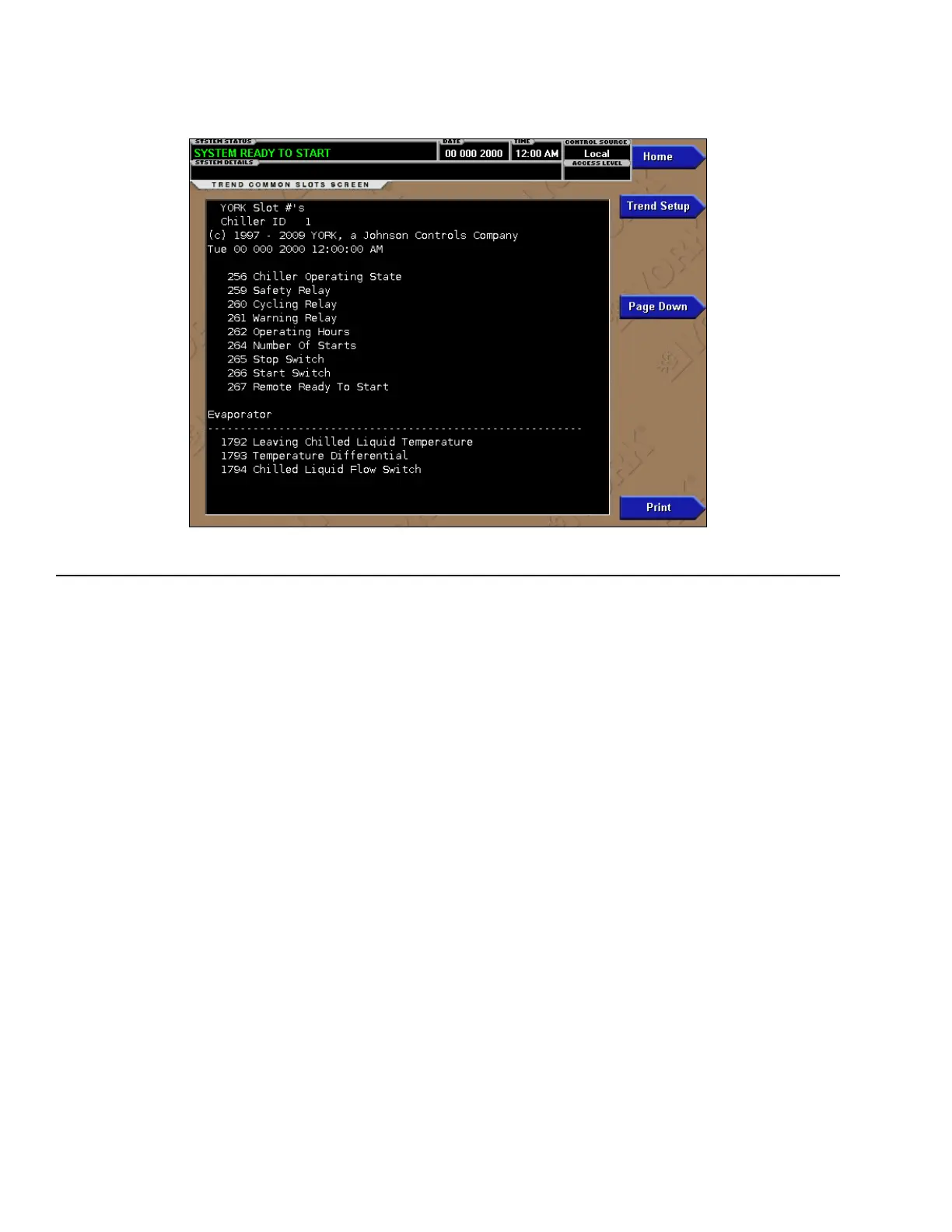

COMMON SLOTS SCREEN
LD14869
FIGURE 35 - COMMON SLOTS SCREEN
