ZXR102900ESeriesCongurationGuide

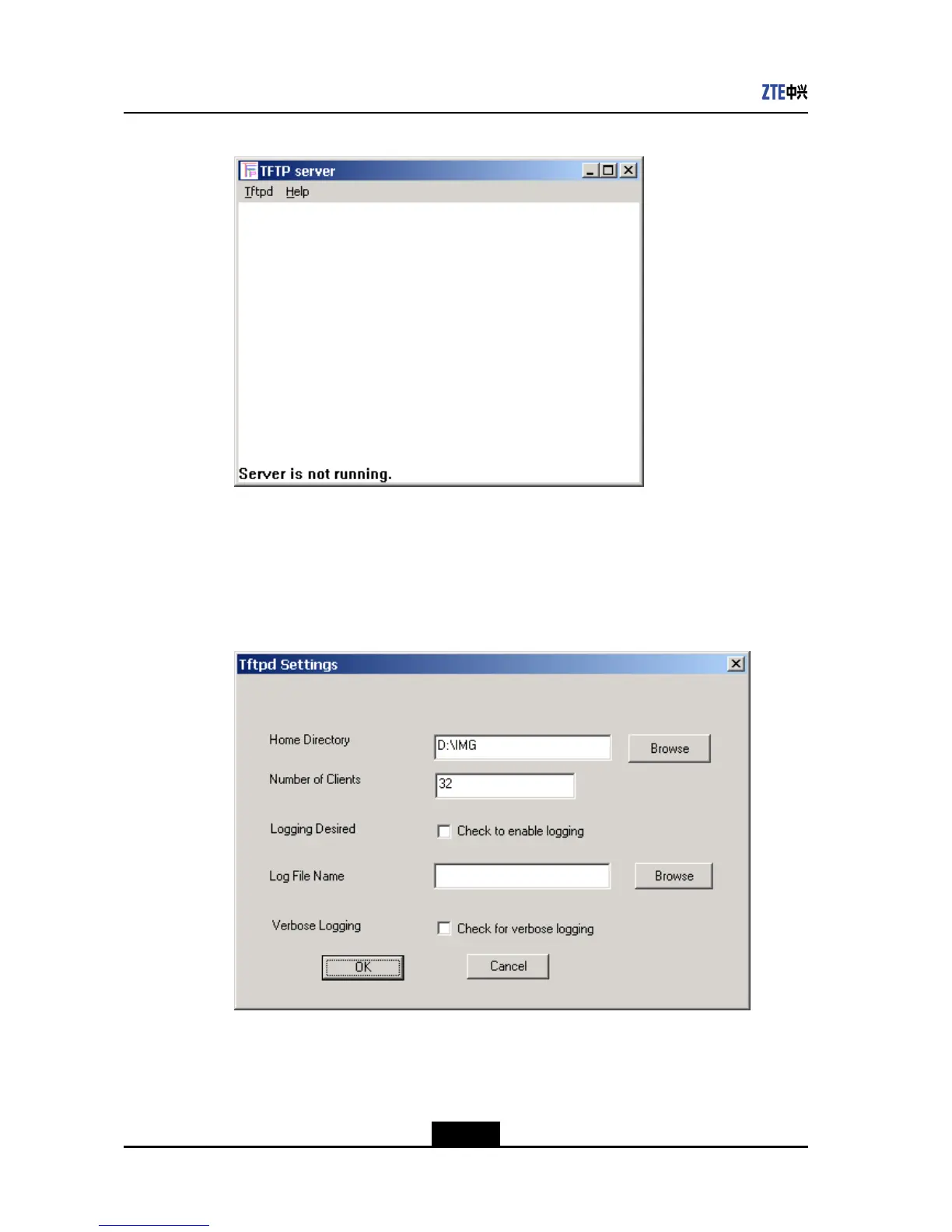

Figure3-1TFTPDServer
2.ClickTftpd>Congure,inthedialogboxthatappears,clickBrowseandselectthe
directorywiththeversionleorcongurationle,forexample,D:\IMG.
3.ClickthesecondBrowsetoselecttheloglename,clickOKtocompletethe
conguration,seeFigure3-2.
Figure3-2TftpdSettingsDialogBox
AftertheTFTPcongurationiscompleted,performtheTFTPoperationsontheswitch.
Fordetails,seethelatersections.
–EndofSteps–
3-4
SJ-20120409144109-002|2012-07-02(R1.0)ZTEProprietaryandCondential

Zte ZXR10 2928E-PS Specifications

General

Model	ZXR10 2928E-PS
Category	Switch
PoE	Yes
Switching Capacity	128 Gbps
MAC Address Table Size	16K
VLANs	4K
Jumbo Frame	9K
Dimensions	440 x 260 x 44 mm
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Power Supply	AC 100-240V
Power Consumption	400W (PoE Max)
Operating Humidity	10% to 90% (non-condensing)
Storage Humidity	5% to 95% RH
Ports	24 x 10/100/1000BASE-T, 4 x 1000BASE-X SFP
