ZXR103900A/3200ASeriesHardwareInstallationManual

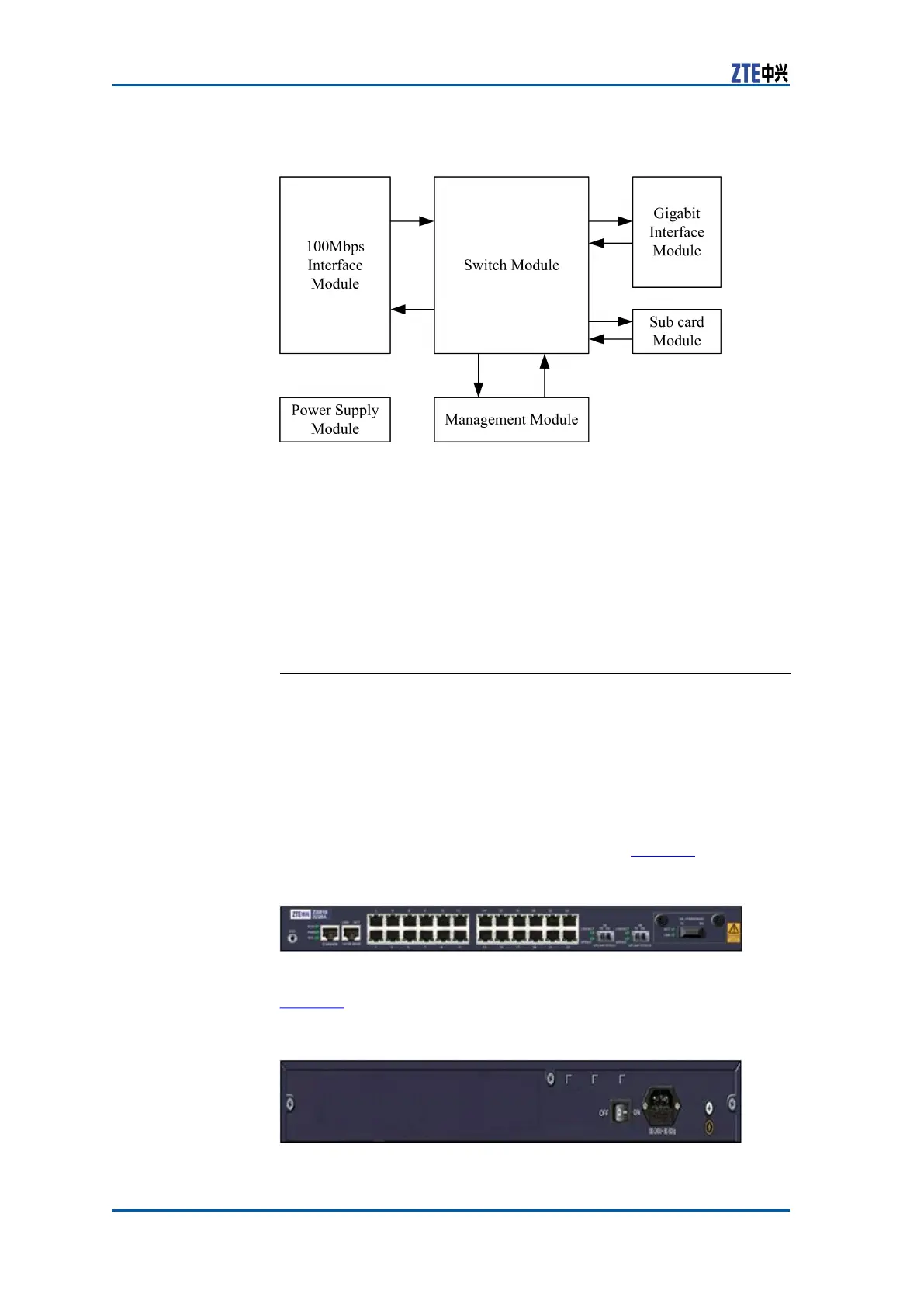

FIGURE1ZXR103900A/3200ASYSTEMPRINCIPLE
ZXR103900A/3200Asystemadoptsstandard19-inchplug-inbox,
whichcanbeinstalledoutsideseparatelyorwithinthestandard
cabinet.
HardwareStructure
ZXR103228A
ThechassisheightofZXR103228Ais1U(1U=44.45mm).ZXR10
3228Acansupport24100MpbsEthernetelectricalinterfacesand
2xedgigabitEthernetopticalinterfaces.Theelectricalinterface
isRJ45,supportingtwistedpairsofCAT5andabove.Theoptical
interfaceisSFP ,supportingvariousgigabitopticalmodulesmeet-
ingSFPstandard.Thereisoneslotonthefrontpanel,supporting
fourdifferentinterfacecards.
ThefrontpanelofZXR103228AisshowninFigure2.
FIGURE2ZXR103228AFRONTPANEL
ThebackplaneofACpowersupplyinZXR103228Aisshownin
Figure3
.
FIGURE3ZXR103228ABACKPLANE(AC)
10CondentialandProprietaryInformationofZTECORPORATION

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Zte ZXR10 3928A and is the answer not in the manual?

Zte ZXR10 3928A Specifications

General IconGeneral
ModelZXR10 3928A
CategorySwitch
MAC Address Table16K
Jumbo Frame9K
Operating Temperature0°C to 45°C
Storage Temperature-40°C to 70°C
Power SupplyAC 100-240V, 50/60Hz
VLAN4K VLAN
Storage Humidity5% to 95% (non-condensing)
Operating Humidity10% to 90% non-condensing
