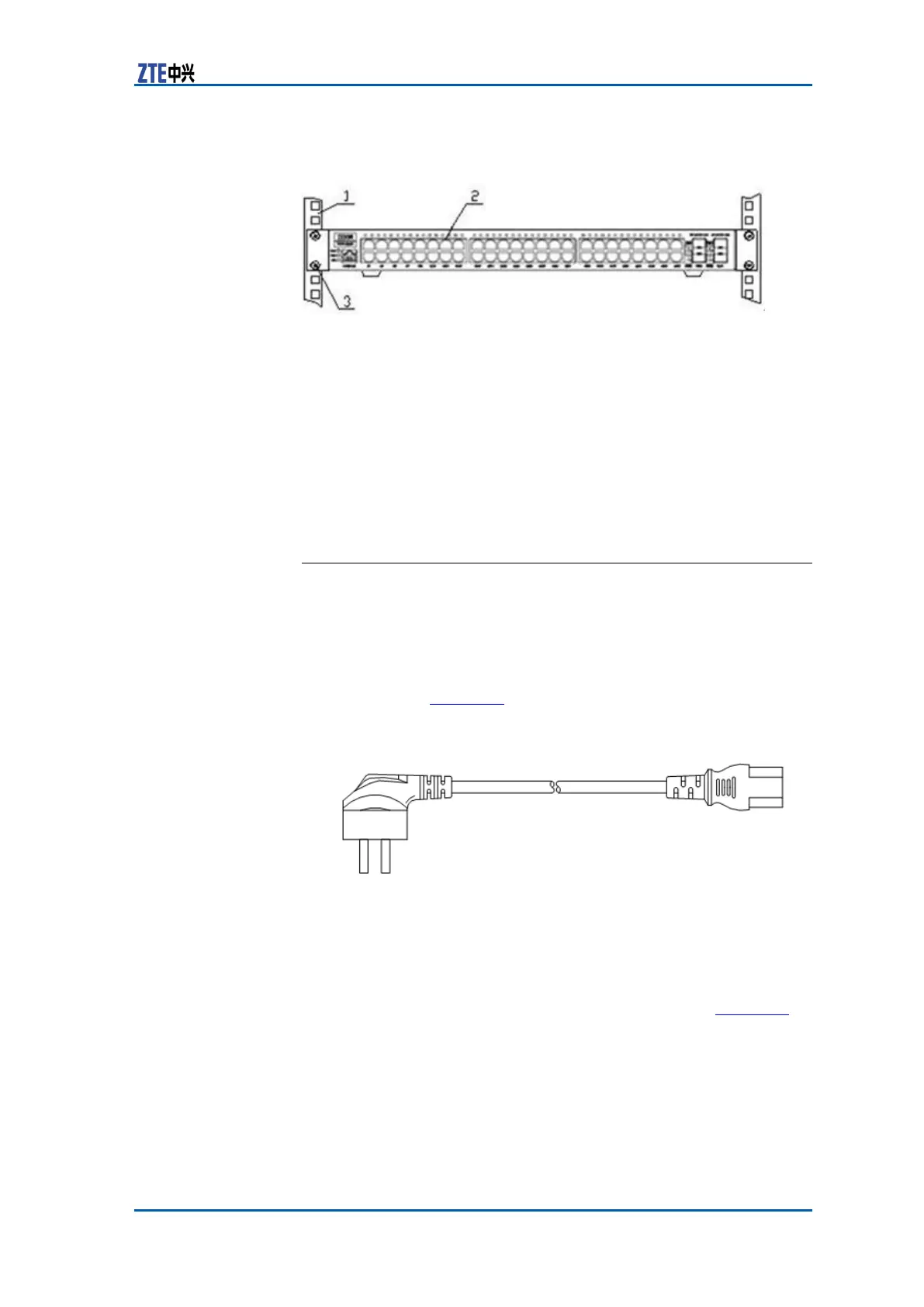

Chapter6InstallationandDebugging
FIGURE37FIXINGTHESWITCH
1.Rack
2.Case
3.Panelfastener
CableInstallation
ZXR103900A/3200Acablesconsistofthepowercable,console
cable,networkcableandber.
PowerCableInstallation
ThepowercablesconsistofACandDCpowercablesbasedonthe
powermodules:
1.ACpowercableinstallation
TheACpowercableadoptsthestandardprinterpowercable,
asshowninFigure38.
FIGURE38ACPOWERCABLE
OneendoftheACpowercableisconnectedtotheACpower
socketofZXR103900A/3200AACpowermoduleandtheother
endisconnectedtothe220VACpowersocket.
2.DCpowercableinstallation
i.DC-48VpowercableC-PWR-084isshowninFigure39
CondentialandProprietaryInformationofZTECORPORATION29
