ZXR10 ZSR V2 Series Router Product Description
64 ZTE Confidential & Proprietary
With horizontal slots, ZXR10 2800-4 is designed with 5 service slots, in which the
number 0-3 slots are for SPIUs and PIUs, and number 4 is for MPFU.
According to the size, the ZXR10 2800-4 supports three models of PIU.
 DPIU types: This is high-speed interface board, which bandwidth is upto 10 Gbps.
Size (width x height x deep) is: 176 mm x 20 mm x 175 mm (Single-high DPIU) or 40
mm x 176 mm x 176 mm (Double-hight DPIU), in which Single-high DPIU takes up 3
slot, Double-hight DPIU takes up combination slot 1 and 3.
 PIU types: This is general-speed interface board, which bandwidth is 1 Gbps. Size
(width x height x deep) is: 176 mm x 20 mm x 175 mm (Single-high PIU) or 40 mm x
176 mm x 176 mm (Double-hight PIU), in which Single-high PIU takes up 1 or 3 slots,
Double-hight PIU takes up combination slot 1 and 3.
 SPIU types: This is general-speed interface board, which bandwidth is 1 Gbps. Size
(width x height x deep) is: 77 mm x 20 mm x 182 mm, in which SPIU takes up 0 or 2
slots.
4.1.3 The Appearance of ZXR10 1800-2S/2S(G)/2S(W)
The chassis of 1800-2S/2S(G)/2S(W) is 1U (1U=44mm). The size of the device is
380mm (W) x43.6 (H) x200mm (D). The front view of the ZXR10 1800-2S/2S(G)/2S(W)
is as shown in the figure.

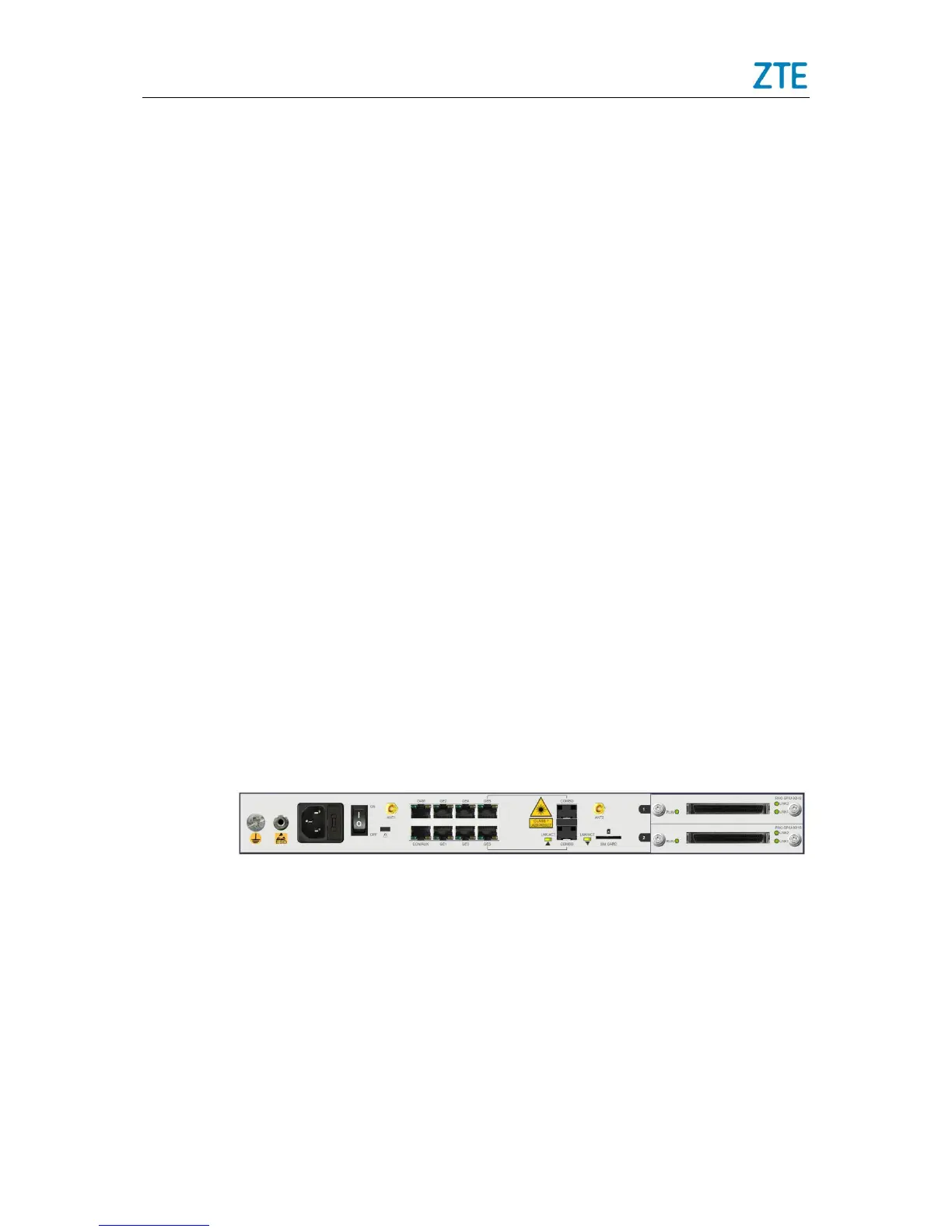

Figure 4-7 The Front View of the ZXR10 1800-2S

Zte ZXR10 ZSR V2 Series Specifications

General

Series	ZXR10 ZSR V2 Series
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Ports	GE, 10GE
Storage Humidity	5% to 95% (non-condensing)
