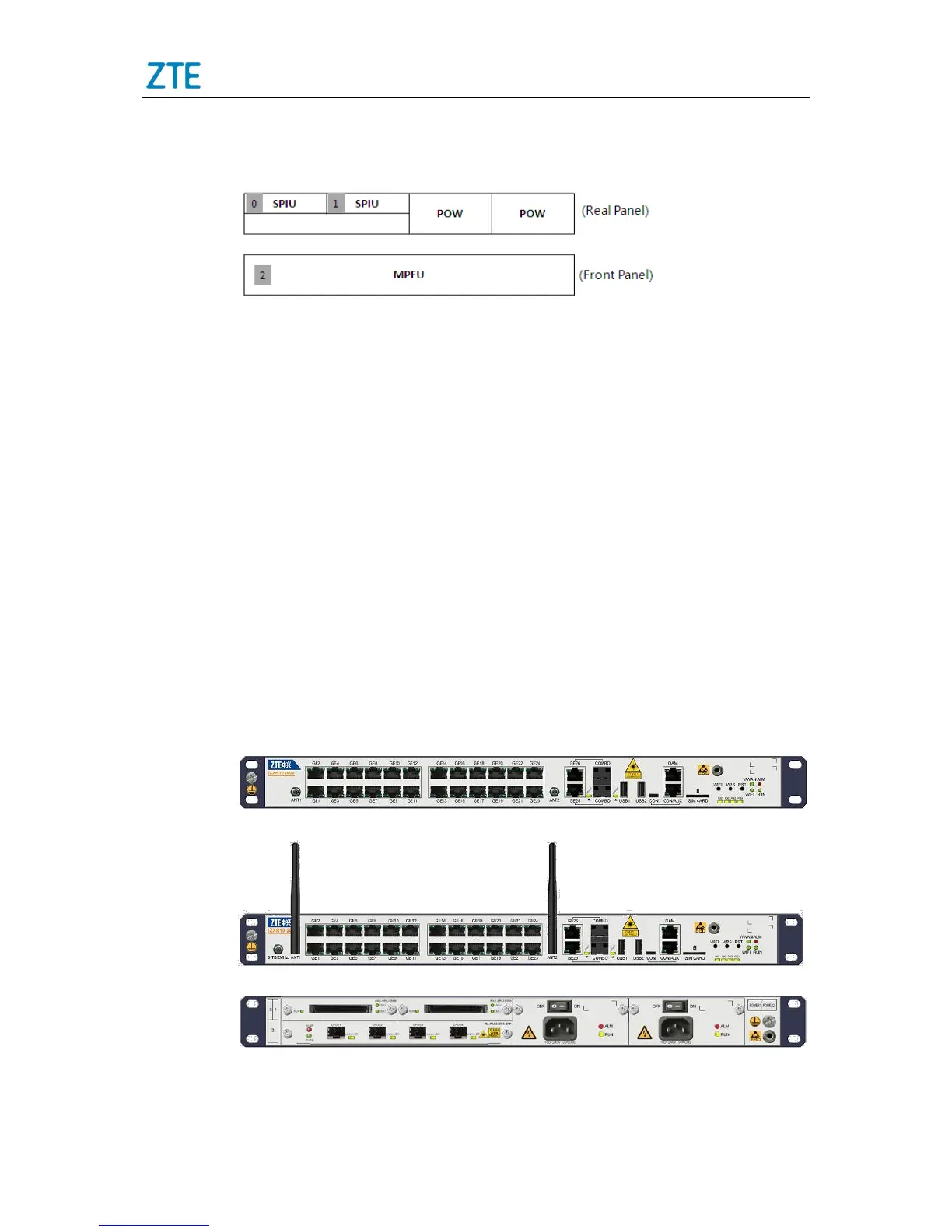

Figure 4-12 The Ichnography of the ZXR10 1800-2E/2E(G) Architecture
With horizontal slots, ZXR10 1800-2E/2E(G) is designed with 3 service slots, in which the
number 0-1 slots are for SPIUs, and number 2 is for MPFU.
According to the size, the ZXR10 1800-2E/2E(G) supports SPIU.
 SPIU types: This is general-speed interface board, which bandwidth is 1 Gbps. Size
(width x height x deep) is: 77 mm x 20 mm x 182 mm, in which SPIU takes up 0 or 1
slots.
4.1.5 The Appearance of ZXR10 2800-3E/3E(G)
The chassis of 2800-3E/3E(G) is 1U (1U=44mm). The size of the device is 442mm (W)
x44(H) x200mm (D). The front view of the ZXR10 2800-3E/3E(G) is as shown in the
figure.
Figure 4-13 The Front and Real Panel of the ZXR10 2800-3E/3E(G)

Zte ZXR10 ZSR V2 Series Specifications

General

Series	ZXR10 ZSR V2 Series
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Ports	GE, 10GE
Storage Humidity	5% to 95% (non-condensing)
