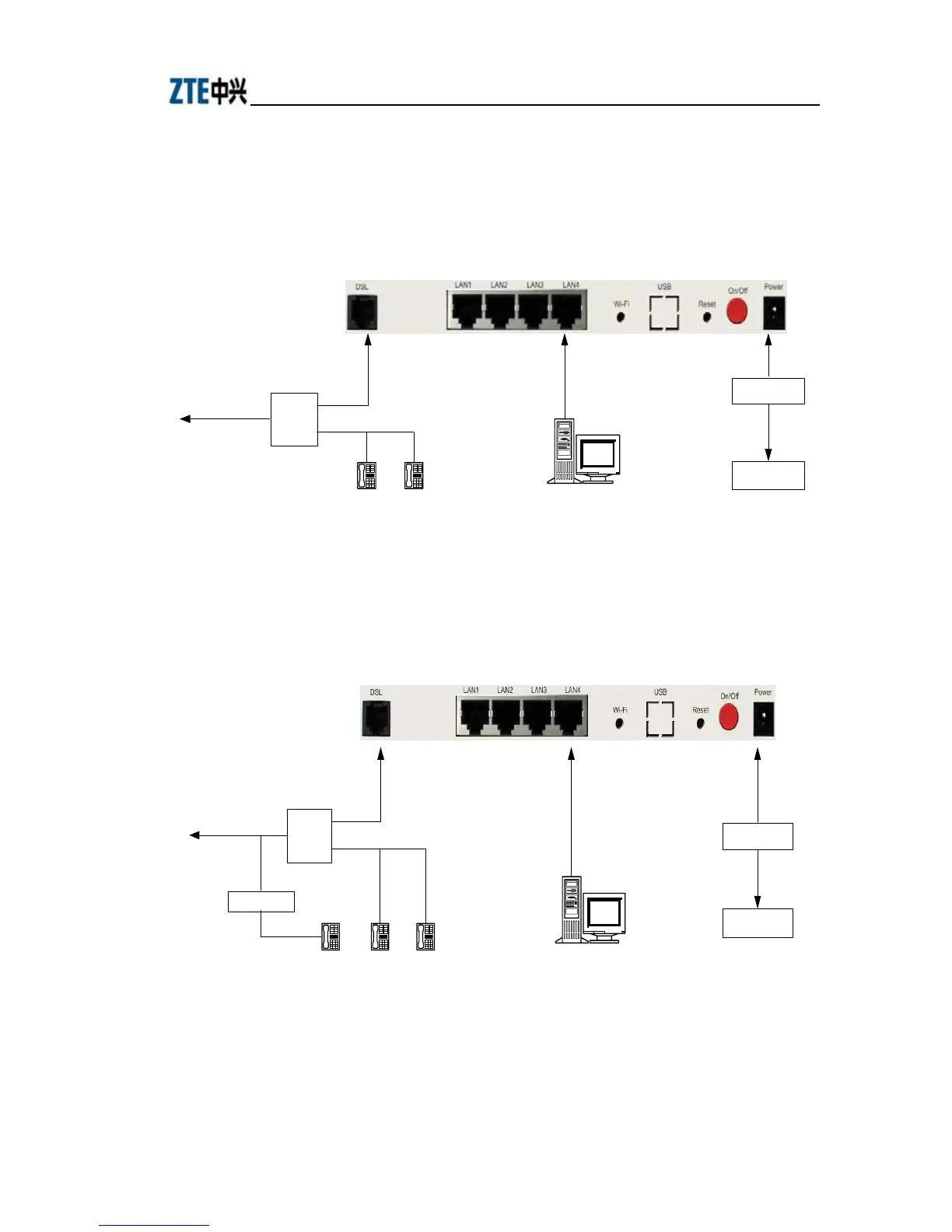

FIGURE 2 Installation sample 1: When the splitter is
installed on the telephone line port
LINE
MODEM
PHONE
RJ-45
Line with
ADSL Service
RJ-11
Splitter
PC
PHONEPHONE
Power Adapter
Power Outlet
FIGURE 3 Installation sample 2: When the Splitter is
Installed near the Modem
LINE
MODEM
PHONE
RJ- 45
Line with
ADSL Service
RJ-11
Splitter
PC
PHONEPHONE
Power Adapter
Power Outlet
MicroFilter
PHONE
11
