Housing and display orientation
To improve field access to the wiring and viewing of the display, the transmitter housing and display can be rotated up to 360°.
Transmitter housing rotation
To rotate the transmitter housing:
1. Unscrew the housing stop-screw approximately one rotation (do not remove the screw).
IMPORTANT NOTE: A stop prevents the housing from being turned too far.
2. Rotate the 266 transmitter to the desired position.
3. Retighten the screw once the desired position has been reached (Figure 18).

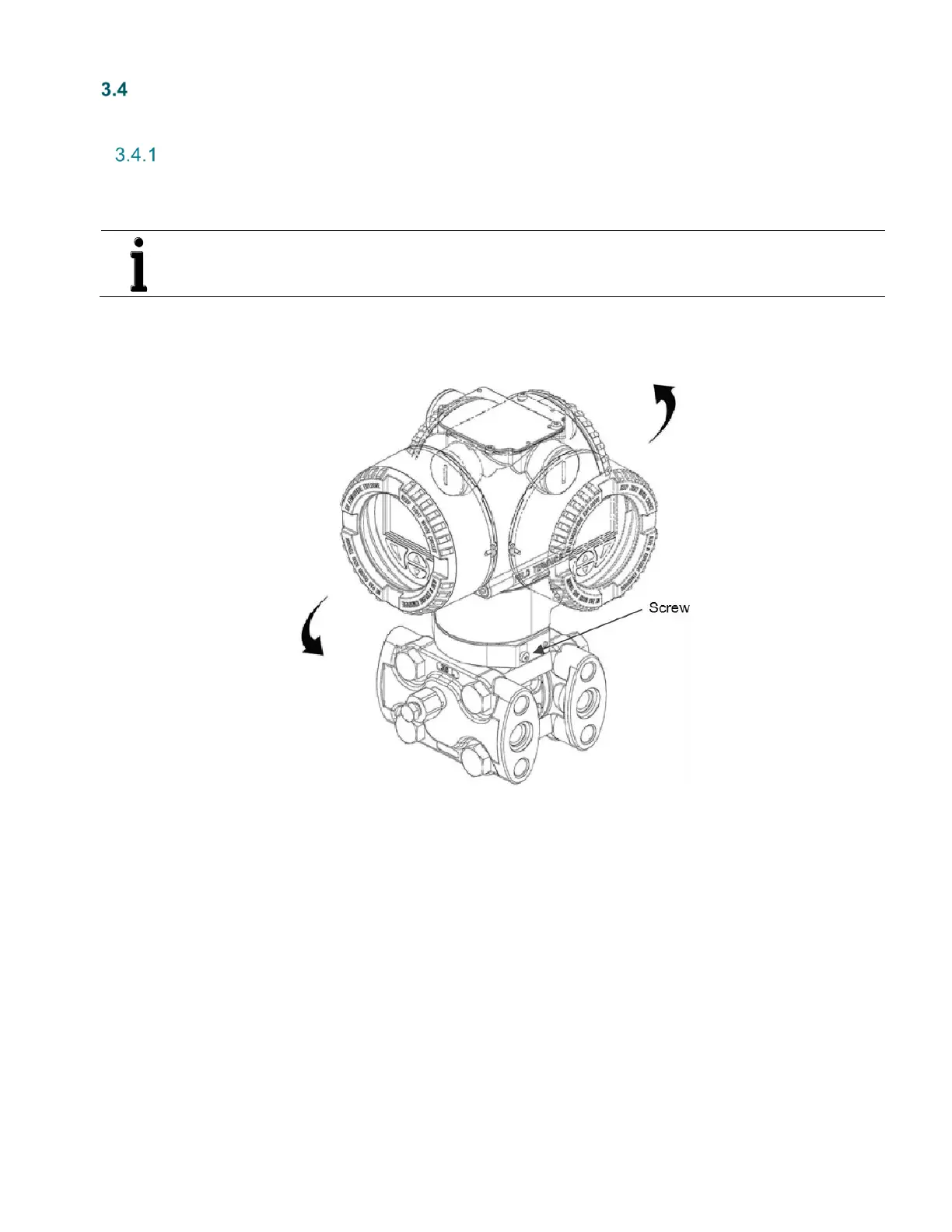

Figure 18: Transmitter housing rotation and stop-screw
