09 OPERATION

3BHS213401 E01 REV H ACS1000 AIR-COOLED USER MANUAL 116/184

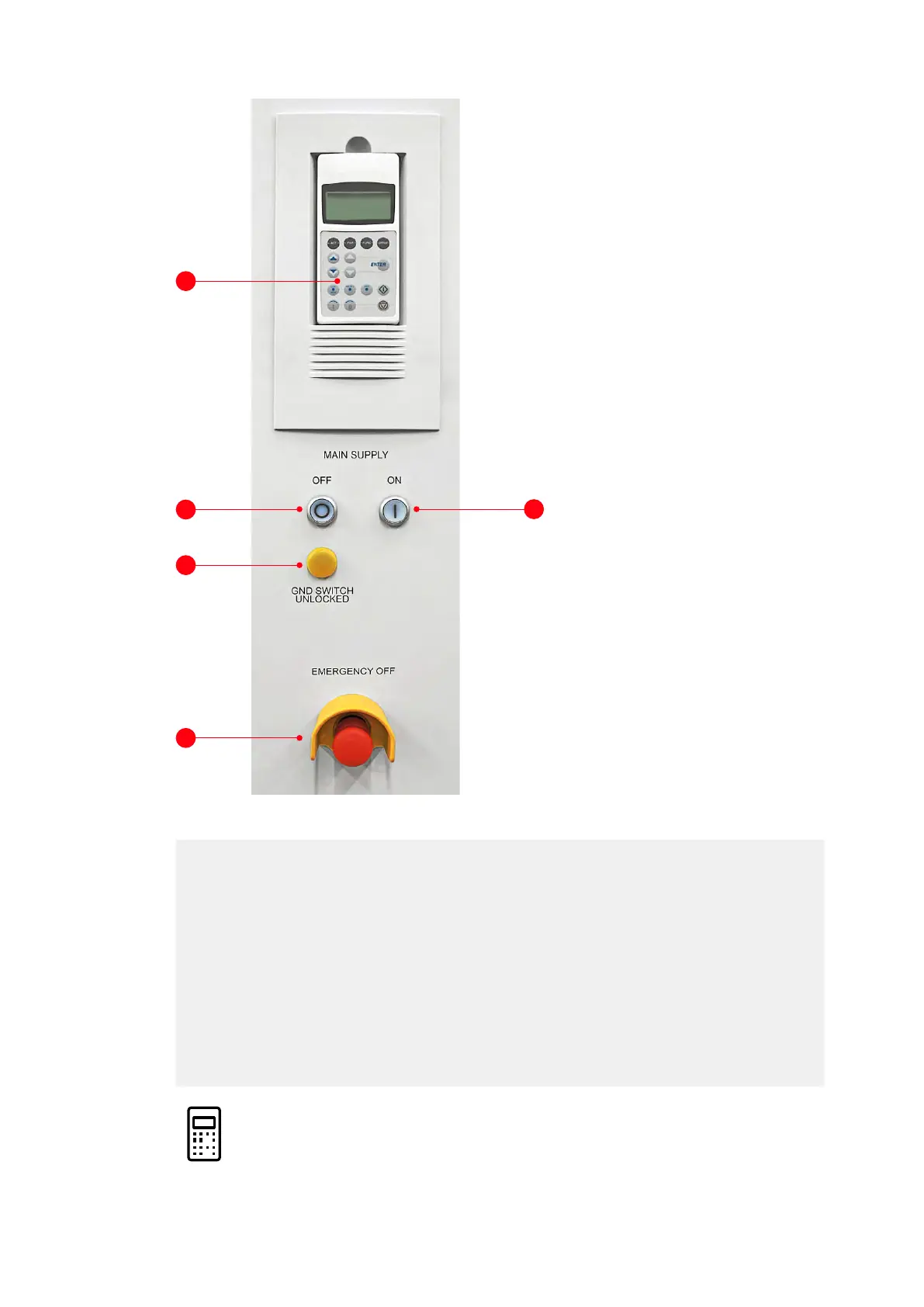

Figure 9-1: Local operator panel

(1) CDP control panel:

- Starts and stops the motor

- Displays status messages

- Displays alarm and fault messages of the drive

and monitored foreign equipment

- Resets alarm and fault messages

(2) Main supply off:

- Illuminated pushbutton opens the main

circuit breaker

(3) Main supply on:

- Illuminated pushbutton charges the DC link

and closes the main circuit breaker

(4) Grounding switch unlocked:

- Lights up to indicate that the grounding

switch of the drive can be turned to the

grounded or ungrounded position

(5) Emergency-off:

- Latching pushbutton, prevents starting when

pressed at standstill of the drive

- Main circuit breaker opens immediately and

DC link discharges when pressed during

operation of the drive

For more information, see “10 CDP control panel” on page 127.
