07 ELECTRICAL INSTALLATION
3BHS213401 E01 REV H ACS1000 AIR-COOLED USER MANUAL 88/184
7.4.3 Cable entry with type 2 sealing modules
- Usage: auxiliary power cables and control cables
- Included in delivery: frame (1 in Fig. 7-4)
- Not included in delivery: tools, accessories and EMC sealing modules (2 in Fig. 7-4)
- Supplier: Roxtec AB (www.roxtec.com)

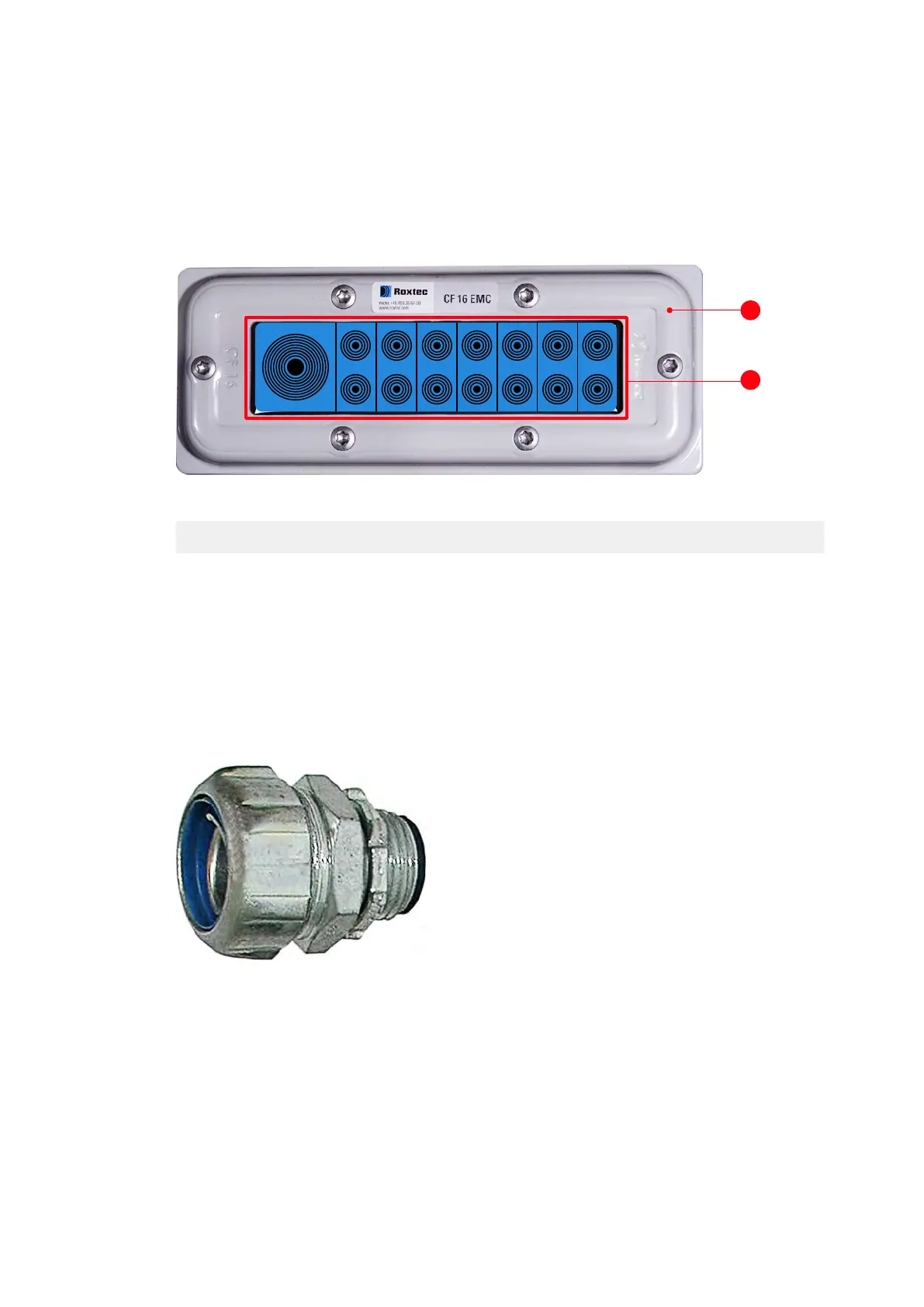

Figure 7-4: Type 2 sealing modules example
7.4.4 Cable entry with cable glands
- Usage:
• Power cables, ground cables and bonding conductors
• Auxiliary power cables and control cables
- Included in delivery: undrilled plate for cable glands
- Not included in delivery: cable glands, tools and accessories
Figure 7-5: Cable entry with cable glands
(1) Frame (2) EMC sealing modules
