10 CDP CONTROL PANEL
3BHS213401 E01 REV H ACS1000 AIR-COOLED USER MANUAL 140/184
Some parameter values cannot be changed while the drive is running. If tried, the following
warning displays.
10.3.3.1.1 Control panel overview

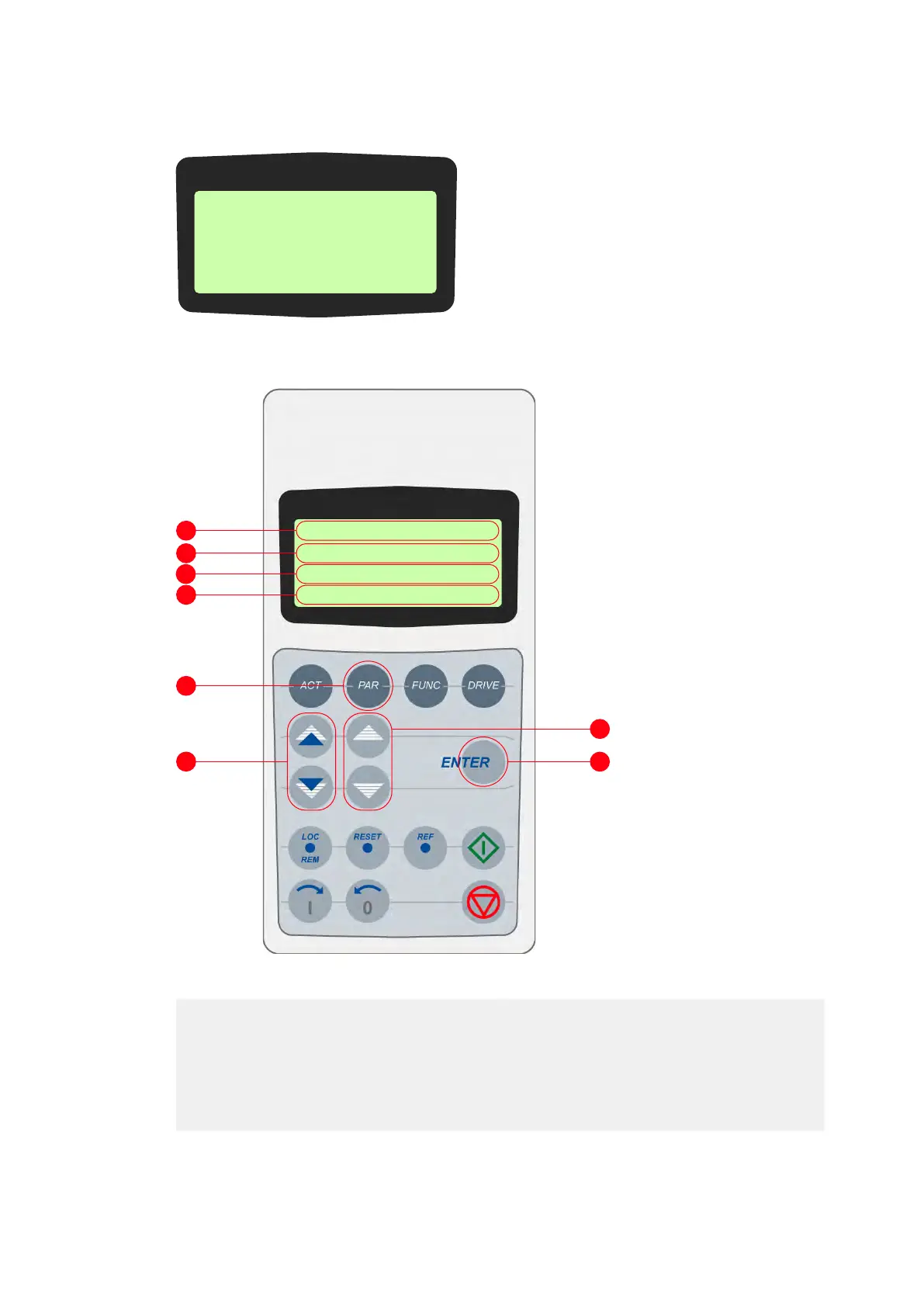

Figure 10-3: Control panel - Parameters mode
** Warning **
Write Access Denied
Parameter Setting
Not Posssible
(1) Status line
(2) Group number and name
(3) Parameter number and name
(4) Parameter value
(5) Selection key for parameters mode
(6) Fast navigation key for selecting a parameter
group (and a parameter value)
(7) Slow navigation key for selecting a parameter
(and a parameter value)
(8) Enter key for confirming the selection
1
2
3
4
5
6
7
8
1 L -> 600.0 rpm 0
75 OPTION MODULES
01 IOEC3 OptionBoard
YES

ABB ACS1000 Specifications

General

Type	Medium Voltage AC Drive
Power Range	315 kW to 5000 kW
Efficiency	Up to 98%
Output Voltage	0 to Input Voltage
Cooling	Air or water-cooled
Enclosure	IP54
Communication Protocols	Modbus, Profibus, Ethernet/IP
