10 CDP CONTROL PANEL
3BHS213401 E01 REV H ACS1000 AIR-COOLED USER MANUAL 145/184

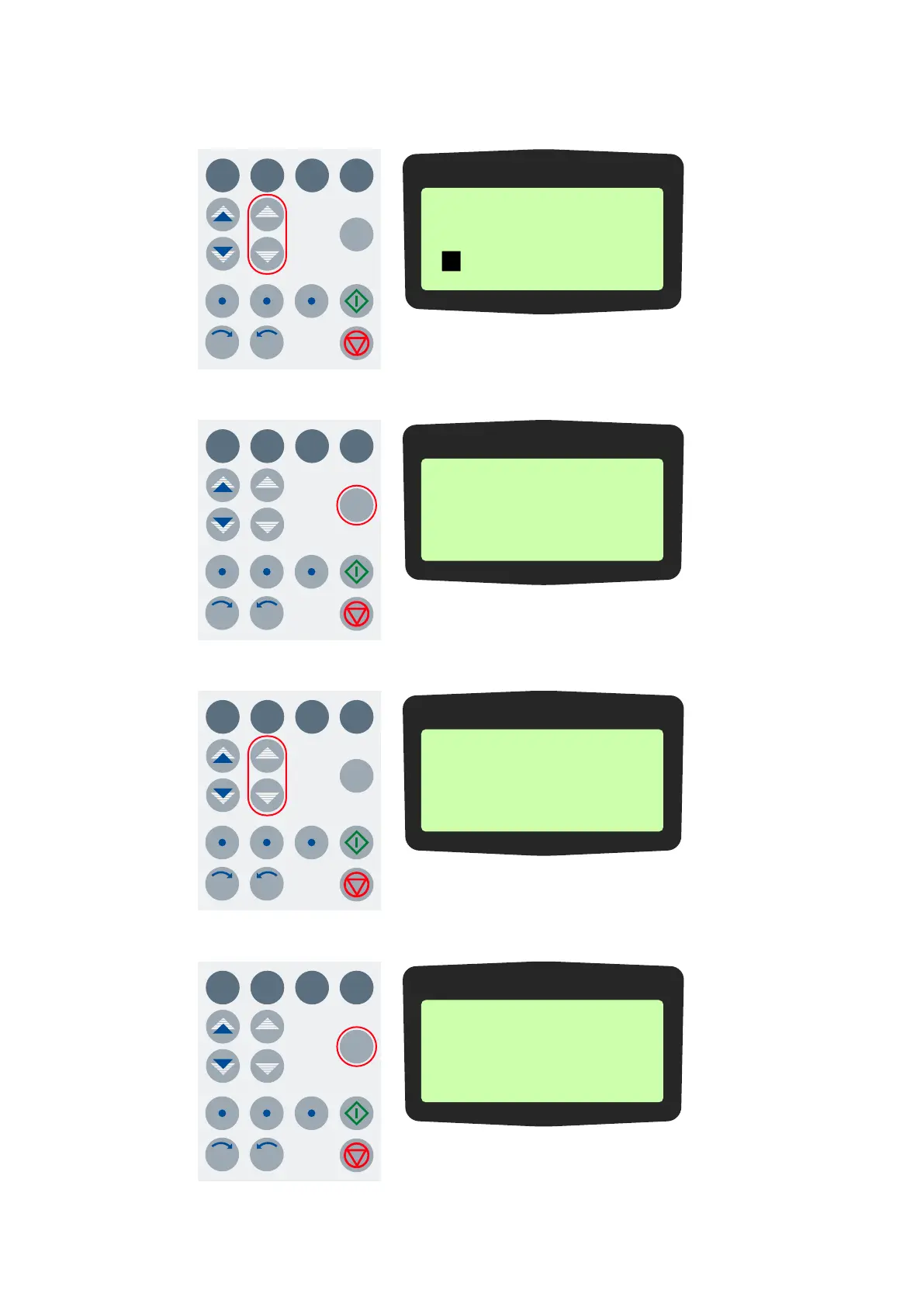

2. To select the contrast adjustment function, press the slow navigation keys until the
blinking cursor reaches the CONTRAST line.
3. Press the ENTER key.
4. To change the contrast value, press a slow navigation key.
5. To confirm the selection and to return to the actual signals display, press the ENTER key.
1 L -> 0.0 rpm 0
UPLOAD <= <=
DOWNLOAD => =>
C ONTRAST 4
ACT PAR FUNC DRIVE
LOC
I0
RESET REF
ENTER
REM
1 L -> 0.0 rpm 0
CONTRAST [4]
ACT PAR FUNC DRIVE
LOC
I0
RESET REF
ENTER
REM
1 L -> 0.0 rpm 0
CONTRAST [6]
ACT PAR FUNC DRIVE
LOC
I0
RESET REF
ENTER
REM
1 L -> 0.0 rpm 0
UPLOAD <= <=
DOWNLOAD => =>
CONTRAST 6
ACT PAR FUNC DRIVE
LOC
I0
RESET REF
ENTER
REM

ABB ACS1000 Specifications

General

Type	Medium Voltage AC Drive
Power Range	315 kW to 5000 kW
Efficiency	Up to 98%
Output Voltage	0 to Input Voltage
Cooling	Air or water-cooled
Enclosure	IP54
Communication Protocols	Modbus, Profibus, Ethernet/IP
