ABB ACS800-11 User Manual

Electrical installation
63
Connecting the control cables
Lead the cable through the control cable entry (1).
Connect the control cables as described below. Connect the conductors to the
appropriate detachable terminals of the RMIO board [refer to chapter Motor control
and I/O board (RMIO)]. Tighten the screws to secure the connection.
Terminals
Detachable connection terminals (pull up)
Optional module 1
Optional module 2
Control panel
Control cable
grounding: see
section 360
degrees
grounding
DDCS communication module: RDCO.
Channel CH1 is used for the internal communication
between the line-side and motor-side converters.

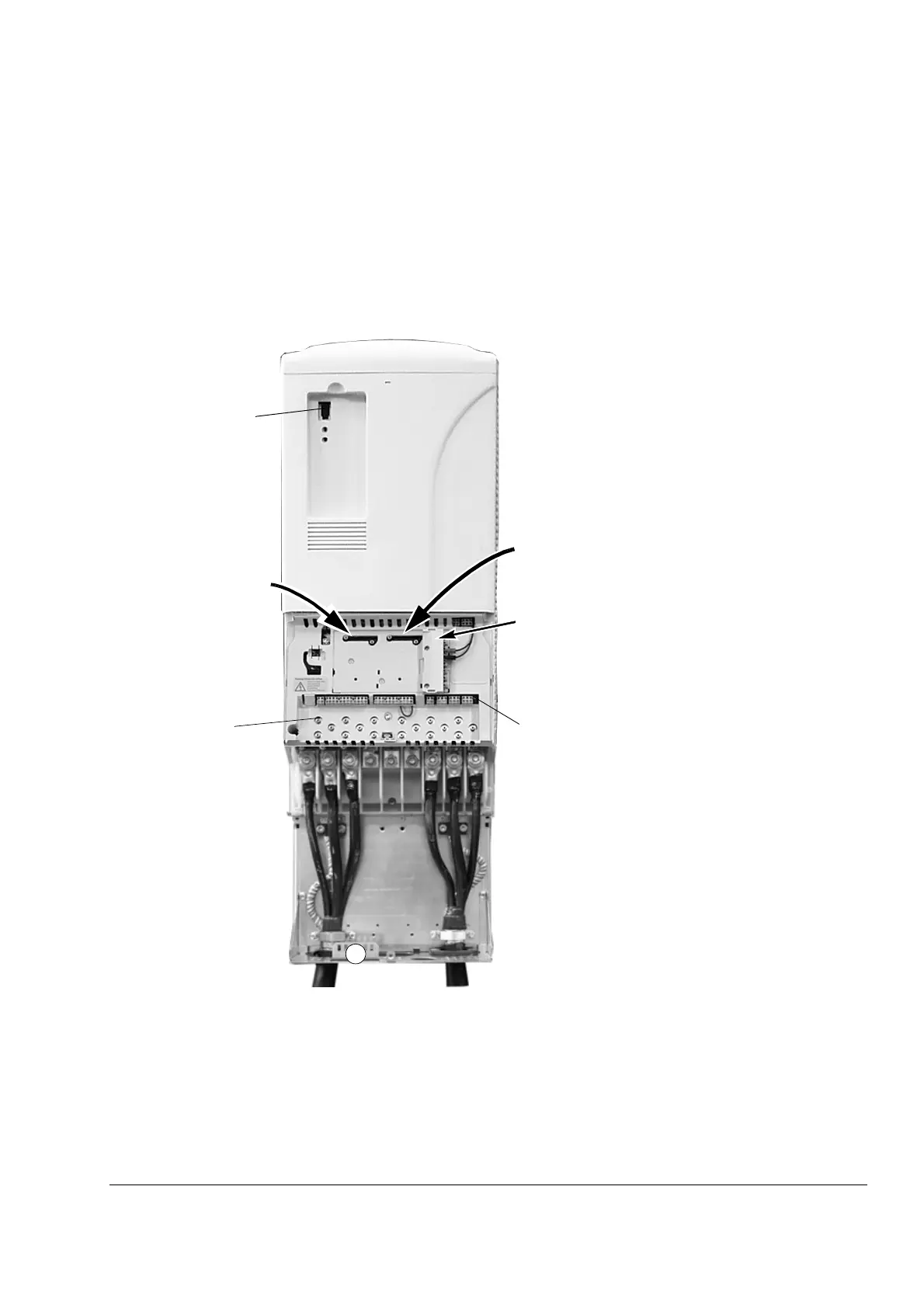

View of frame size R6
1
