Mechanical installation
35

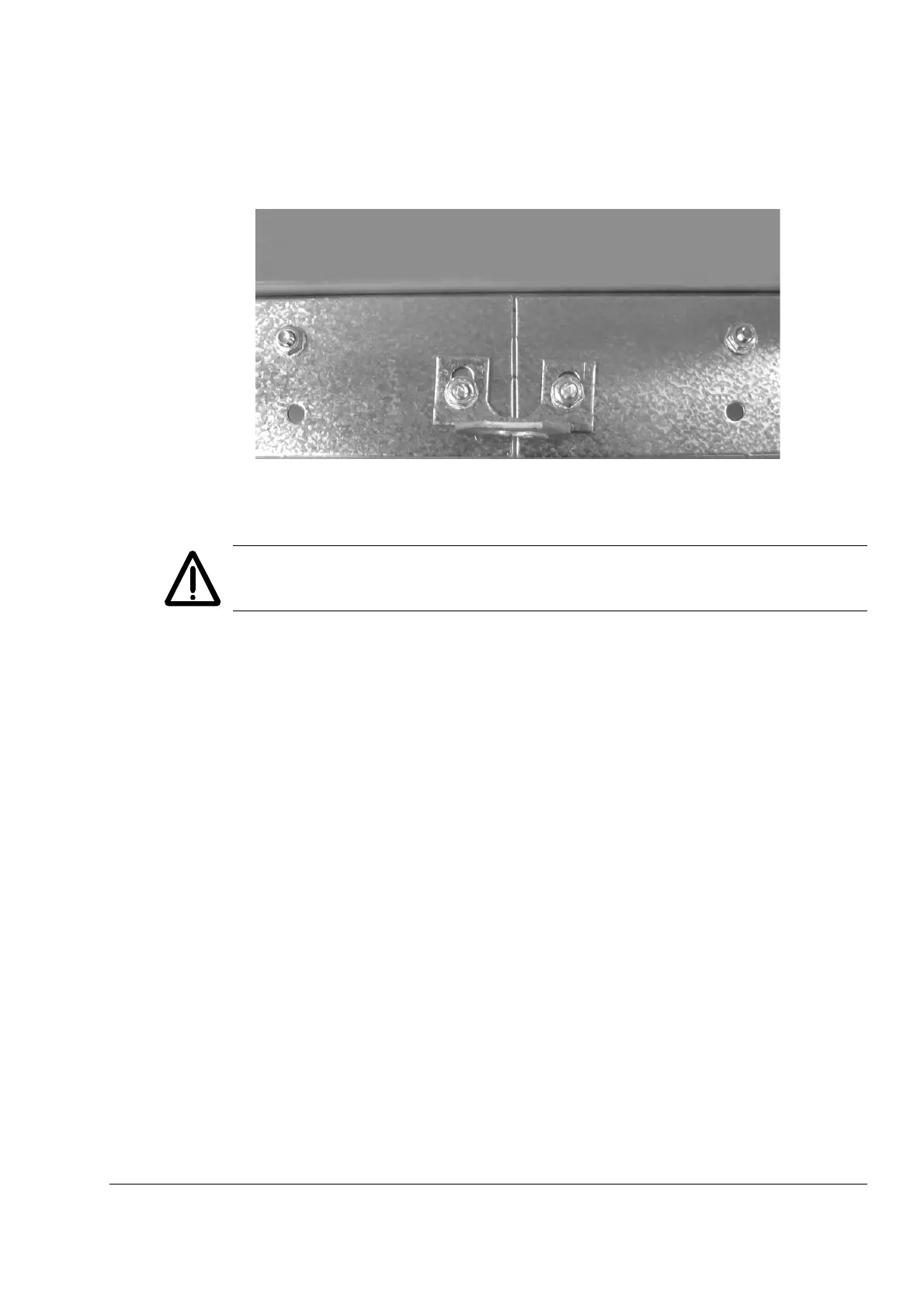

8. Join the collars by attaching lifting lugs on both sides. Attach further lifting lugs as
needed.
9. Use the drawing below to cut the hole in the duct. Fasten the module to the edges
using screws.
WARNING: With the kit attached to the drive module, do not lift the module by one
lifting lug only. Always use at least two lifting lugs.
Note: If the drive is exposed to vibration, it must be fastened also by the standard
mounting holes on the heat sink.
