Electrical installation
59

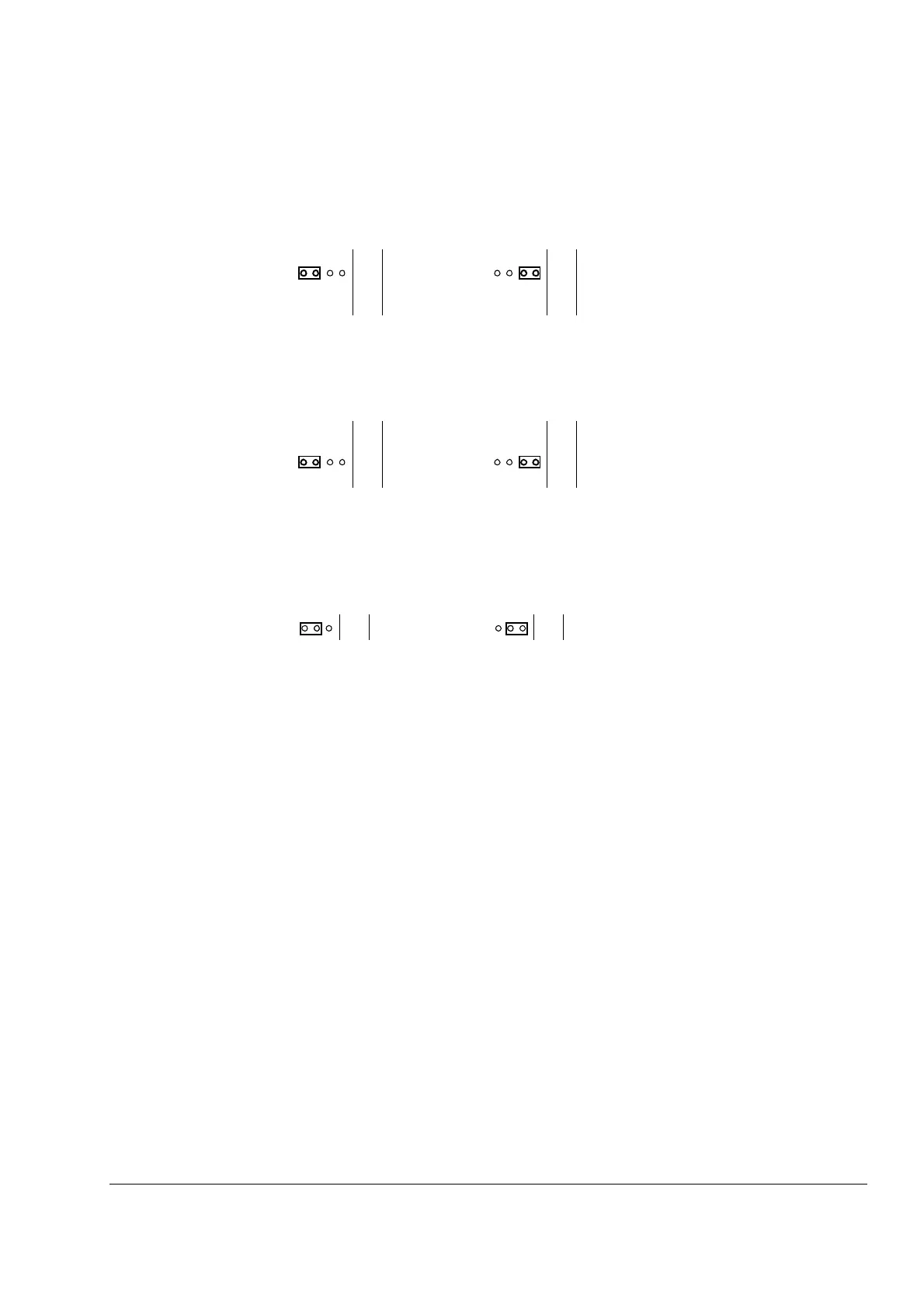

Jumpers
J1 – Determines whether Analogue input AI1 is used as a current or voltage input.
J2 – Determines whether Analogue input AI2 is used as a current or voltage input.
J3 – Drive-to-drive link termination. Must be set to the ON position when the drive is
the last unit on the link.
AI1
AI2
8
7
AI1
AI2
8
7
Current Voltage
AI1
AI2
8
7
AI1
AI2
8
7
Current Voltage
T
Termination ON Termination OFF
T
