ABB REF542plus User Manual

27
9. Viewing events
REF542plus records the last 30 protection events (start, trips, block and
other). This internal memory is managed as a circular buffer, for example the
31st event overwrites the 1st oldest one. In case of a power loss, events are
kept because they are stored in the non-volatile memory.
For each event, the following information is recorded: involved protection
function, event type, relevant measurement (current, voltage, frequency), date
and time (up to milliseconds). Events are displayed using the full screen; the
single line diagram is thus not visible.
A051344

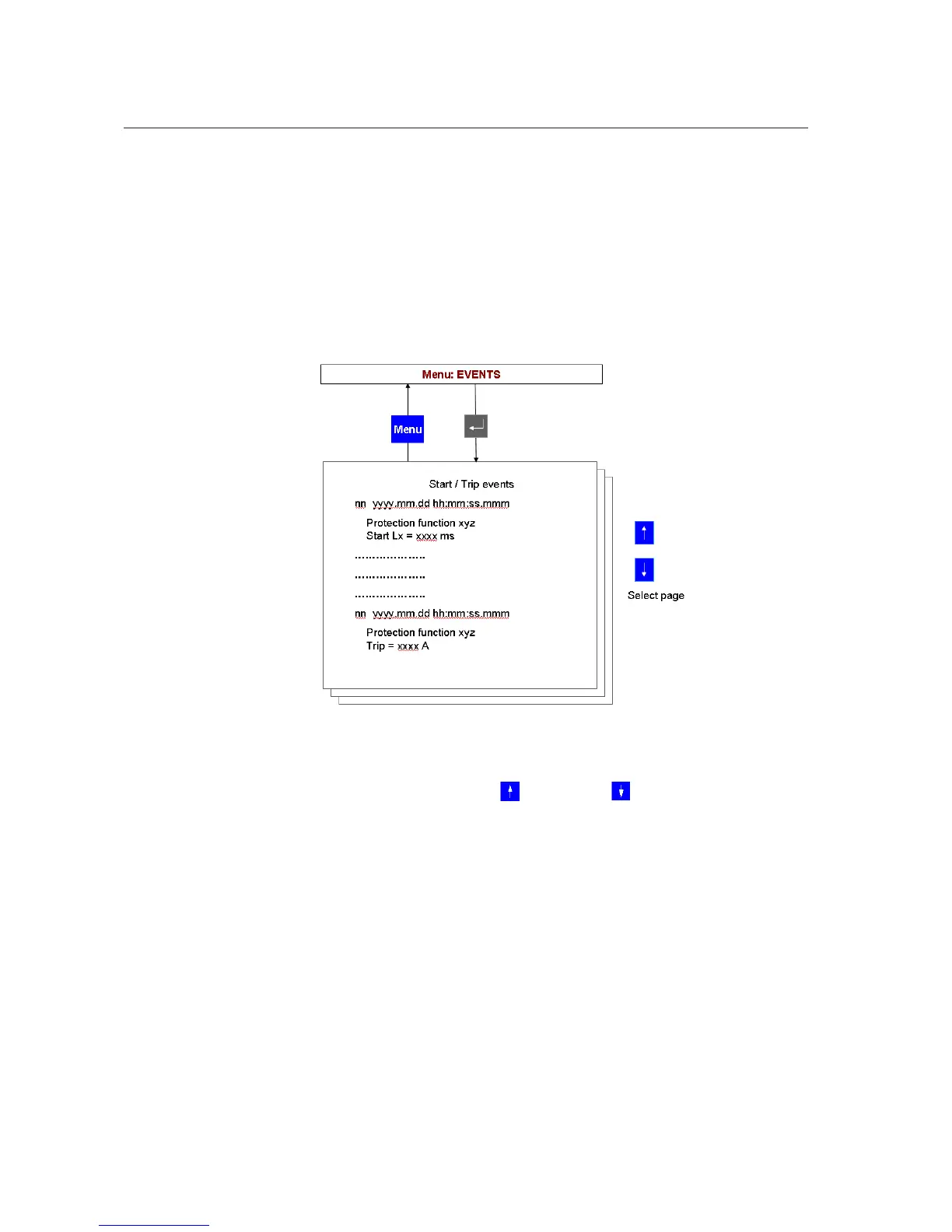

Fig. 9.-1 Events display
To display the protection events, select the Start/Trip menu with the
navigation buttons. Use UP
and DOWN to browse through the
events.
1MRS755869
Multifunction Protection and Switchgear Control
Unit
Operator's manual
REF542plus
