1MDU07212-YN Rev. C Section 5
Use of LHMI
REF601 / REJ601 39
Application Manual

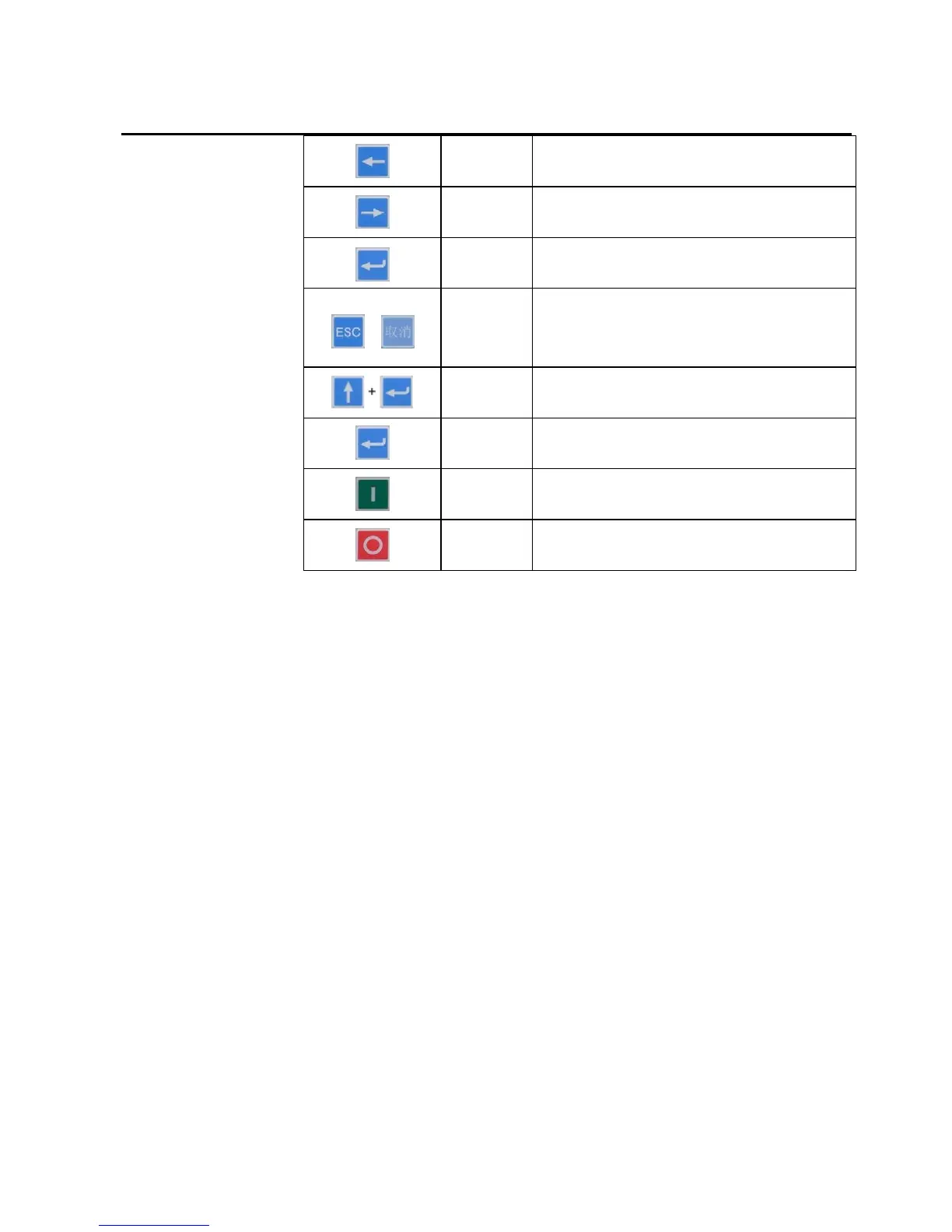

Back
Used for going to higher level of menu item from its lower
level submenu.
Next
Used for going to lower level submenu from higher level
menu.
Enter Used for saving of edited parameter value.
Escape/Cancel
a) Used for discarding changed parameter value in edit
mode
b) Used for going back to main menu from any level of
menu navigation. 2
nd
pressing “ESC” will lead to default
view.
Reset
Press key combination Up and Enter key together to reset
the relay from LHMI as well to reset trip LEDs
Edit Press key Enter to edit the relay parameter from LHMI
Breaker Close Hotkey for providing Breaker Close command.
Breaker Open Hotkey for providing Breaker Open command.
