62
1MRS755014
Profibus-DPV1/SPA Gateway
Installation and Commissioning Manual
SPA-ZC 302
8.3. Self-diagnosis
8.3.1. LED indicators

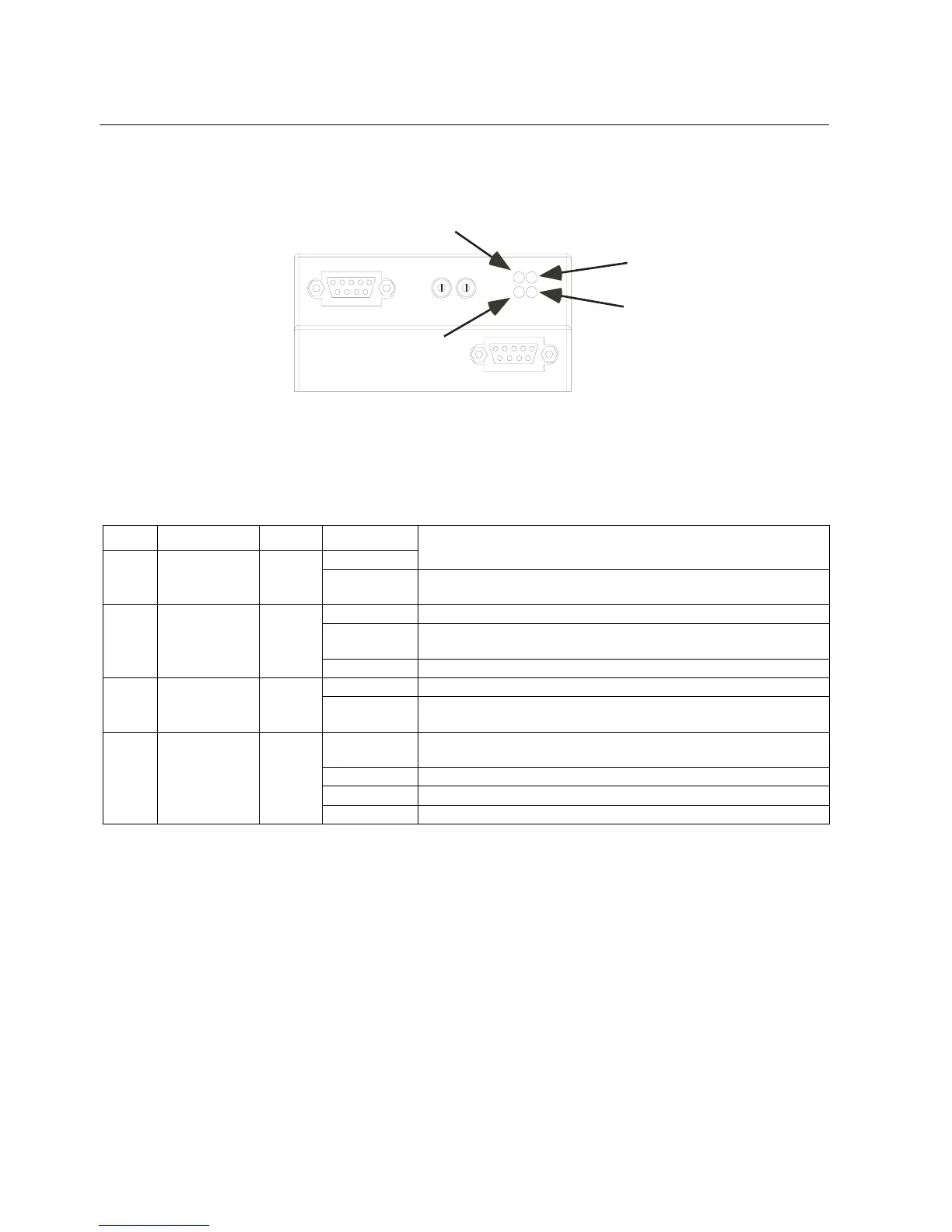

Fig. 8.3.1.-1 Profibus-DPV1 LED indicators
See Table 8.3.1-1 for the description of the Profibus LED indicators pictured in
Fig. 8.3.1.-1 .
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
1
2
3
4
ProfibusLED_a
Table 8.3.1-1 Profibus-DPV1 LED indicator
LED no Description Colour State Indicates
On A DPV1 request is currently being executed.
1 Acyclic
Traffic
Green Off No Power to the module.
No DPV1 request is currently being executed.
On Bus is on-line and data exchange is possible.
2 Fieldbus
ON-line
Green Off No power to the module.
Bus is not on-line.
Flashing 1 Hz Clear mode. The Profibus master has initiated a clear command.
On Bus is off-line.
3 Fieldbus
OFF-line
Red Off No power to the module.
Bus is NOT off-line
Off No power to the module.
No diagnostics is present.
4 Fieldbus Red Flashing 1 Hz Error in configuration data.
Diagnostics Flashing 2 Hz Error in parameter data.
Flashing 4 Hz Error in initialising of the Profibus communication ASIC.
